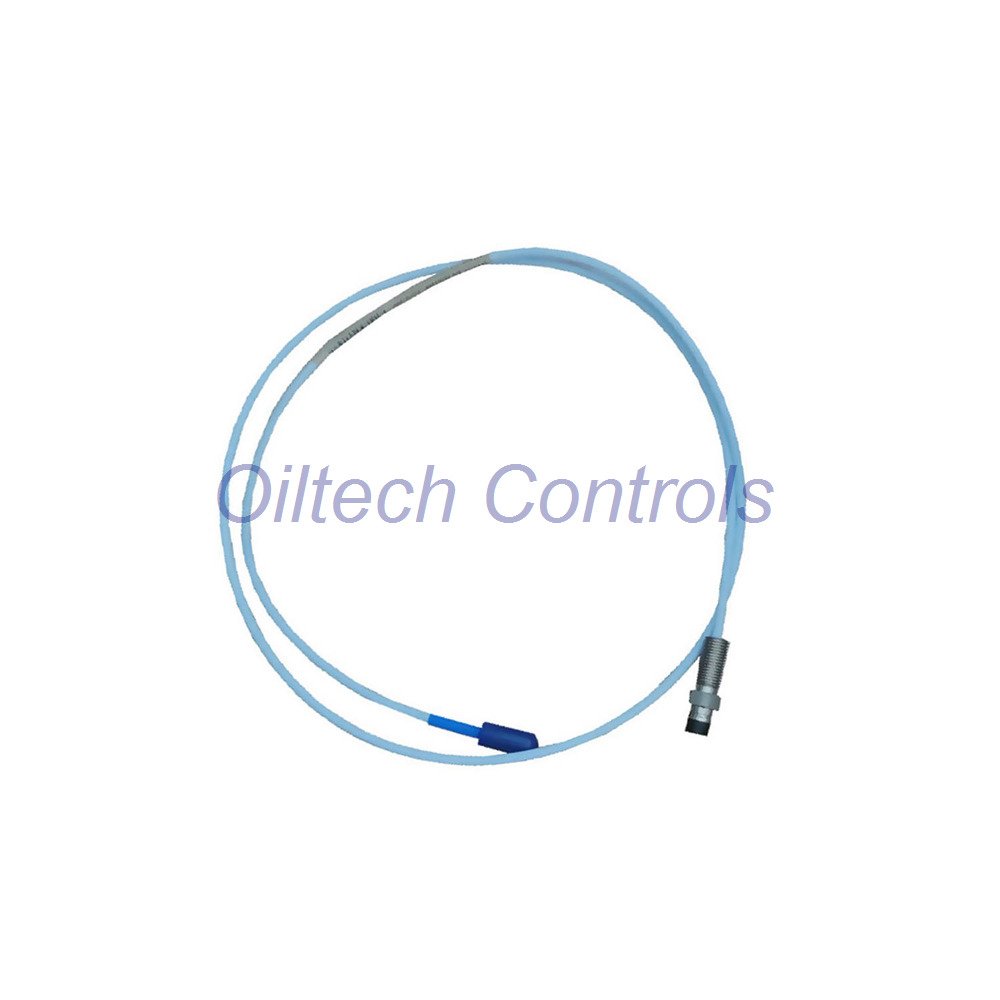

Bently Nevada 330171-00-32-05-01-05 Short Cable 5mm Probe
- Manufacturer: Bently Nevada
- Exact Model: 330171-00-32-05-01-05
- Probe Family: 3300 5mm Proximity Probes
- Build Origin: USA
- Main Role: Non contact shaft vibration sensing
- Best Use: Tight space machine locations
Quick Value Highlights
- Very short 0.5 m cable for compact installs
- High noise immunity triaxial cable
- Strong PPS probe tip
- Corrosion safe stainless case
- Stable output with long service life
- Fast ClickLoc connector design
- Works with standard Bently systems
Configuration Tree
- 330171 Series Structure
- 330171 = 5mm eddy current probe
- 00 = Unthreaded length 0.0 in
- 32 = Case length 3.2 in
- 05 = Cable length 0.5 m
- 01 = Mini ClickLoc connector
- 05 = Multi agency approvals
Core Technical Data
- Brand: Bently Nevada
- Model: 330171-00-32-05-01-05
- Probe size: 5 mm diameter
- Thread: 1/4-28 UNF
- Max thread depth: 0.375 in
- Cable length: 0.5 meter
- Cable impedance: 75 ohm
- Cable type: FEP insulated triax
- Output resistance: 50 ohm
- Supply range: −17.5 to −26 Vdc
- Max current draw: 12 mA
- Supply drift: less than 2 mV per volt
- Reference gap: 1.27 mm setup
- Reference target: AISI 4140 steel
- DC resistance 0.5 m: 7.45 Ω ±0.50 Ω
- Response speed: suitable for high RPM shafts
- Resolution level: supports micron motion trend
- Linearity zone: optimized near mid gap
Mechanical and Material Data
- Tip material: PPS polymer
- Case material: AISI 304 stainless steel
- Connector metal: Gold plated alloy
- Pull strength: 222 N cable joint
- Case torque: 5.1 N·m typical
- Case torque max: 7.3 N·m limit
- Connector torque max: 0.565 N·m
- Min bend radius: 25.4 mm
Environment Limits
- Working temperature: −35°C to +177°C
- Do not run below −34°C for long time
- High class rating up to +232°C by code
- Magnetic field test to 300 Gauss
- Low field output error
EMI and Signal Stability
- Shielded cable reduces noise
- Stable under 60 Hz fields
- Low gap drift with voltage change
- Clean signal for monitoring cards
Mounting Notes
- Use #3 or larger tap drill
- Keep thread depth within limit
- Set gap with feeler or voltage method
- Avoid side load on probe tip
- Lock cable near entry point
System Compatibility
- For 5mm Proximity Probes systems
- Works with Bently proximitor sensors
- Fits 3300 monitor racks
- Supports standard extension cables
Diagnostics and Use Cases
- Rotor vibration tracking
- Axial position check
- Bearing movement trend
- Startup and coastdown study
- Protection system feedback
Scope of Supply
- 1 × 330171 probe
- 1 × Connector protector
- 1 × Factory test mark
- 1 × Product label
Warranty and Logistics
- 12 months warranty
- Tested before shipment
- Courier: FedEx, UPS, DHL
- Global express delivery
Technical FAQ
- Is 0.5 m cable too short for my machine
- Use it when junction box is very close.
- How do I check probe health fast
- Measure DC resistance and compare with spec.
- What gap gives best linear signal
- Mid range gap gives best linear zone.
- Can I extend this probe with any cable
- Use matched extension cable only.
- How to select probe for high heat area
- Check temperature class and tip material.
