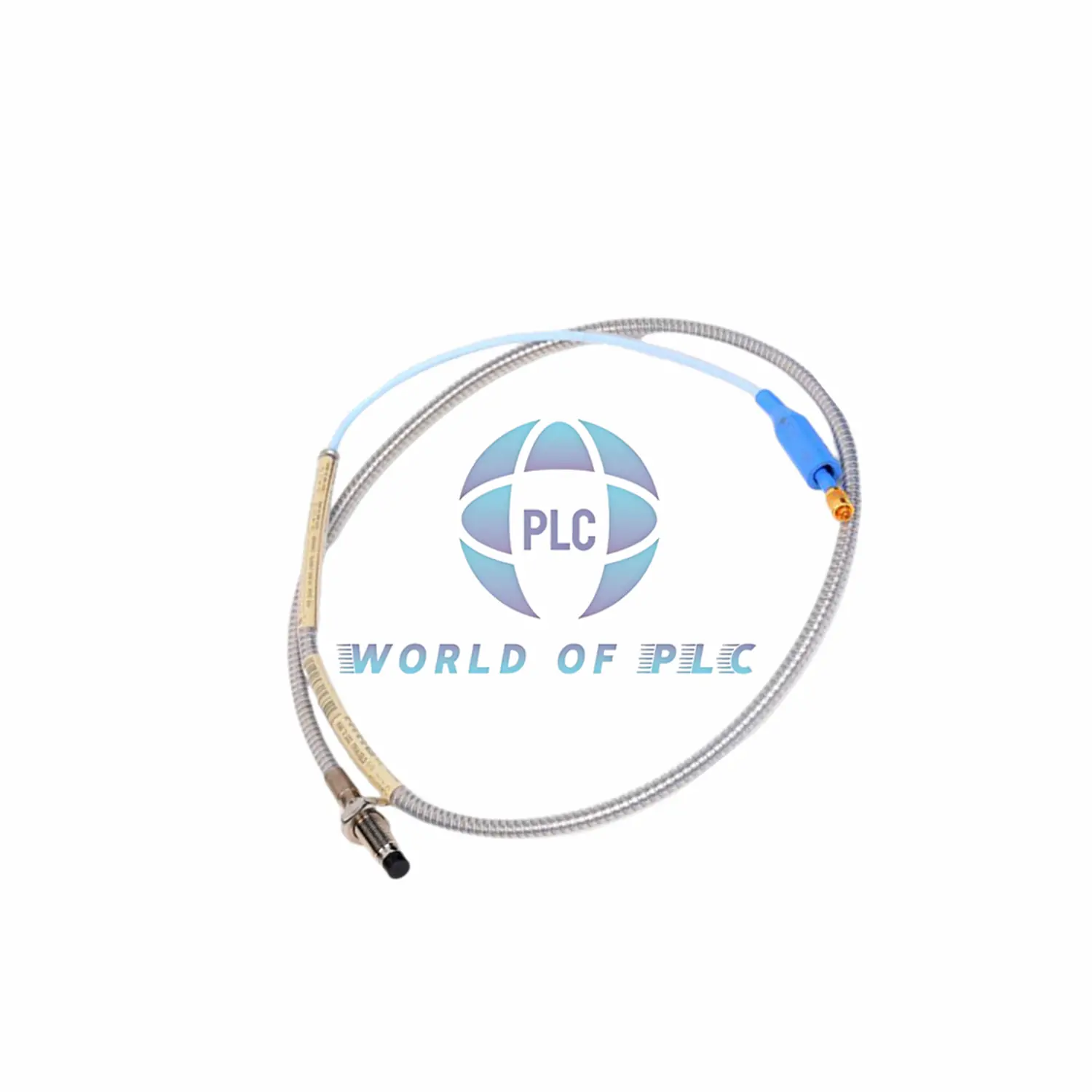

Bently Nevada 330172-12-23-10-01-05 Industrial Vibration Probe
Complete Model Breakdown
- 330172 – 5mm armored probe series
- 12 – 1.2″ unthreaded section
- 23 – 2.3″ total case length
- 10 – 1.0 meter cable
- 01 – Protected ClickLoc connector
- 05 – Multi-certified approvals
Key Features
- Heavy-duty 304 stainless steel construction
- 1/4-28 UNF threaded connection
- Chemical-resistant PPS sensing tip
- Armored cable protection
- Gold-plated connectors for reliability
Performance Specifications
- Voltage range: -17.5V to -26V DC
- Current draw: <12mA
- Output impedance: 50Ω
- Cable resistance: 7.59Ω ±0.50
- Temperature range: -35°C to +177°C
- Max thread depth: 0.375″
- Weight: 0.323kg
Installation Guide
- Use #3 drill bit for mounting hole
- Apply 45in-lb torque (max 65in-lb)
- Maintain 1″ minimum bend radius
- Keep away from extreme cold below -34°C
Technical FAQs
- What’s the cable material? FEP-insulated triaxial
- How durable is the connector? Rated for 50lbs pull force
- Can I use different cable lengths? Yes (0.5m to 9m options)
- What target material works best? AISI 4140 steel
- Why choose armored version? Better impact resistance
Shipping & Protection
- Express options: FedEx/UPS/DHL
- 12-month quality guarantee
