Bently Nevada 330173-07-11-10-02-00 Probe 330173 M8 Sensor

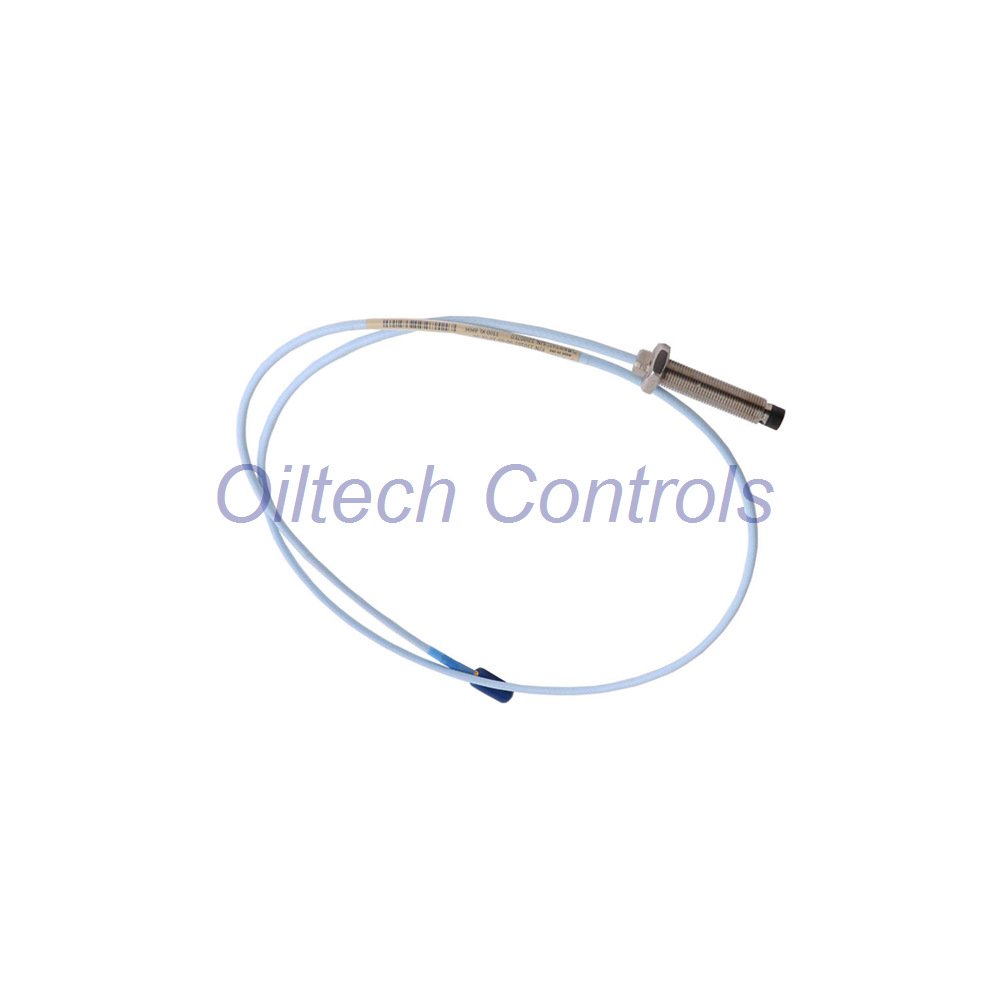

Bently Nevada 330173-07-11-10-02-00 Extended Body M8 5mm Probe

• Brand: Bently Nevada
• Model: 330173-07-11-10-02-00
• Series: 3300 5mm Proximity Probes
• Thread: M8 × 1 metric
• Cable: Standard, non armored
• Made in: USA

Why This Version Stands Out

• Long case for deep mount points
• 70 mm unthreaded reach section
• 110 mm overall case length
• Easy fit in recessed brackets
• Clean signal for protection systems
• Fast ClickLoc connector lock

Part Number Decode View

• 330173 Metric Probe Code
  • 330173 = 5mm metric probe type
  • 07 = Unthreaded length 70 mm
  • 11 = Case length 110 mm
  • 10 = Cable length 1.0 m
  • 02 = Mini coax ClickLoc connector
  • 00 = Approval not required

Measurement Capability

• Measures shaft vibration and gap
• Supports radial position reading
• Works for axial displacement trend
• Good for high speed rotors
• Used in continuous monitoring

Electrical Ratings

• Supply range: −17.5 to −26 Vdc
• Typical supply: −24 Vdc
• Max current: 12 mA
• Output resistance: 50 ohm
• Supply sensitivity: <2 mV per volt
• Reference gap: 1.27 mm
• Reference load: 10 kΩ
• Target metal: AISI 4140 steel
• DC resistance 1 m: 7.59 Ω ±0.50 Ω
• Signal form: analog voltage

Material and Build Layer

• Probe tip: PPS polymer
• Probe body: AISI 304 stainless steel
• Cable type: 75 Ω triax FEP
• Connector metal: Gold plated copper alloy
• Weight: 0.323 kg

Mechanical Strength Limits

• Thread size: M8 × 1
• Max thread engagement: 12 mm
• Install torque target: 5.1 N·m
• Install torque limit: 7.3 N·m
• Connector torque: 0.565 N·m max
• Tensile rating: 222 N
• Min bend radius: 25.4 mm

Temperature and Area Classes

• Operating temp: −35°C to +177°C
• Seal damage risk below −34°C
• High class support to +232°C
• T1 to T5 temperature classes
• EPL Ga, Gc, Dc options

EMI and Magnetic Field Behavior

• Tested at 60 Hz fields
• Up to 300 Gauss exposure
• Very small probe output shift
• Shielded cable path design

Installation Field Notes

• Use correct M8 × 1 tap tool
• Keep thread depth within spec
• Do not press probe tip
• Set gap with monitor reading
• Route cable away from VFD lines

System Pairing

• For 5mm Proximity Probes metric systems
• Matches Bently proximitor sensors
• Works with 3300 monitor modules
• Keep same electrical length set

Extra Product Selling Points

• Extended body design
• Better for deep bracket mounts
• Less need for spacers
• High corrosion resistance
• Stable long term drift value
• Low maintenance cost

Delivery Scope

• 1 × 330173 probe
• 1 × Connector protector
• 1 × Trace label
• 1 × Factory check tag

Warranty and Transport

• 12 months warranty
• Each probe tested before ship
• Ship by FedEx, UPS, DHL
• Fast export packing

Advanced FAQ

• When do I need a long case probe
• Use it when mount hole is deep.
• Will longer body change calibration
• No. Cable and system set calibration.
• How to choose metric or UNF thread
• Match the machine thread standard.
• What check before first startup
• Verify gap voltage and supply level.
• How to plan spare probe stock
• Keep same model and length code.
