Bently Nevada 3300 XL 11mm Proximity Probe – High-Performance Vibration Monitoring
Description

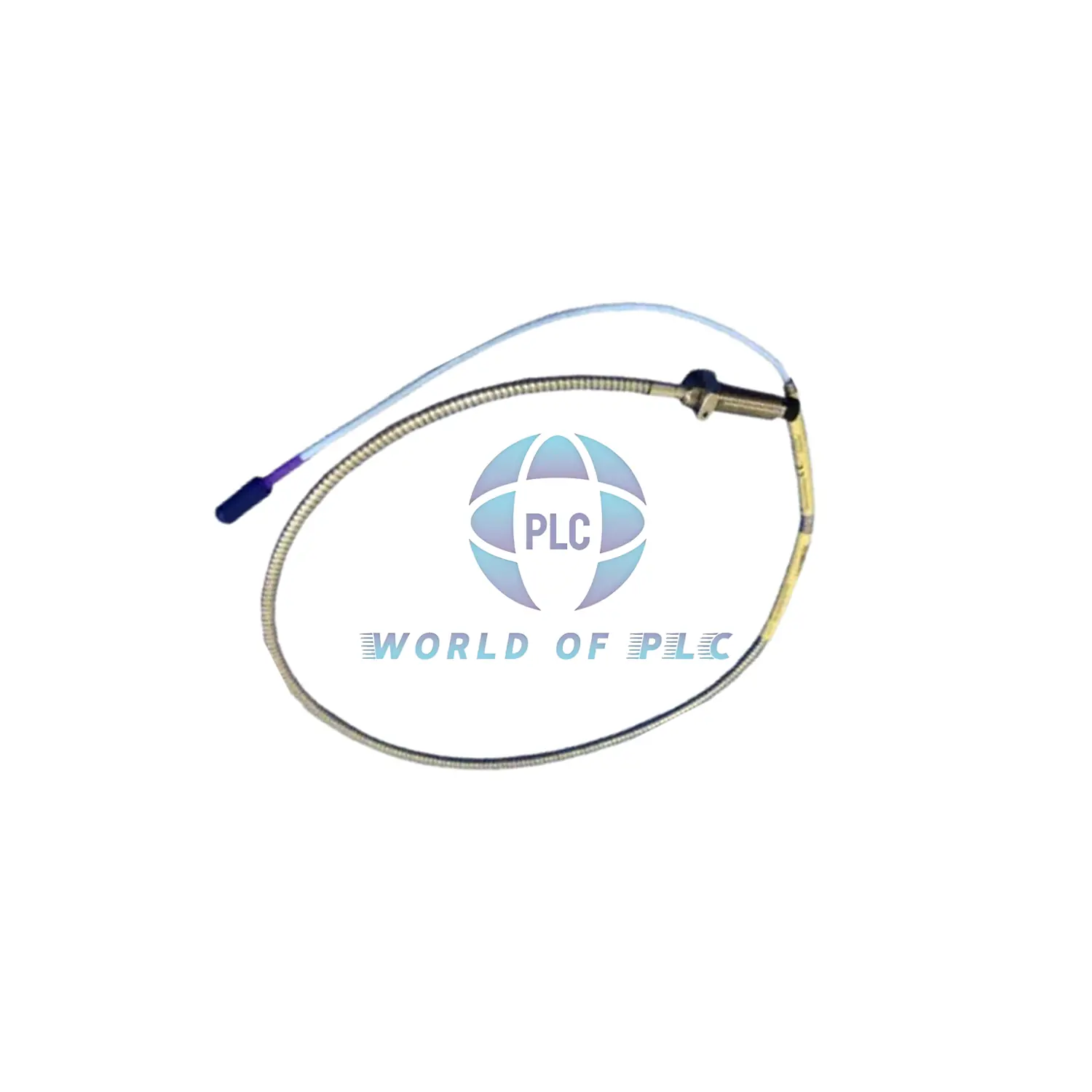

The Bently Nevada 330702-00-24-50-12-00 is a 3300 XL 11mm proximity probe designed for precise vibration and position measurement in industrial machinery. Featuring a 5.0-meter armored cable and PPS probe tip, it ensures durability in harsh environments. Compatible with 5-meter Proximitor sensors, this probe is ideal for critical asset monitoring.
Technical Data
- Brand: Bently Nevada
- Model: 3300 XL 11mm Probe (Full suffix: 330702-00-24-50-12-00)
- Thread: 1/2-20 UNF
- Unthreaded Length: 0 in (Option 00)
- Case Length: 2.4 in (Option 24)
- Cable Length: 5.0 meters (Option 50)
- Connector: Miniature coaxial ClickLoc with FluidLoc cable (Option 12)
- Probe Resistance: 7.2 ± 0.8 ohms (Center to Outer Conductor)
- Temperature Range: -51°C to +177°C
- Cable Material: 75 Ω triaxial, FEP-insulated
- Case Material: AISI 304 stainless steel
- Tip Material: Polyphenylene sulfide (PPS)
- Max Thread Torque: 15.2 N•m (Recommended)
- Bend Radius: 25.4 mm (Minimum)
Installation Guide
- Max thread engagement: 0.750 in (1/2-20 UNF).
- Recommended torque: 15.2 N•m (133 in•lb).
- Avoid temperatures below -34°C (30°F) to prevent seal damage.
Shipping & Warranty
- Shipping: FedEx, UPS, or DHL (express options available).
- Weight: 0.17 kg.
- Warranty: 12 months from delivery date.
Model Suffix Breakdown
- 330702: Base model (3300 XL 11mm Probe).
- 00: Agency approval not required.
- 24: 2.4 in case length.
- 50: 5.0-meter cable.
- 12: ClickLoc connector with FluidLoc cable.
- 00: No additional options.
