Bently Nevada | 330702-00-24-90-01-05 11 mm Proximity Probe

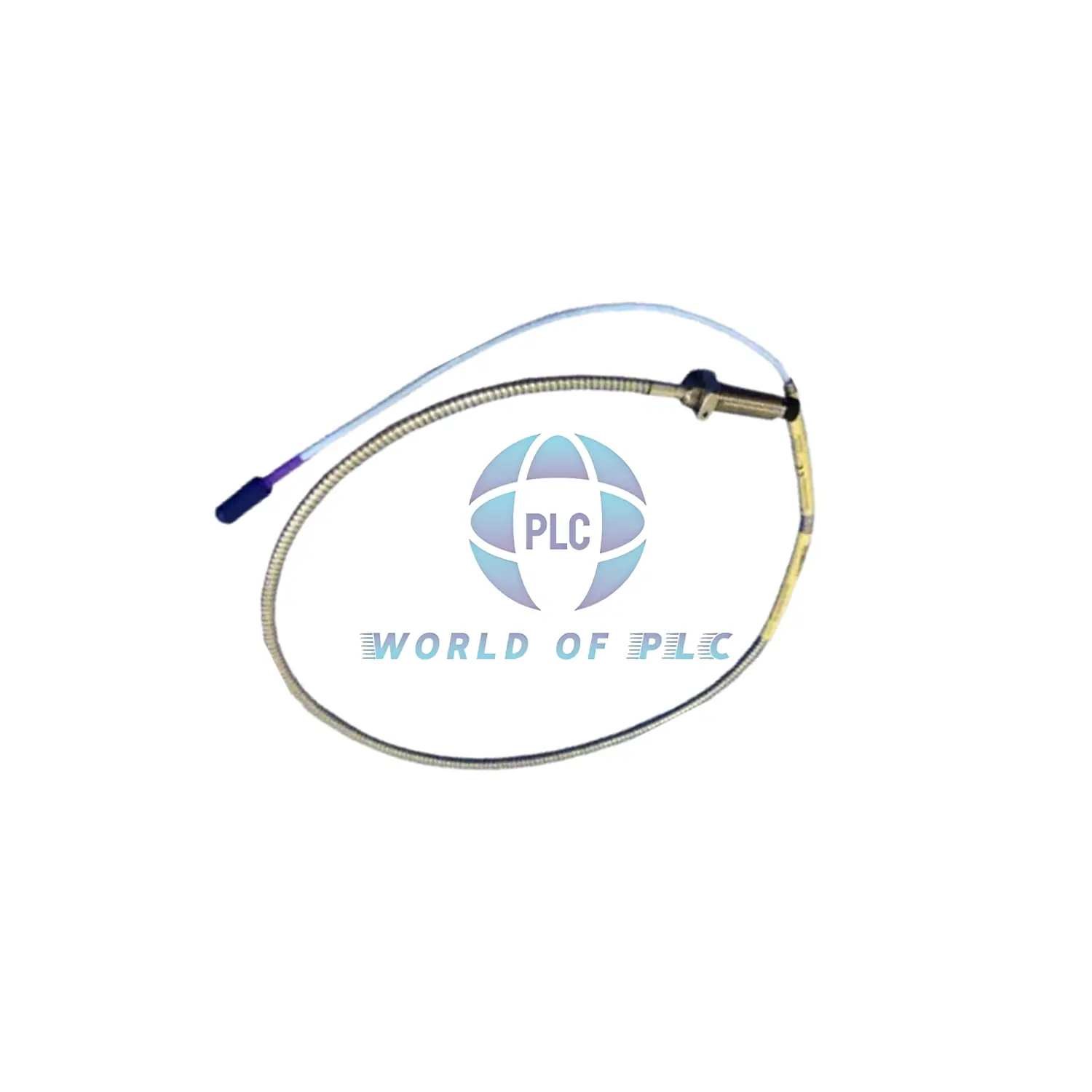

Bently Nevada 330702-00-24-90-01-05 – Heavy Duty 9m Proximity Sensor

Key Benefits

• Extra-long 9m armored cable (29.5 ft) for hard-to-reach spots
• Extended 2.4″ stainless steel case for deeper installations
• Works in extreme temperatures (-51°C to +177°C)
• Protected ClickLoc connector system

Model Number Explained

• 330702 – Base model (11mm probe)
  • -00 – No unthreaded section
  • -24 – 2.4″ case length
  • -90 – 9 meter cable
  • -01 – Protected ClickLoc connector
  • -05 – Multiple safety approvals

Performance Specs

• Cable resistance: 8.5Ω (±1.1Ω)
• Dual thread options: 1/2-20 UNF & M16x1.5
• Max torque: 400 in-lb (45.2 N•m)
• Min bend radius: 1 inch (25.4mm)
• Shipping weight: 0.37 lbs (0.17kg)
• Pressure seal: Viton O-ring design

Installation Guide

• Recommended torque: 133 in-lb (15.2 N•m)
• Max thread depth: 0.75 inches
• Connectors: Finger tight only (max 5 in-lb)

Technical FAQs

• Why choose 2.4″ case length? For deeper mounting in equipment
• Is the connector waterproof? Weather-resistant, not submersible
• Can I repair damaged cable? No – cable is non-serviceable
• How accurate is the probe? ±1.1Ω resistance tolerance
• Storage temperature limits? Same as operating range

What You Get

• 1x 330702-00-24-90-01-05 probe unit
• 9m triaxial cable with connector protector

Support Options

• 12 month defect coverage
• Express shipping available worldwide
