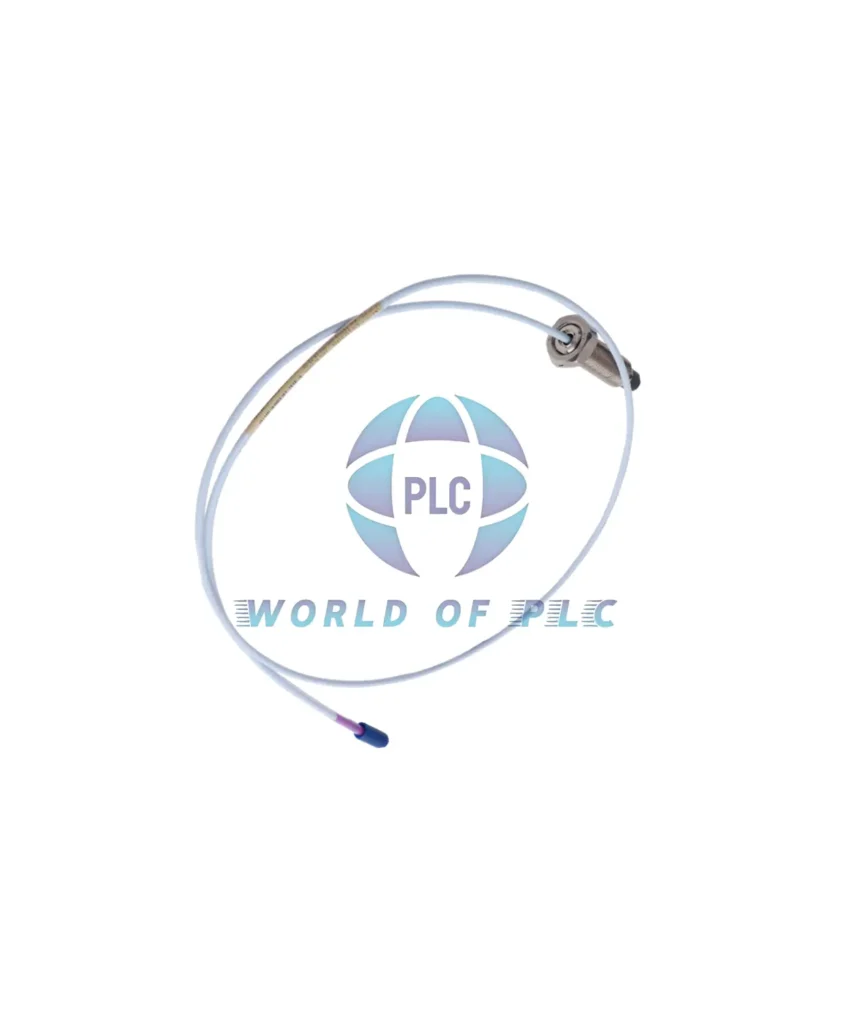

Bently Nevada 330702-00-30-10-12-05 Probe | 3300 XL Sensor

Product Short Description

• Compact armored industrial vibration probe
• 1.0 m FluidLoc cable with secure connector
• Stable signal for rotating machines
• Wide temperature operation range

Product Overview

• Manufacturer: Bently Nevada
• Model: 330702-00-30-10-12-05
• Series: 3300 XL 11mm Probe
• Thread: 1/2-20 UNF armored body
• Total length: 1.0 metre (3.3 ft)
• Shipping weight: 0.17 kg
• Origin: Made in U.S.A
• Warranty: 12 months
• Shipping: FedEx / UPS / DHL

330702-00-30-10-12-05 Suffix Configuration Tree

330702-00-30-10-12-05
└─ 330702
   └─ 3300 XL 11 mm armored probe
      └─ 00 → Unthreaded length: 0.0 in
         └─ 30 → Case length: 3.0 in
            └─ 10 → Cable length: 1.0 m
               └─ 12 → ClickLoc + FluidLoc cable
                  └─ 05 → Multiple approvals

Core Technical Specifications

• Probe tip material: PPS polymer
• Case material: AISI 304 stainless steel
• Cable type: 75 Ω triaxial FEP insulated
• DC resistance (1 m): 5.9 ± 0.5 Ω
• Operating temperature: −52°C to +177°C
• Minimum bend radius: 25.4 mm
• Thread engagement: 0.750 in max
• Recommended torque: 15.2 N·m
• Maximum torque: 45.2 N·m

Extended Engineering Data

• Typical linear range: 2 mm
• Frequency response: up to 10 kHz
• Connector plating: Gold-plated brass
• Seal material: Viton O-ring
• Shock resistance: 500 g peak
• Vibration tolerance: 20 g RMS
• Environmental rating: Industrial IP class

Key Product Advantages

• Short cable for tight spaces
• Strong armor for fluid areas
• Fast and safe ClickLoc connection
• High heat resistance
• Long service life
• Accurate vibration tracking

Temperature Classification

• EPL Ga/Gc: T1 to T5 classes supported
• EPL Dc: T90°C to T280°C ratings
• Stable sealing in wide climates

Professional FAQ

Is the 1 m cable enough for most machines?

It suits compact setups. Measure the path before buying.

Does armor affect signal quality?

No. It protects the cable and keeps signal stable.

How should I route the probe cable?

Avoid sharp bends and hot surfaces. Keep smooth curves.

When should I choose FluidLoc cable?

Use it in oil or wet areas. It seals against fluid entry.

What should I check before installation?

Verify thread type and torque limits. This prevents damage.
