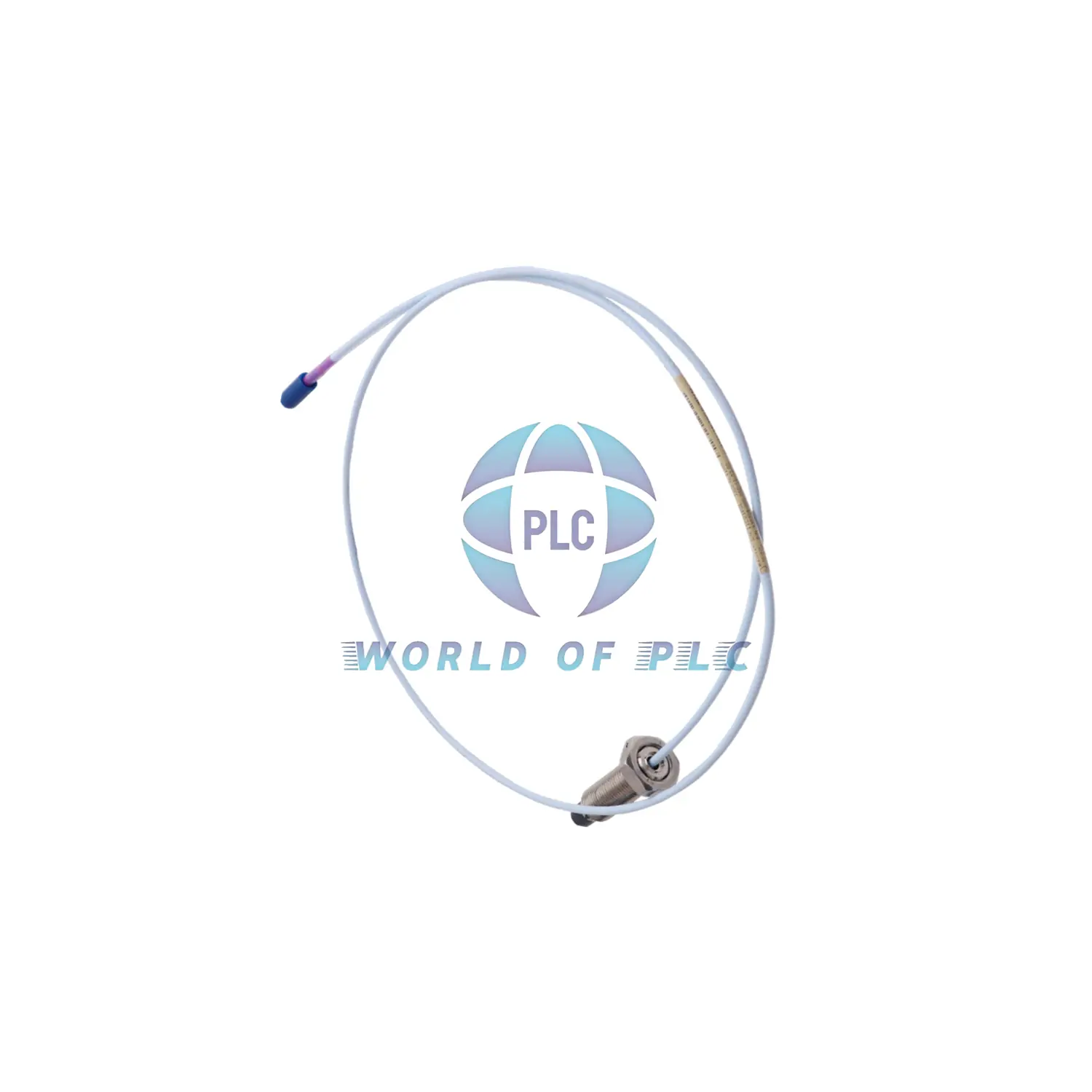

Bently Nevada 330707-00-26-10-11-05 3300 XL 11 mm Proximity Probe

Bently Nevada 330707-00-26-10-11-05 – Industrial Vibration Sensor

Probe Specifications

• Part Number: 330707-00-26-10-11-05
• Thread: 5/8-18 UNF (no armor)
• Tip: PPS plastic (very strong)
• Body: 304 stainless steel
• Cable: FluidLoc protected

Model Number Breakdown

• → 330707 = Base model
• → 00 = No unthreaded section
• → 26 = 2.6″ case length
• → 10 = 1 meter cable
• → 11 = ClickLoc connector with protector
• → 05 = Multiple safety approvals

Technical Details

• • Electrical resistance: 5.9Ω ±0.5Ω
• • Max torque: 400 in-lb (don’t exceed!)
• • Cable bend: Minimum 1 inch radius
• • Thread depth: Max 0.938″ engagement
• • Cold warning: Don’t use below -34°C
• • Cable type: Triaxial 75Ω FEP
• • Weight: Light at 0.17kg

Common Questions

• Q: What makes FluidLoc cable special?
  A: Extra protection against liquids and oils
• Q: Can I use this in explosive areas?
  A: Yes, it has multiple safety approvals
• Q: How do I connect the cable?
  A: Use the ClickLoc connector – just push to lock
• Q: Is calibration needed?
  A: Comes ready to use from factory
• Q: What’s the connector protector for?
  A: Keeps connection clean and secure

Support & Service

• 🔧 12 month quality guarantee
• 🚚 Fast shipping options available
• 📦 Safe packaging for protection
• 📞 Technical help available
