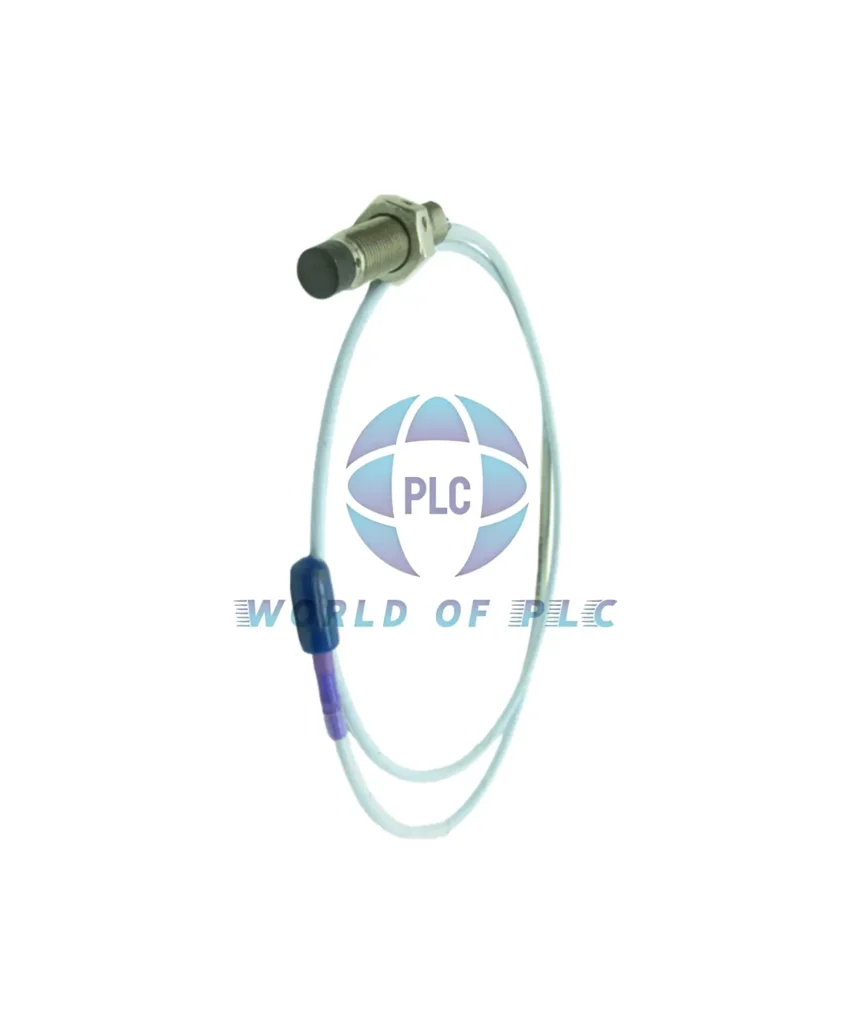

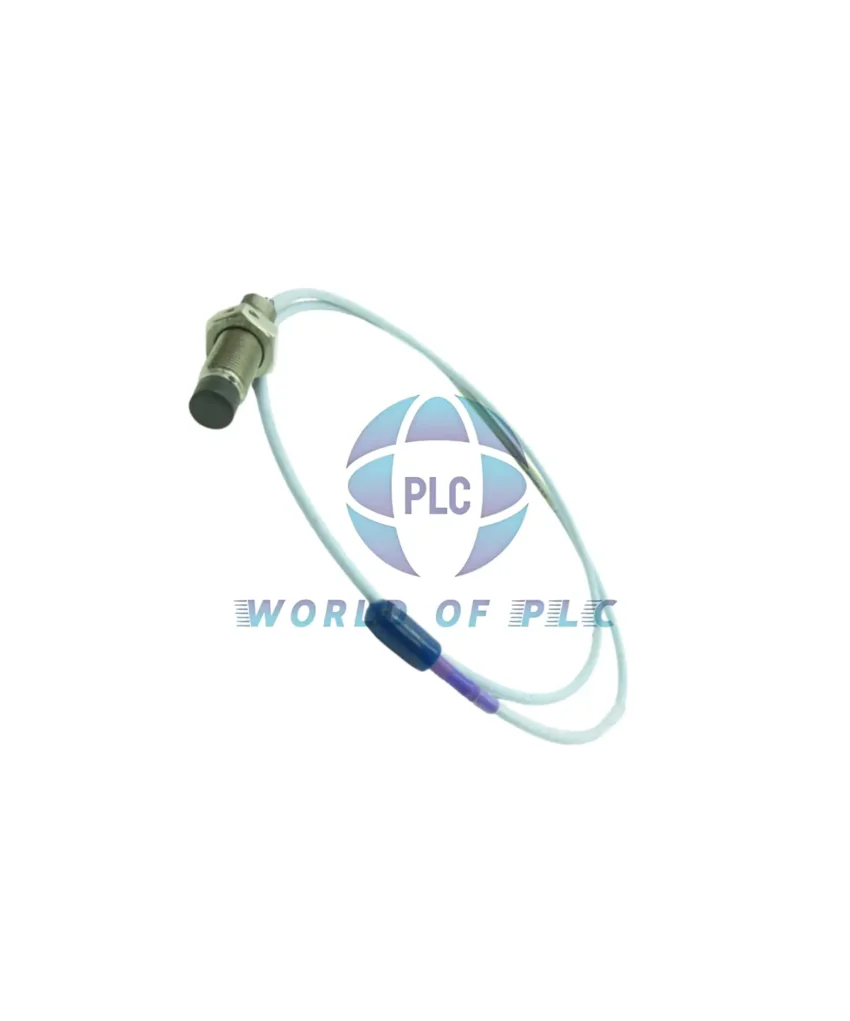

Bently Nevada 330707-00-30-10-02-05 3300 XL 11mm Probe USA Original

Identity And Scope

• Maker: Bently Nevada
• Part Number: 330707-00-30-10-02-05
• Family: 3300 XL 11 mm series
• Device Type:
  3300 XL 11mm Proximity Probe

• Made in U.S.A
• Factory new condition

330707-00-30-10-02-05 Configuration Tree View

• 330707
  • 00
    • Unthreaded length 0.0 inch
  • 30
    • Case length 3.0 inch
  • 10
    • Total probe length 1.0 meter
  • 02
    • Miniature coaxial ClickLoc connector
    • Standard probe cable
  • 05
    • Multiple agency approvals

Mechanical Structure

• Tip material uses PPS polymer
• Probe case uses AISI 304 stainless steel
• Thread type 5/8-18 UNF
• Max thread engagement 0.938 inch
• Alternate metric thread M16x1.5 supported
• Minimum bend radius 25.4 mm

Electrical And Cable Data

• 75 ohm triaxial cable design
• FEP cable insulation
• Probe DC resistance 5.9 ± 0.5 ohm at 1 m
• Stable low noise signal path
• Connector torque finger tight recommended
• Connector max torque 0.565 N·m

Temperature And Seal Limits

• Operating range −52°C to +177°C
• Storage range −52°C to +177°C
• Seal uses Viton O-ring inside probe
• Avoid use below −34°C for long time
• Low temperature may reduce seal life

Torque And Mounting Values

• Recommended case torque 15.2 N·m
• Maximum case torque 45.2 N·m
• Threaded mounting gives stable gap control
• Short case length fits tight spaces

Performance Selling Points

• Built for high vibration machines
• Fast connect ClickLoc interface
• Good linear response in wide range
• Strong chemical and oil resistance
• Reliable gap measurement signal
• Works with 3300 XL monitoring systems

Use Case Fit

• Steam and gas turbines
• Compressors and pumps
• High speed shafts
• Continuous vibration tracking

Warranty And Shipping

• 12 months product warranty
• Courier options FedEx, UPS, DHL
• Anti-static safe packing
• Each probe individually labeled
• Shipping weight about 0.17 kg

Expert FAQ

• How do I choose 11 mm probe instead of 8 mm
• Use 11 mm when target area is larger and space allows
• Is ClickLoc better than threaded connector
• ClickLoc is faster and reduces install time
• Can I change cable length later
• No, probe cable length is fixed from factory
• What gap range works best in practice
• Mid scale gap gives best linear output
• What should I confirm before buying
• Check thread type, length, and approval code
