Product Short Description

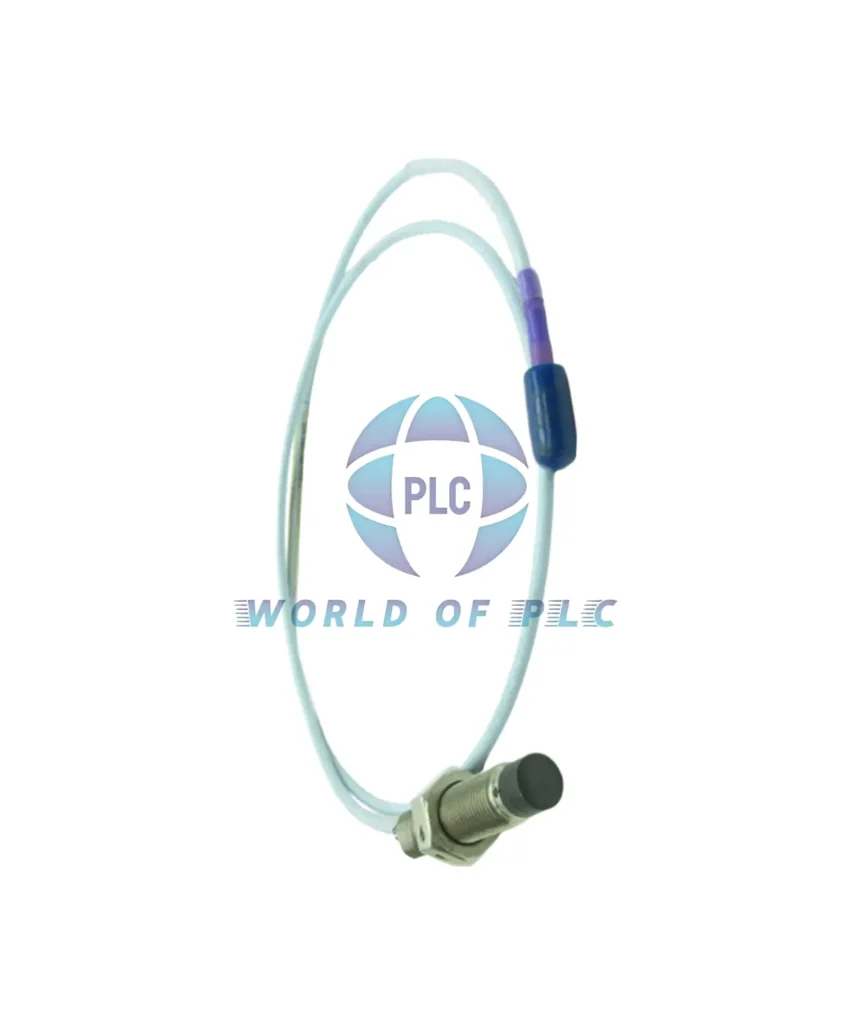

- Bently Nevada 330707-00-62-10-02-00 proximity probe
- 1.0 m cable with 5/8-18 UNF thread
- Wide temperature range and stable signal
- Strong stainless steel industrial design
Product Overview
The 3300 XL 11mm Proximity Probe is designed for accurate vibration and position monitoring. It uses a PPS probe tip and stainless steel housing. It works well in high heat and harsh industrial environments.
- Manufacturer: Bently Nevada
- Model: 330707-00-62-10-02-00
- Series: 3300 XL 11mm Probe
- Origin: Made in U.S.A
- Shipping weight: 0.17 kg
- Warranty: 12 months
- Shipping: FedEx / UPS / DHL
Model Code Structure
330707-00-62-10-02-00
└─ 330707
└─ 3300 XL 11 mm probe, 5/8-18 UNF, no armor
└─ 00 → Unthreaded length: 0.0 in
└─ 62 → Case length: 6.2 in
└─ 10 → Total cable: 1.0 m
└─ 02 → ClickLoc connector
└─ 00 → No agency approval
Core Technical Specifications
- Probe tip: Polyphenylene sulfide (PPS)
- Case material: AISI 304 stainless steel
- Cable: 75 Ω triaxial FEP insulated
- DC resistance (1 m): 5.9 ± 0.5 Ω
- Operating temperature: −52°C to +177°C
- Minimum bend radius: 25.4 mm
- Thread type: 5/8-18 UNF
- Max thread engagement: 0.938 in
- Recommended torque: 15.2 N·m
- Max torque: 45.2 N·m
Extended Engineering Parameters
- Typical sensitivity: 7.87 V/mm
- Signal linearity: ≤ ±1%
- Connector: Gold-plated brass
- Insulation resistance: >100 MΩ @ 500 VDC
- Humidity tolerance: 95% non-condensing
- Vibration endurance: 50 g peak
- Seal: Viton O-ring pressure seal
Temperature Classification
- T1: −55°C to +232°C
- T2: −55°C to +177°C
- T3: −55°C to +120°C
- T4: −55°C to +80°C
- T5: −55°C to +40°C
Exposure below −34°C may reduce seal life.
Product Advantages
- Stable signal in high temperature zones
- Strong corrosion resistance
- Compact size for tight spaces
- Low noise cable design
- Long service life
- Fast ClickLoc installation
Professional FAQ
How do I select the correct cable length?
Measure the routing path first. Use 1 m for short runs. Choose longer cables for distant mounting.
Is the probe suitable for high vibration machines?
Yes. It is built for turbines and rotating equipment with strong shock resistance.
What installation error should I avoid?
Do not exceed the torque rating. Over-tightening can damage threads and seals.
How often should maintenance checks be done?
Inspect during planned shutdowns. Check cable wear and connector tightness.
Is this probe safe for high temperature turbines?
Yes. It operates up to +177°C. Always confirm your ambient class rating before purchase.
