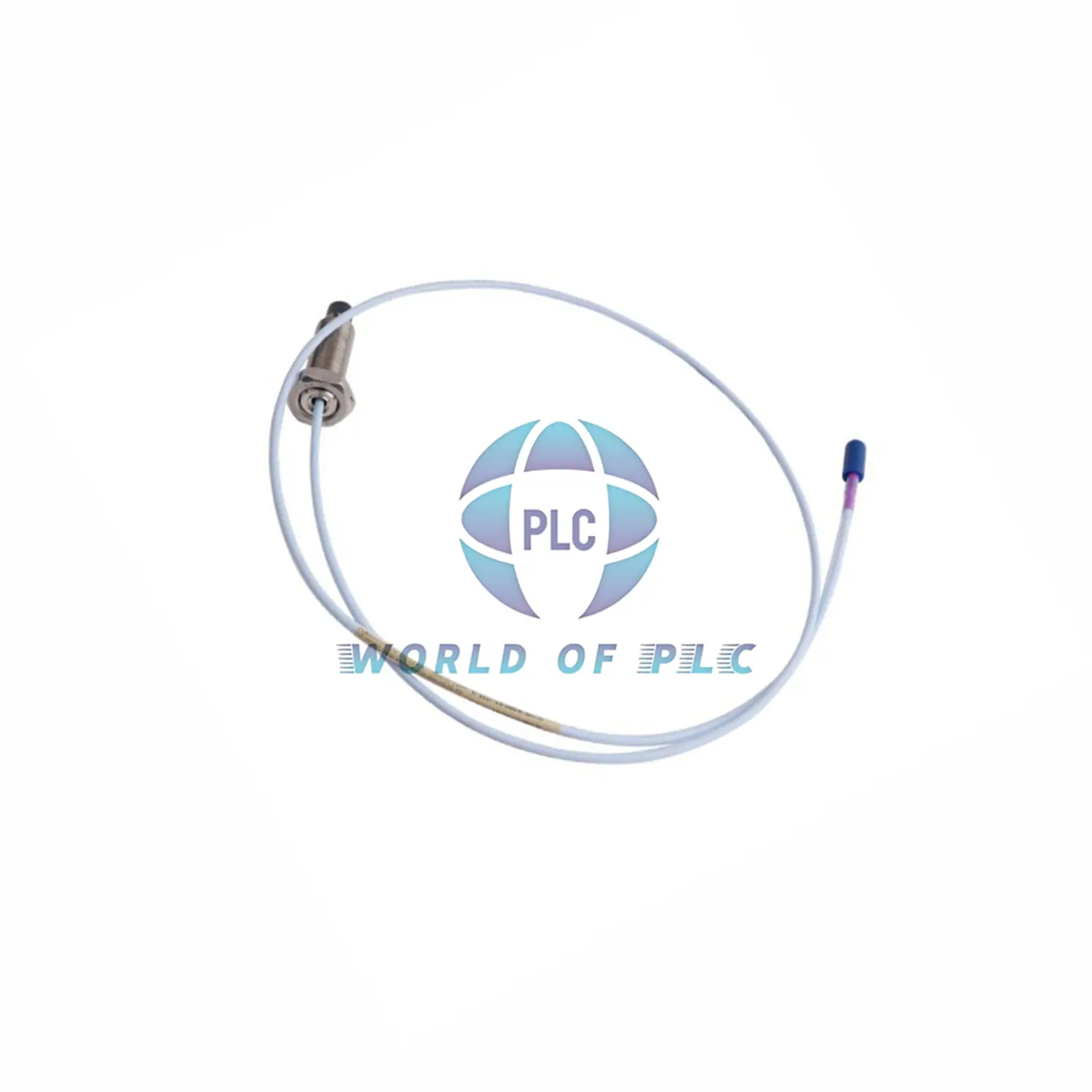

Bently Nevada 330708-00-24-10-02-05 3300 XL 11 mm Proximity Probe

Bently Nevada 330708-00-24-10-02-05 Industrial Proximity Probe

Precision 11mm vibration sensor for machinery protection. Made in USA. Ships fast worldwide.

Top Benefits

• ✅ 1 meter cable for compact spaces
• ✅ Extreme temperatures: -51°C to +177°C
• ✅ Stainless steel body
• ✅ 12-month warranty

Model Code Explained

Technical Details

• Brand: Bently Nevada
• Type: 3300 XL Proximity Probe
• Cable Length: 1.0 meter (3.3 feet)
• Resistance: 5.9Ω ±0.5
• Temperature Range: -51°C to +177°C
• Thread Type: 5/8-18 UNF
• Max Torque: 45.2 N•m
• Min Bend Radius: 25.4 mm
• Weight: 0.17 kg

Special Features

• PPS plastic tip resists chemicals
• Viton O-ring pressure seal
• 75Ω triaxial FEP cable
• Works with 1-9 meter systems
• Stainless steel housing (AISI 304)

Installation Guide

• Mount with 5/8-18 UNF thread
• Max thread depth: 0.938 inches
• Recommended torque: 15.2 N•m
• Keep above -34°C during install

Shipping & Support

• 12-month warranty
• New in factory packaging
• Express delivery: FedEx/UPS/DHLn

Expert Questions Answered

• Q: Chemical resistance?
  A: PPS tip handles oils/solvents
• Q: Pressure rating?
  A: Seals differential pressure – contact for testing
• Q: Alternative threads?
  A: M16x1.5 (24mm) or M14x1.5 (21mm)
• Q: Connector care?
  A: Finger tight only (max 0.565 N•m)
• Q: Cable bending?
  A> Maintain 25.4mm min bend radius
