Armored Extension Cable for Harsh Industrial Use

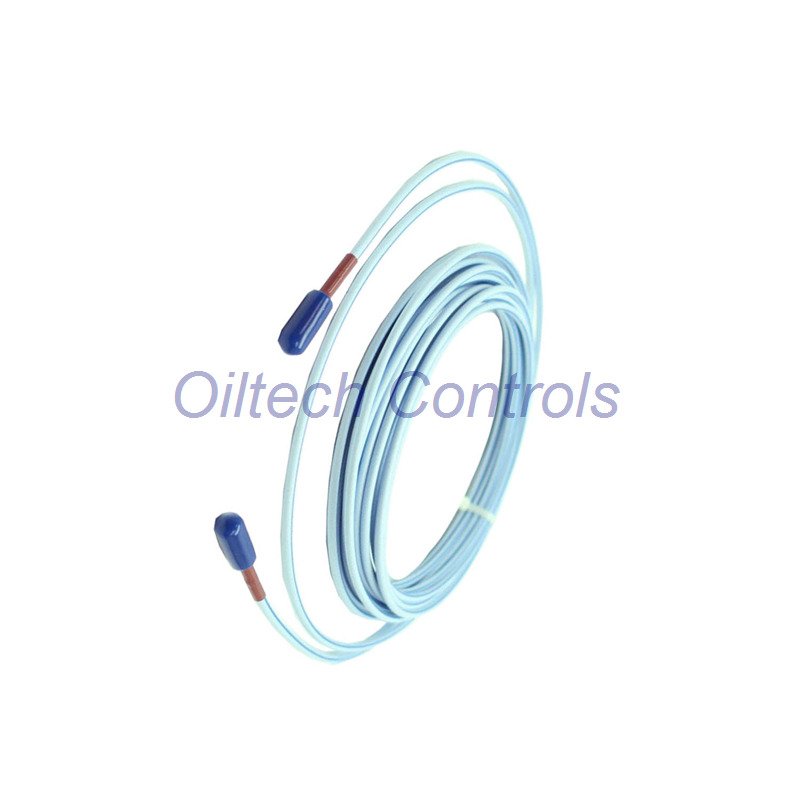

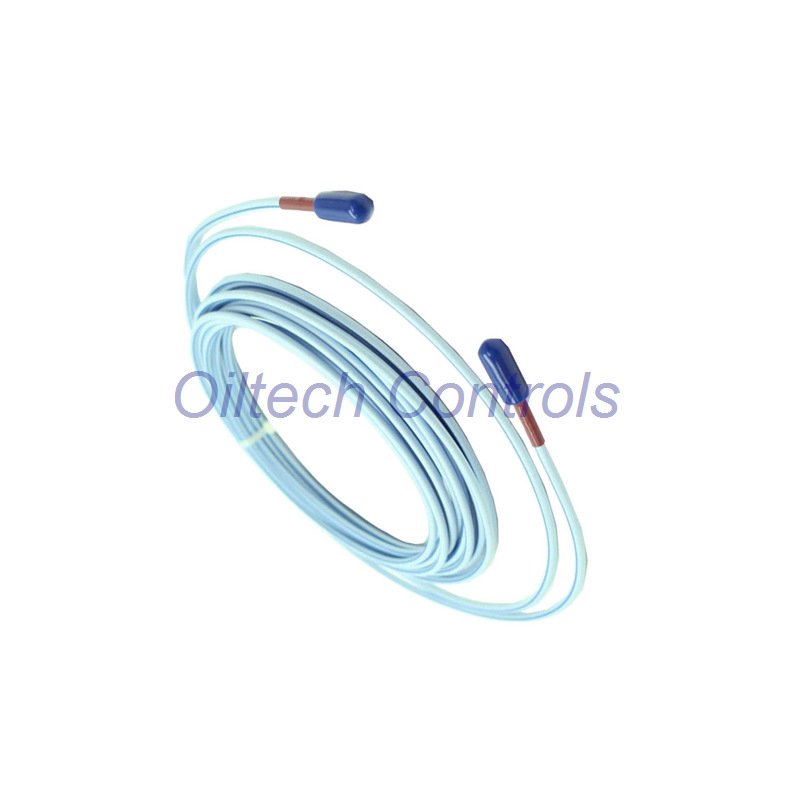

Extend your sensor reach with the Bently Nevada 330877-040-37-05. This is a 50mm armored extension cable. It is designed for tough environments. The cable connects vibration probes to monitoring systems reliably.
Part Number Breakdown
- Series 330877: 3300 XL 50mm Extension Cable
- Segment -040: Cable Length = 4.0 meters (13.1 feet)
- Segment -37: FluidLoc Cable with Armor Protection
- Segment -05: Multiple Agency Approvals Included
Product Benefits and Features
- FluidLock Technology: Prevents oil and fluid migration inside the cable.
- Armored Protection: Stainless steel armor guards against physical damage.
- High Temperature Rated: Works from -51°C to +200°C.
- Global Compliance: Holds multiple international safety approvals.
- Precise Matching: Ensures total system length matches your Proximitor sensor.
Complete Technical Specifications
- Manufacturer Part: 330877-040-37-05
- Cable Type: 75 Ω Triaxial Extension Cable
- Insulation: Perfluoroalkoxyethylene (PFA)
- Design: FluidLoc with External Armor
- Length: 4.0 meters (13.1 feet)
- Resistance (Center to Coax): 1.0 Ω ± 0.25
- Resistance (Coax to Coax): 0.3 Ω ± 0.1
- Temperature Range: -51°C to +200°C (-31°F to +392°F)
- Agency Approvals: Multiple (e.g., for hazardous areas)
Critical System Integration Rule
- Key Rule: Probe Length + Extension Cable Length = Proximitor Sensor Total Length.
- For example: A 1.0m probe + this 4.0m cable = 5.0m total, matching a 5m Proximitor.
- Correct matching is essential for accurate system calibration and performance.
Ordering and Warranty Information
- This is a new, original Bently Nevada part in factory packaging.
- It is covered by a 12-month warranty.
- We ship globally via FedEx, UPS, and DHL for fast delivery.
- Complete technical specifications are available upon request.
Frequently Asked Questions
System Compatibility & Selection
- How do I choose the right extension cable length?
- The cable must make the total length (probe + cable) equal the Proximitor sensor’s rated length (e.g., 5m or 9m).
- What does “FluidLoc” mean for a cable?
- It has a special sealant that blocks oil and other liquids from traveling through the cable core into the machine or connector.
Technical & Application
- Why is the cable armor important?
- The armor protects the cable from crush damage, abrasion, and rodent bites in industrial environments.
- Can I use this cable in a high-temperature area?
- Yes, it is rated for continuous use in temperatures up to 200°C (392°F).
Expert Selection Advice
- My application is not wet or oily. Do I need FluidLoc?
- If fluids are not a concern, you could choose a standard cable option, which may be more cost-effective.
