Bently Nevada 330904 NSv Probe | Certified Version 330904-08-15-50-11-05

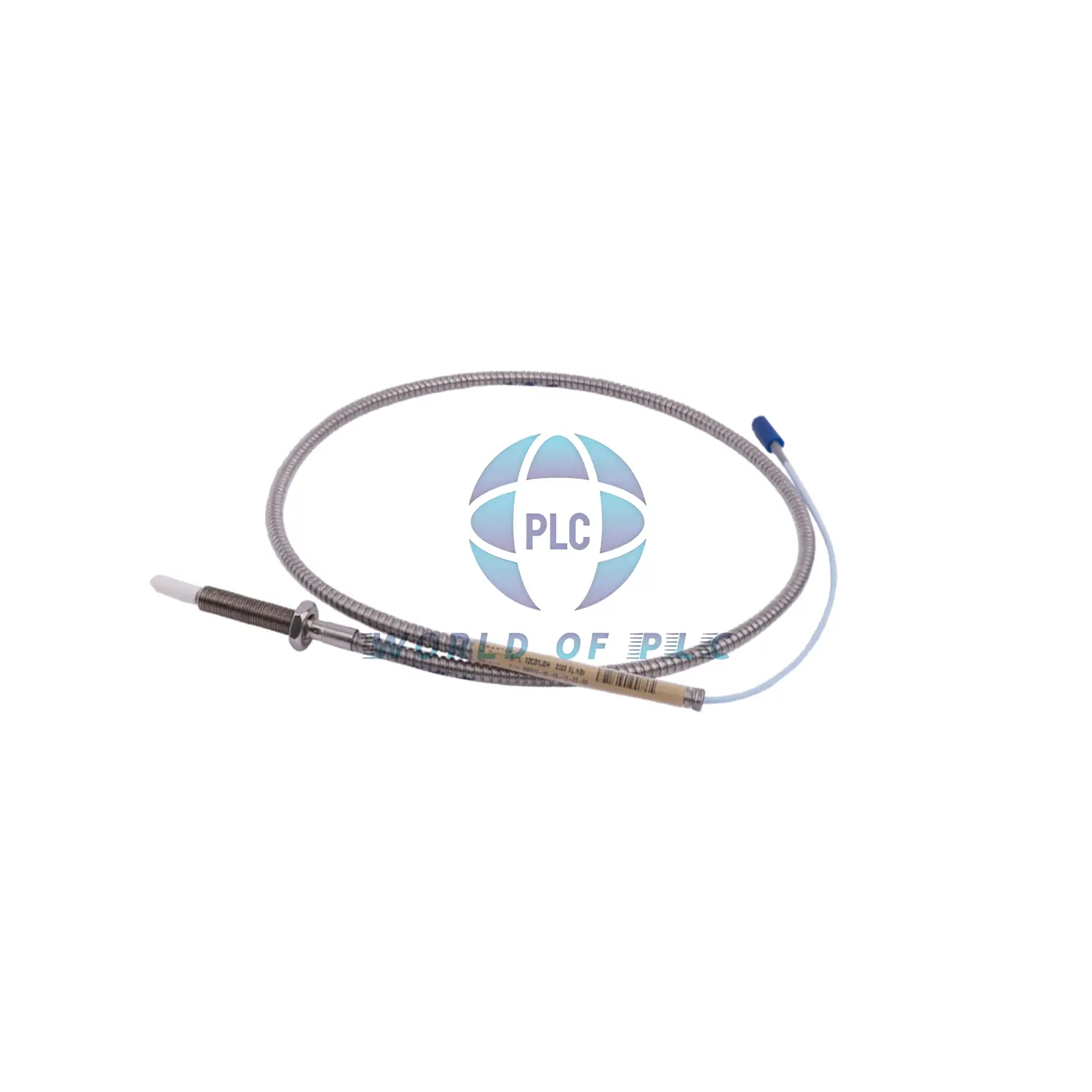

Bently Nevada 330904-08-15-50-11-05 Certified Proximity Probe

The Bently Nevada 330904-08-15-50-11-05 offers certified performance with 80mm unthreaded section. This 150mm case probe includes 5.0 meter FluidLoc cable and carries multiple agency approvals. Ideal for regulated industries requiring certified components.

Technical Specifications

• Model Number: 330904-08-15-50-11-05
• Measurement Range: 1.5 mm linear (0.25 to 1.75 mm)
• Sensitivity: 7.87 V/mm (±12.5% tolerance)
• Frequency Response: 0 to 10,000 Hz (±3 dB)
• Linearity: Better than ±0.06 mm deviation
• Unthreaded Length: 80 mm
• Case Length: 150 mm total
• Cable Length: 5.0 meters FluidLoc type
• Electrical Resistance: 5.3 ± 0.7 ohms
• Temperature Range: -52°C to +177°C
• Approvals: Multiple agency certifications

Installation Guide

• Set probe gap to 1.0 mm from target surface
• Hand tighten only – maximum torque 0.56 N•m
• Recommended target diameter: 13 mm or larger
• Maintain minimum 25.4 mm cable bend radius
• Maximum thread engagement: 12 mm depth

Package Contents

• Certified Bently Nevada 3300 NSv proximity probe
• 80mm unthreaded section configuration
• 5.0 meter FluidLoc protected cable
• ClickLoc connector with protective cover
• Factory documentation with certification details

Technical FAQs

• What certifications does this model have?
  This version carries multiple agency approvals for use in regulated industries.
• Why choose the FluidLoc cable version?
  FluidLoc provides superior protection against chemicals and moisture in tough environments.
• How does the unthreaded section help installation?
  It allows mounting through brackets or sleeves without thread engagement requirements.
• What industries use this certified version?
  Ideal for oil & gas, chemical processing, and power generation applications.
• Is this probe suitable for hazardous areas?
  The multiple approvals make it suitable for various regulated environments.

Shipping & Delivery

• Global shipping via FedEx, UPS, and DHL
• Fast processing for urgent requirements
• Complete documentation included

Download Complete Documentation

• Access full technical specifications and certifications
• Includes installation guidelines and approval documents
• Download 3300 XL NSv System Datasheet
