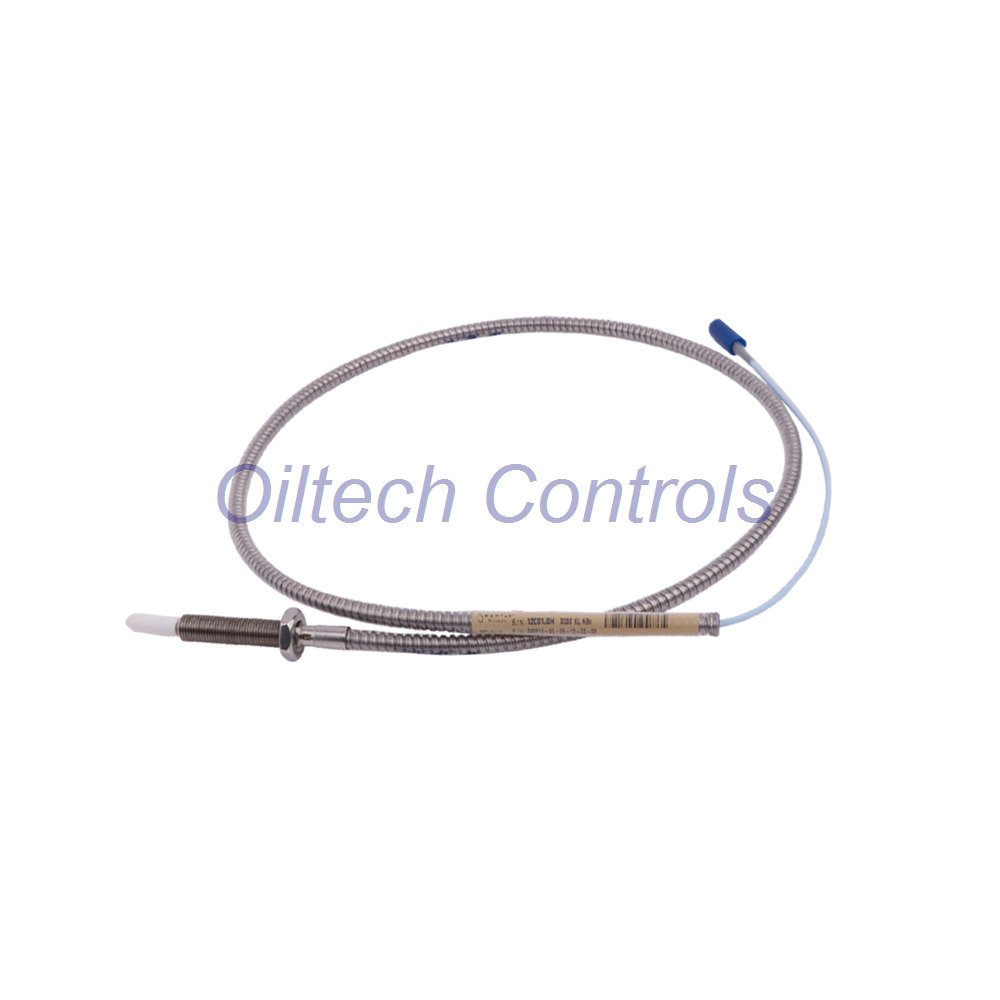

Bently Nevada 330910-00-12-10-02-00 Proximity Probe | 3300 NSv Series

Product Overview – Bently Nevada 330910-00-12-10-02-00

• Brand: Bently Nevada
• Series: 3300 NSv Proximity Probes
• Type: Industrial proximity vibration probe
• Condition: New and original factory sealed
• Warranty: 12 months

• The probe measures shaft vibration and position.
• Designed for compressors and rotating machines.
• Improved chemical resistance increases lifetime.
• Stable output helps predictive maintenance.
• Compact body fits narrow installation spaces.

Configuration Breakdown (330910-00-12-10-02-00 Structure)

• 330910
  • 3300 NSv armored probe
  • M10x1 mounting thread
• -00
  • Unthreaded length: 0 mm
  • Short mounting design
• -12
  • Case length: 120 mm
• -10
  • Total probe length: 1.0 meter
• -02
  • Miniature ClickLoc connector
  • Standard coaxial cable
• -00
  • No special agency approval required

Core Technical Performance

• Linear range: 1.5 mm
• Measurement zone: 0.25 to 1.75 mm
• Sensitivity: 7.87 V/mm
• Frequency response: 0–10 kHz
• Linearity error: ±0.06 mm
• Recommended gap: 1.0 mm
• Probe resistance: 4.2 ±0.5 Ω
• Cable capacitance: 69.9 pF/m
• Signal stability: high noise immunity

Mechanical & Environmental Data

• Probe case material: AISI 304 stainless steel
• Tip material: PPS polymer
• Minimum bend radius: 25.4 mm
• Operating temperature: -52°C to +177°C
• Sealing: Viton O-ring pressure seal
• Typical weight: 14–150 g
• 75 Ω FEP insulated coaxial cable

Installation Highlights

• Set probe gap near 1.0 mm.
• Use shielded triad field cable.
• Target diameter above 13 mm recommended.
• Finger tighten before torque adjustment.
• Avoid sharp cable bending.

Performance Advantages

• Better side-view sensing accuracy.
• Compatible with older 3300 RAM systems.
• Long cable support up to 305 meters.
• Stable signals in high EMI environments.
• Fast connector locking reduces downtime.
• Supports continuous condition monitoring.

Applications & Diagnostic Capability

• Turbine vibration monitoring
• Compressor shaft position detection
• Motor protection systems
• Axial displacement measurement
• Early fault diagnosis and trend analysis

Packing List

• 1 × 330910 NSv proximity probe
• Factory sealed packaging
• Quality inspection documentation
• 12-month warranty coverage

Shipping Options

• FedEx priority delivery
• UPS worldwide express
• DHL international shipping
• Anti-static industrial packing included

Professional FAQ & Selection Advice

• How do I confirm probe compatibility?
  • Check thread type and total system length first.
• Why is the signal voltage unstable?
  • Incorrect grounding or unshielded cable often causes noise.
• Can the probe work with long cable runs?
  • Yes. It supports up to 305 meters field wiring.
• How do I extend probe life?
  • Keep correct gap and avoid excessive torque.
• What should I check before ordering?
  • Confirm mounting space, temperature range, and connector type.
