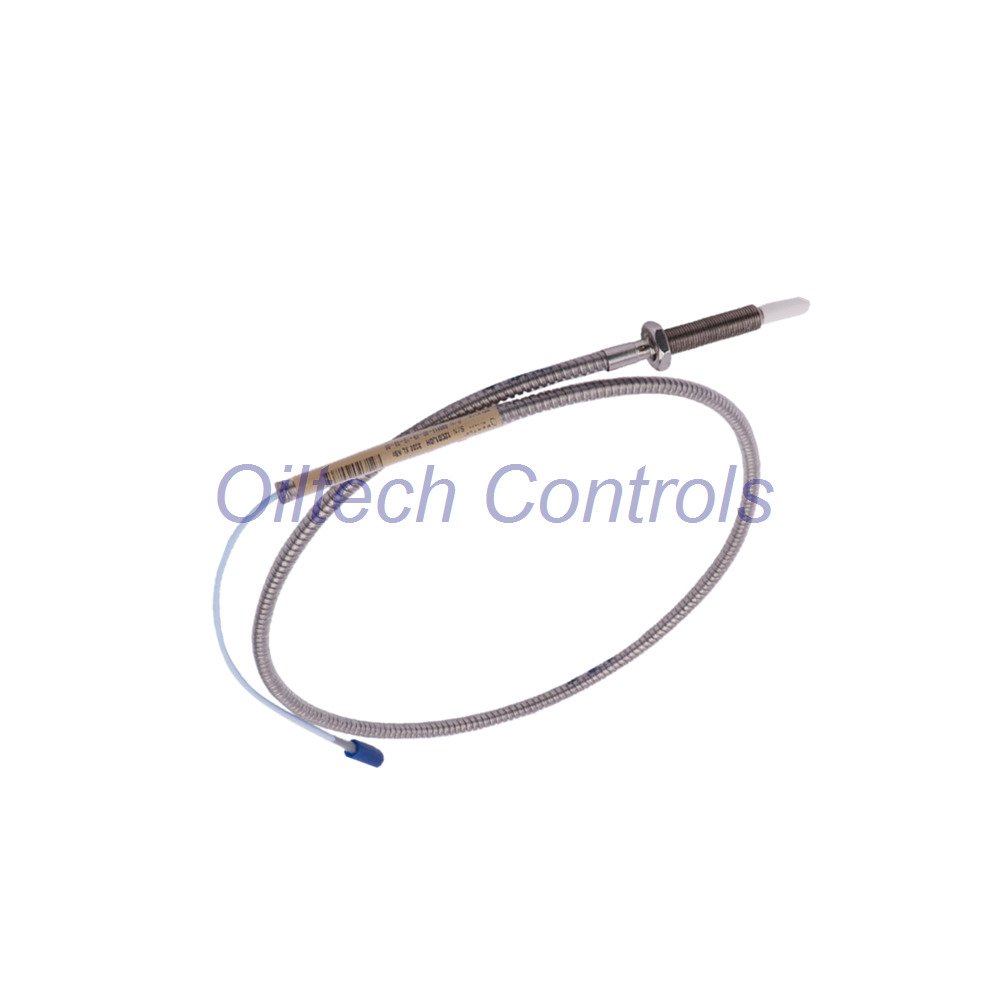

Bently Nevada 330910-05-11-10-02-00 3300 NSv Probe 1m Armored

Product Overview – Bently Nevada 330910-05-11-10-02-00

• Brand: Bently Nevada
• Model: 330910-05-11-10-02-00
• Series: 3300 NSv Proximity Probes
• Thread: M10X1
• Cable: Armored, 1.0 meter
• Warranty: 12 Months

• This probe measures shaft vibration and axial position.
• It offers improved chemical resistance.
• It performs well in compressor environments.
• It supports compact mounting spaces.
• It ensures stable output under harsh conditions.

Configuration Breakdown

• 330910
  • NSv probe, M10X1 thread, armored cable
• -05
  • Unthreaded length: 50 mm
• -11
  • Overall case length: 110 mm
• -10
  • Total probe length: 1.0 meter
• -02
  • Miniature coaxial ClickLoc connector
• -00
  • No agency approval required

Technical Specifications

• Measurement Range: 0.25 to 1.75 mm
• Linear Range: 1.5 mm
• Recommended Gap: 1.0 mm
• Sensitivity: 7.87 V/mm
• Linearity: ±0.06 mm deviation
• Frequency Response: 0 to 10 kHz
• Probe DC Resistance: 4.2 ±0.5 Ω
• Cable Capacitance: 69.9 pF/m typical
• Impedance: 75 Ω coaxial
• Operating Temperature: -52°C to +177°C
• Storage Temperature: -52°C to +177°C
• Maximum Field Wiring: 305 meters
• Minimum Bend Radius: 25.4 mm
• Tip Material: PPS
• Case Material: AISI 304 stainless steel

Performance Advantages

• High temperature endurance for harsh plants.
• Stable output over long cable distances.
• Low signal rolloff at 10 kHz.
• Improved side-view performance.
• Reliable scale factor stability.

Installation Guidelines

• Set gap at 1.0 mm.
• Use finger tight for initial alignment.
• Recommended torque: 11.3 N·m.
• Maintain minimum bend radius.
• Use shielded triad field cable.

Commissioning and Maintenance

• Verify voltage between -1 and -13 Vdc.
• Inspect connector locking.
• Check O-ring condition periodically.
• No routine calibration required.

Compatibility

• Interchangeable with 3300 RAM probes.
• Compatible with NSv Proximitor sensors.
• Works with 3300 monitoring systems.
• Supports long field wiring.

Applications

• Centrifugal compressors.
• Steam turbines.
• Gas turbines.
• Axial thrust monitoring.
• Small shaft installations.

Diagnostic Capability

• Detects bearing wear early.
• Identifies shaft misalignment.
• Tracks thermal expansion.
• Supports predictive maintenance.

Packing List

• 1 × 330910-05-11-10-02-00 probe
• Original factory packaging
• Product identification label

Shipping Method

• FedEx express delivery
• UPS express delivery
• DHL express delivery
• Worldwide shipping available

FAQ

• What gap ensures best performance?
• Set 1.0 mm for stable sensitivity.

• Can it replace older 3300 RAM probes?
• Yes. Mechanical and electrical interfaces match.

• What shaft size is recommended?
• Use at least 13 mm diameter.

• How to choose correct cable length?
• Total system length must match sensor specification.

• Buying Guidance
• Confirm thread type first.
• Check required total length.
• Verify monitor compatibility.
• Confirm operating temperature range.
