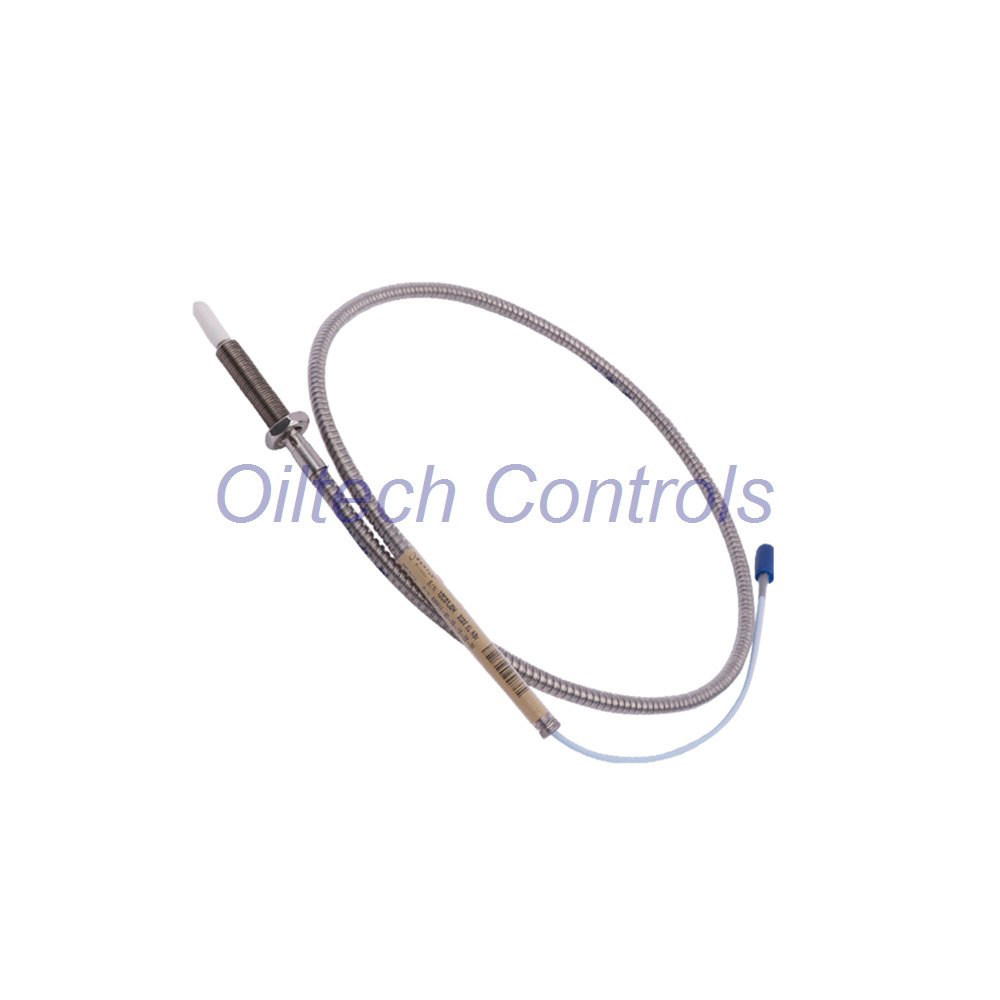

Bently Nevada 330910-16-23-10-02-00 3300 NSv Proximity Probes

Product Quick View

• Bently Nevada 330910-16-23-10-02-00 proximity probe for small target vibration measurement.
• Series → 3300 NSv Proximity Probes
• Thread → M10X1 with armor.
• Condition → New and original factory packing.
• Factory warranty → 12 months.
• Designed for tight spaces and small shafts.
• High chemical resistance probe tip.

Short Product Description

• Bently Nevada 330910-16-23-10-02-00 3300 NSv Proximity Probes with M10 thread, 1m cable, armored design, 1.5 mm range, 10 kHz response for compact machine monitoring.

Order Code Logic Tree

• Base → 330910
  • Series → 3300 NSv Proximity Probes
  • Thread → M10X1
  • Armor → Included
• Suffix Path
  • -16
    • Unthreaded length → 160 mm
  • -23
    • Case length → 230 mm
  • -10
    • Total cable length → 1.0 meter
  • -02
    • Miniature coax ClickLoc connector
    • Standard cable type
  • -00
    • Agency approval → Not required

Main Technical Performance

• Linear range → 1.5 mm
• Active span → 0.25 to 1.75 mm
• Recommended gap → 1.0 mm
• Scale factor → 7.87 V/mm
• Scale tolerance → +12.5% / −20%
• Linearity error → ±0.06 mm max
• Frequency response → 0 to 10 kHz
• Signal output → about −1 to −13 Vdc

Electrical Parameters

• Probe resistance → 4.2 Ω ±0.5
• Cable center resistance → 0.220 Ω per meter
• Cable shield resistance → 0.066 Ω per meter
• Cable capacitance → 69.9 pF per meter
• Characteristic impedance → 75 Ω coax
• Max field wiring → 305 meters
• Field wire size → 16 to 24 AWG

Mechanical and Material Details

• Probe tip → PPS material
• Probe case → AISI 304 stainless steel
• Cable insulation → FEP
• Armor → Stainless steel armor layer
• Min bend radius → 25.4 mm
• Probe weight → about 14 to 150 g
• Pressure seal → Viton O-ring

Torque and Mounting Limits

• Finger tight install allowed
• Small connector torque → 0.56 N·m max
• Case torque max → 33.9 N·m
• Case torque recommended → 11.3 N·m
• First thread torque max → 22.6 N·m
• Thread engagement max → 0.563 in

Temperature Ratings

• Operating → −52°C to +177°C
• Storage → −52°C to +177°C
• High temp class T1 → up to +232°C ambient
• T2 → up to +177°C ambient
• T3 → up to +120°C ambient
• T4 → up to +80°C ambient
• T5 → up to +40°C ambient

Application Advantages

• Better chemical resistance than 3300 RAM.
• Good for process compressor duty.
• Works well with small diameter shafts.
• Stable side view signal pattern.
• Good choice for tight probe mounting spots.
• Interchangeable with older RAM systems.

Target Requirements

• Minimum flat target → 8.9 mm diameter
• Recommended target → 13 mm diameter
• Small shaft use may change scale.
• Reduce gap to improve accuracy.

Shipping and Warranty

• 12 month warranty from shipment date.
• Delivery by FedEx, UPS, DHL.
• Factory sealed packing.
• Global export support.

Technical FAQ and Selection Help

• When should I choose NSv instead of XL?
• Use NSv for small targets and tight mount space.
• Does armor change bend radius?
• No, bend limit stays at 25.4 mm.
• Can I mix with older RAM cables?
• Yes, they are mechanically compatible.
• How to improve accuracy on small shafts?
• Reduce gap and use larger target area.
• Do I need pressure seal testing?
• Ask for custom test if process risk is high.
