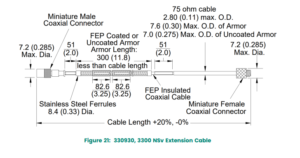

330930-040-01-05 Bently Nevada 3300 NSv Extension Cable
The 330930-040-01-05 by Bently Nevada is a mission-critical component within the 3300 NSv proximity transducer system. Engineered for precision vibration monitoring in rotating machinery, this 4-meter extension cable ensures reliable signal integrity between the probe and the Proximitor sensor, even in extreme industrial thermal conditions.
Configuration Breakdown
- Base Model: 330930 (3300 NSv Extension Cable)
- Length (-040): 4.0 meters (13.1 feet)
- Armor/Jacket (-01): Stainless steel armor with FEP outer jacket
- Agency Approval (-05): Multiple hazardous area certifications
Technical Specifications
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Cable Impedance: 75 Ω coaxial, FEP insulated
- Linear Range: 1.5 mm (60 mils); Optimal at 1.0 mm gap setting
- Tensile Strength: 220 N (50 lb) across connector joints
- Electrical Resistance: 0.220 Ω/m (Center); 0.066 Ω/m (Shield)
- Connector: Gold-plated brass
- Field Wiring: Supports 16-24 AWG; Max distance 305 meters
Oiltech Controls Limited’s Insight
At Oiltech Controls Limited, we emphasize that the 330930-040-01-05 is vital for maintaining system impedance in non-contact displacement measurements. This cable is specifically built for high-frequency response in compact turbine and compressor bearings. For optimal diagnostic capability, always verify that the total system length matches your Proximitor sensor calibration requirements.
Applications and Compatibility
- Equipment: High-speed centrifugal compressors, small-bore pump impellers, gas turbines.
- Diagnostics: Real-time vibration analysis and displacement monitoring.
- Compatibility: Fully integrated with Bently Nevada 3300 NSv systems.
Logistics and Quality Assurance
- Warranty: 12-month quality guarantee on all units.
- Shipping: Global delivery via FedEx, UPS, or DHL.
- Processing: Fast dispatch within 24-48 hours.
Professional FAQ
- Q: Does the cable length impact my system linearity?
A: Yes, total system length must account for both probe and cable to ensure the Proximitor sensor operates within its calibrated linear range. - Q: Why is the FEP jacket crucial for high-temperature applications?
A: FEP provides superior thermal stability and chemical resistance, preventing the cable from becoming brittle in harsh industrial atmospheres. - Q: What wiring type should I use for the field connection?
A: We recommend using three-conductor shielded triad cable to minimize EMI, especially if your monitor distance approaches the 305-meter limit. - Q: How do I identify potential cable damage during routine maintenance?
A: Check the gold-plated connectors for oxidation and perform a continuity test to verify resistance against the standard 0.220 Ω/m. - Q: Is the stainless steel armor necessary for my installation?
A: Armor is highly recommended for environments with high mechanical vibration or risks of physical impact to ensure long-term cable protection.
