Bently Nevada | 330930-065-04-CN 3300 NSv Extension Cable

Bently Nevada Industrial Sensor Cable: Premium Protection Solution

Engineered for Harsh Environments

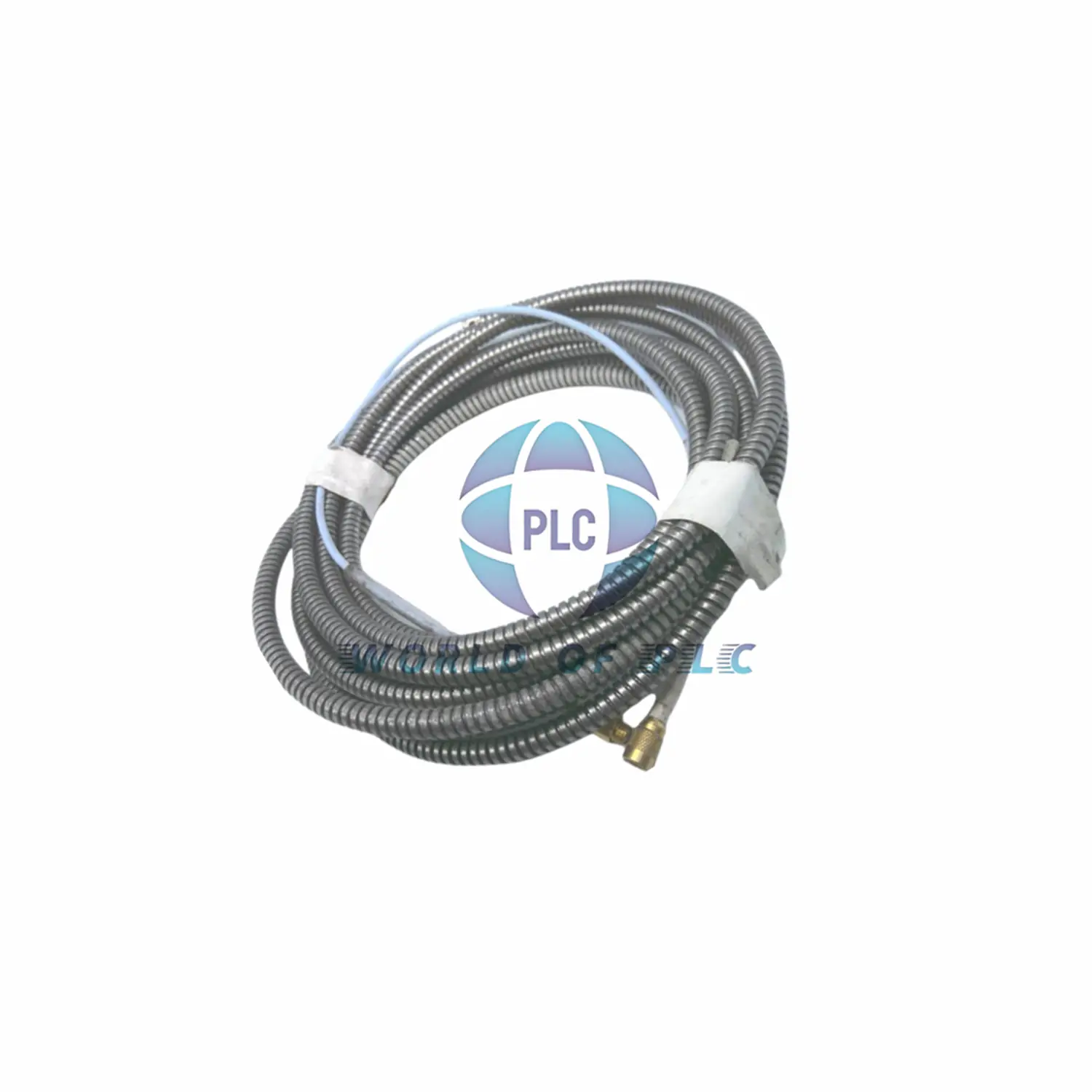

This 6.5-meter armored extension cable (330930-065-04-CN) features triple protection: stainless steel armor, FEP jacket, and connector guards. Maintains signal accuracy from -51°C to +177°C. Country-specific certified.

Complete Model Information

• Product Base – 330930
• Length Code – 065 = 6.5m (21.3 ft)
• Connection Type – 04 = Armored with FEP jacket + connector protector
• Certification – CN = Country-specific approvals

Technical Specifications

• Full Model: 330930-065-04-CN
• Impedance: 75Ω coaxial design
• Temp Range: -51°C to +177°C
• Armor: AISI 302 stainless steel
• Pull Strength: 220N (50 lb) at all points
• Capacitance: 69.9 pF/m (low signal loss)
• Connectors: Gold-plated brass

Installation Notes

• Probe + extension length must match system requirements
• Set gap to 1.0 mm (40 mils)
• Max monitor distance: 305 meters
• Use shielded triad cable for field wiring

Certifications & Support

• Country-specific approvals (CN)
• 12-month warranty
• Global shipping: FedEx/UPS/DHL

Professional FAQs

• Q: What chemicals does the FEP resist?
  A: Resists oils, acids, fuels and solvents
• Q: Can it withstand steam cleaning?
  A: Yes, rated for high-pressure wash
• Q: Minimum installation temperature?
  A: -52°C operational rating
• Q: Connector mating cycles?
  A: 500+ connect/disconnect cycles
• Q: Compatible with hazardous areas?
  A: With proper certification (ATEX/IECEx optional)

Get Technical Resources

Download the complete manual for frequency response charts and wiring diagrams. Optimize your 330930-065-04-CN installation.
