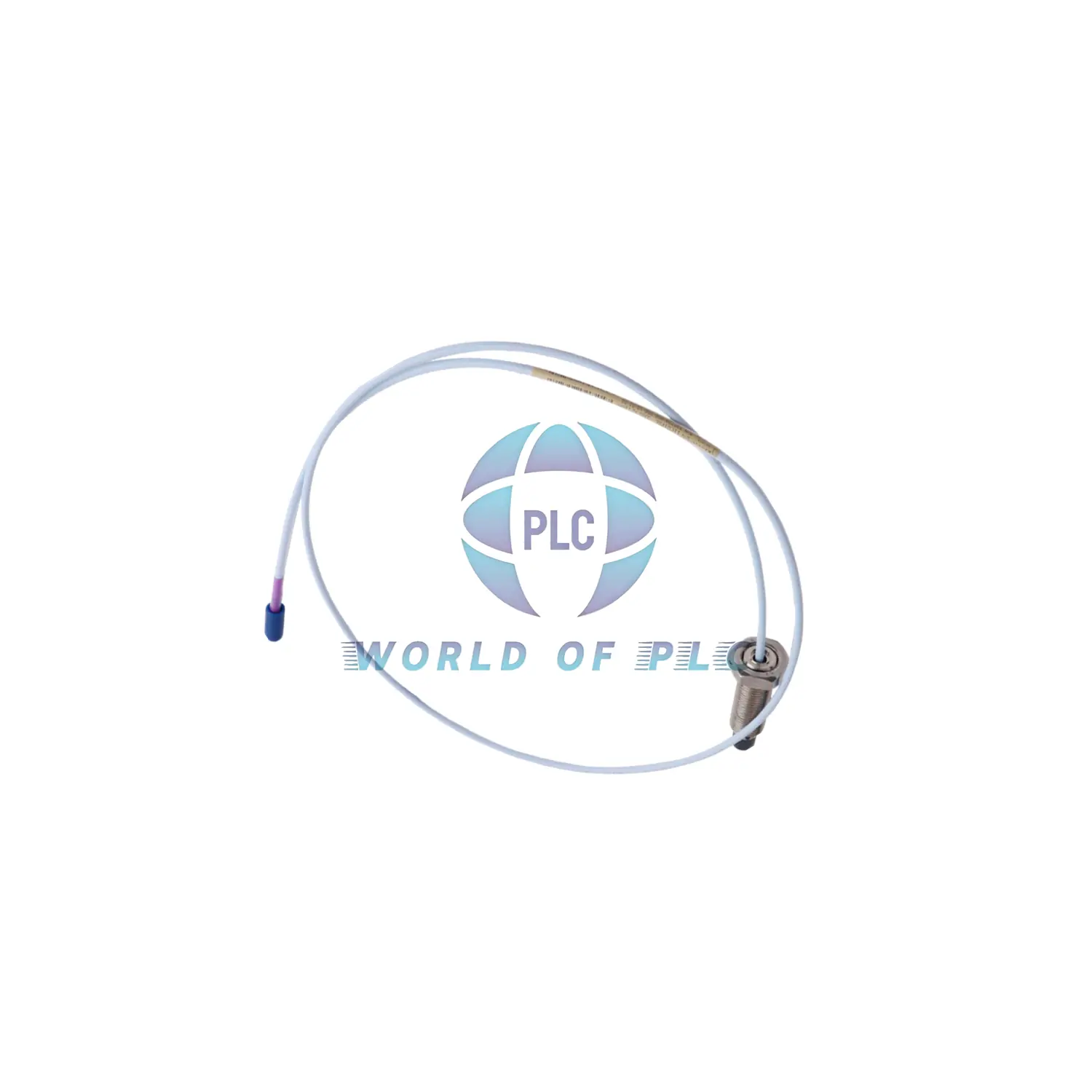

Bently Nevada 33300 XL 330701-00-24-50-01-00 11 mm Proximity Probe

Bently Nevada 330701-00-24-50-01-00 – 5m Industrial Vibration Probe

Model Number Details

• 330701 → Base model
• 00 → 0″ unthreaded length
• 24 → 2.4″ case length
• 50 → 5.0 meter cable
• 01 → Standard cable with protected ClickLoc
• 00 → Standard approvals

Technical Specifications

• • Electrical resistance: 7.2Ω ±0.8Ω
• • Cable type: 75Ω triaxial FEP
• • Thread size: 1/2-20 UNF
• • Installation torque: 15.2 N•m (133 in-lb)
• • Maximum torque: 45.2 N•m (400 in-lb)
• • Minimum bend radius: 25.4mm (1.0″)
• • Weight: 0.17kg (170g)
• • For use with: 5m Proximitor Sensors only

Expert Questions Answered

• Q: What’s different about the 5m version?
  A: Higher resistance (7.2Ω) and specific Proximitor pairing
• Q: Can I use this in wet areas?
  A: Standard cable version – not recommended for wet areas
• Q: Why 2.4″ case length?
  A: Provides extra stability for long cable applications
• Q: How to store properly?
  A: Keep in dry place above -34°C, loosely coiled
• Q: What’s the cable material?
  A: FEP-insulated for temperature resistance

Shipping & Support

• • 12-month product warranty
• • Fast global shipping options
• • Protective packaging
• • Technical support available
