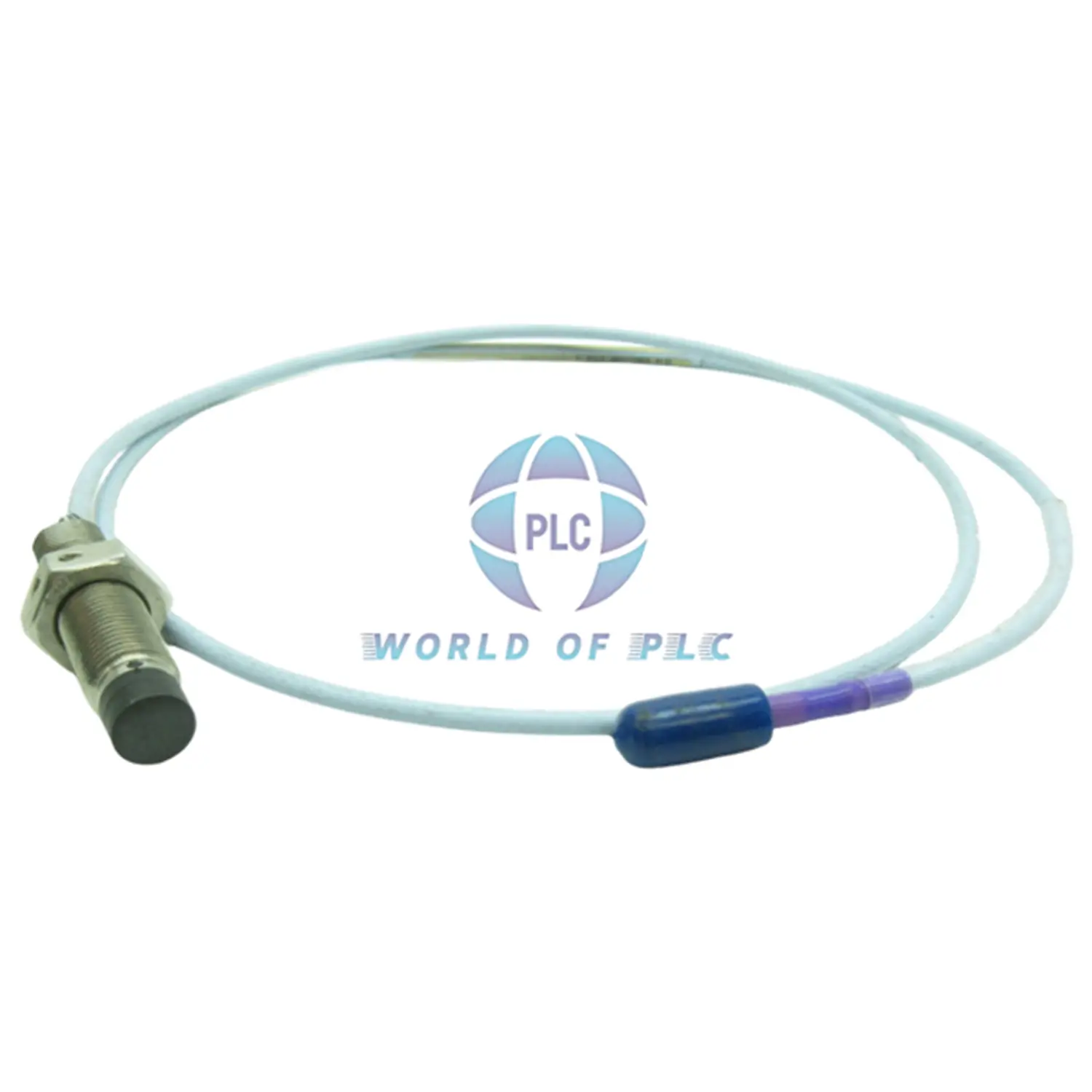

Bently Nevada 33300 XL 330701-00-24-90-01-00 11 mm Proximity Probe

Bently Nevada 3300 XL 11mm Proximity Probe – High-Performance Vibration Monitoring

Premium quality proximity probe for precise vibration and position measurement in industrial machinery. Designed for durability with stainless steel casing and PPS probe tip. Ideal for harsh environments.

Product Description

The Bently Nevada 3300 XL 11mm Proximity Probe (Model: 330701-00-24-90-01-00) ensures reliable machinery monitoring. Features a 9-meter triaxial cable with ClickLoc connector, 1/2-20 UNF thread, and wide temperature range (-51°C to +177°C). Perfect for predictive maintenance.

Technical Data

• Brand: Bently Nevada
• Model: 3300 XL 11mm Proximity Probe
• Full Suffix: 330701-00–24–90–01–00
  • 00: Unthreaded length (0.0 in)
  • 24: Case length (2.4 in)
  • 90: Cable length (9.0 meters)
  • 01: Miniature coaxial ClickLoc connector
  • 00: No agency approval
• Probe Tip: PPS (Polyphenylene sulfide)
• Case Material: AISI 304 Stainless Steel
• Cable: 75 Ω triaxial, FEP insulated
• Resistance: 8.5 ± 1.1 ohms (9m length)
• Thread: 1/2-20 UNF (max engagement 0.75 in)
• Torque: 15.2 N•m (recommended), 45.2 N•m (max)
• Bend Radius: 25.4 mm (min)
• Temperature Range: -51°C to +177°C
• Weight: 0.17 kg

Key Features

• Robust Design: Stainless steel case & PPS tip for longevity.
• Wide Compatibility: Works with Bently Nevada 3300 monitoring systems.
• Easy Installation: 1/2-20 UNF thread for secure mounting.
• High Accuracy: Reliable vibration and position measurements.

Installation Guide

• Use recommended torque (15.2 N•m) for case threading.
• Avoid temperatures below -34°C to prevent seal damage.
• Ensure minimum bend radius (25.4 mm) for cable safety.
• Finger-tighten connectors (max torque: 0.565 N•m).

Shipping & Warranty

• Packaging: Protective casing with product manual.
• Shipping: FedEx, UPS, or DHL (express options available).
• Warranty: 12 months from delivery date.
