Bently Nevada 3500/61-02-02 Temperature Monitor | Industrial Temperature Monitoring Module
Product Overview

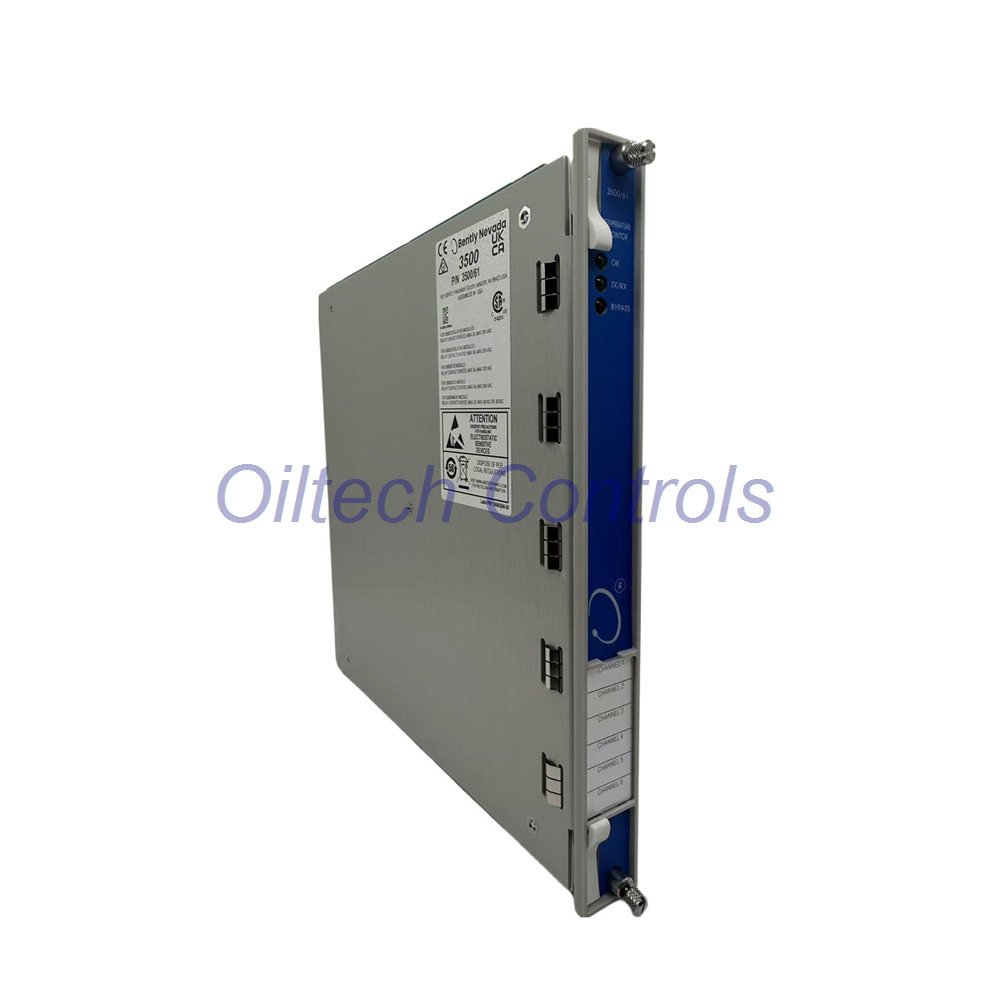

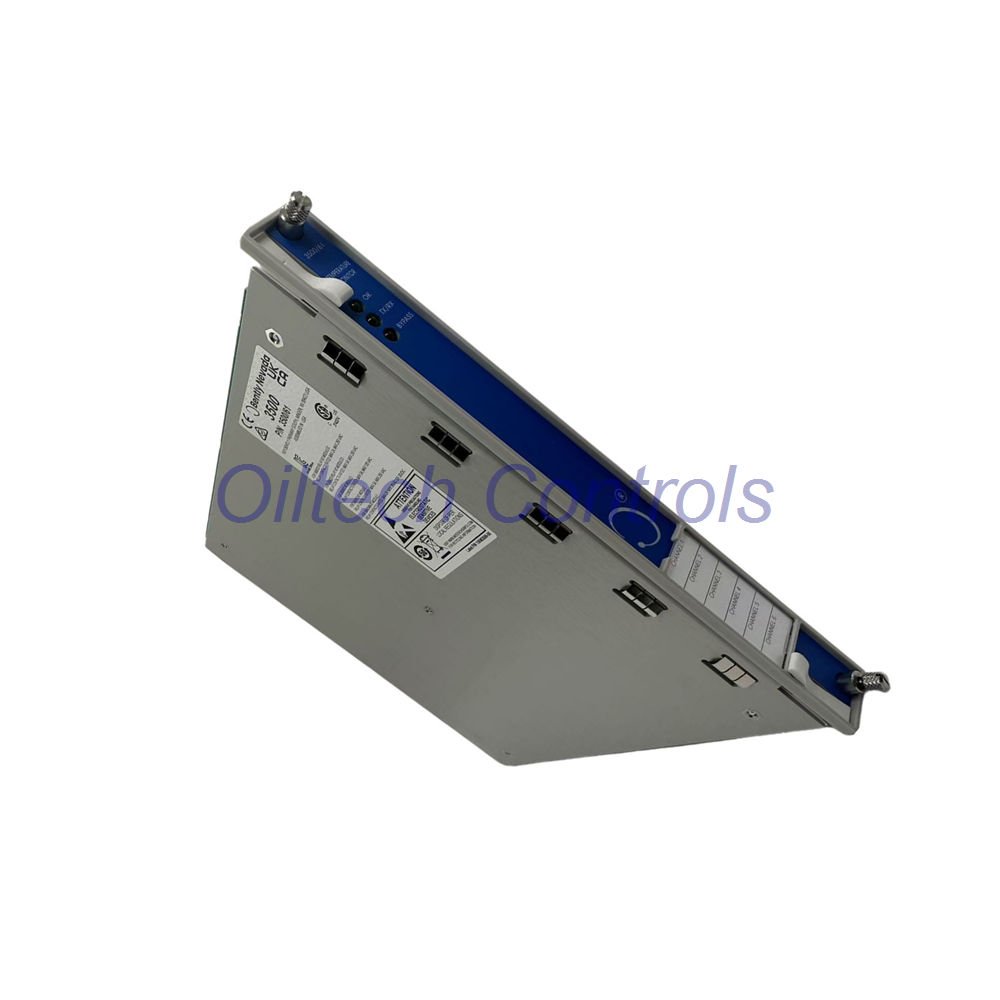

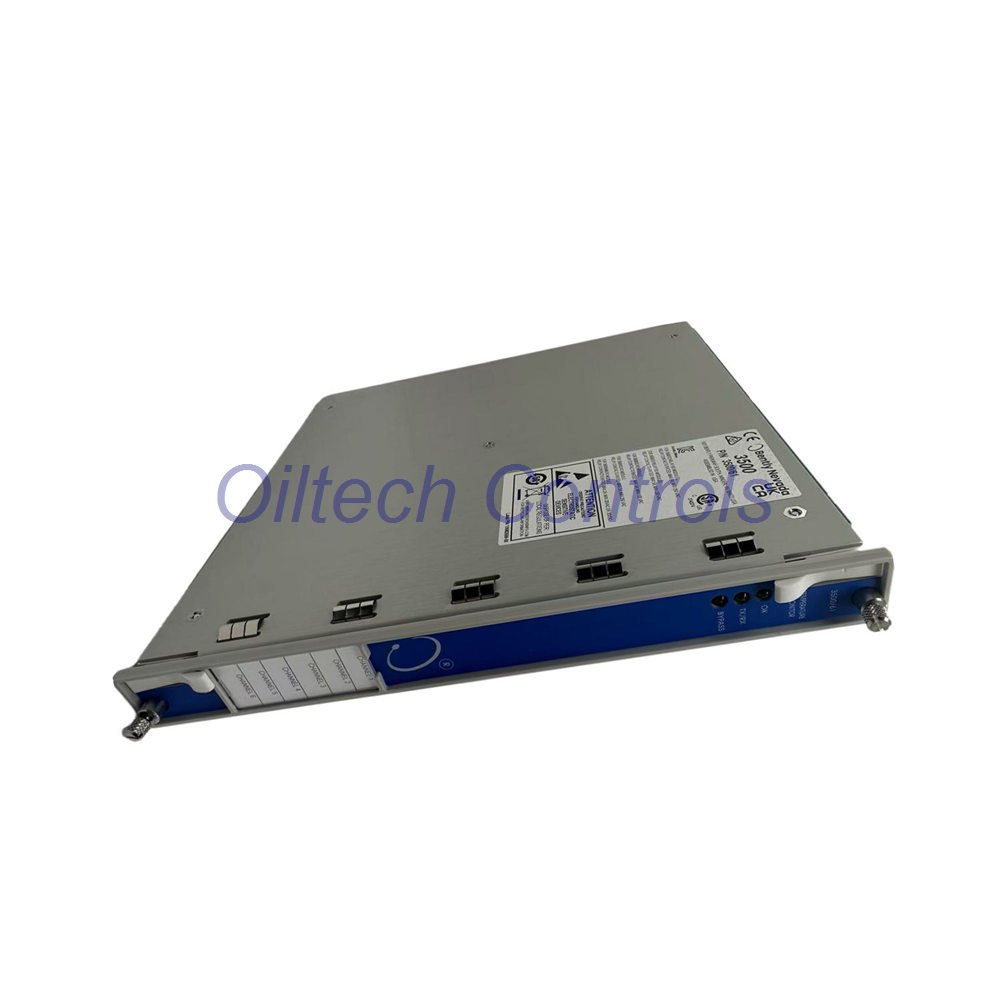

3500/61-02-02 is a high-reliability temperature monitoring module designed for the Bently Nevada 3500 Series machinery protection system.
It supports RTD and thermocouple inputs and provides recorder outputs for continuous monitoring.
The 3500/61 module helps monitor turbines, compressors, and rotating equipment.
Simple setup. Stable signal. Long service life.
Key Identification
- Manufacturer: Bently Nevada
- Model: 3500/61-02-02
- Product Type: Temperature Monitor with Recorder Outputs
- Origin: Made in U.S.A
- Condition: New & Original Factory Packing
- Warranty: 12 Months
Shipping: FedEx | UPS | DHL
Configuration Breakdown
3500/61-02-02
│
├─ 3500/61 → Temperature Monitor Module
│
├─ I/O Option : 02
│ ├─ RTD / Thermocouple Inputs
│ ├─ Non-isolated I/O
│ └─ External Termination
│
└─ Approval Option : 02
├─ ATEX
├─ IECEx
└─ CSA Class I Zone 2
Input Structure
Temperature Inputs
│
├─ Channels
│ └─ 1 to 6 sensors
│
├─ Thermocouples
│ ├─ Type E : -100°C to +1000°C
│ ├─ Type J : -18°C to +760°C
│ ├─ Type K : -18°C to +1370°C
│ └─ Type T : -160°C to +400°C
│
└─ RTDs
├─ 100Ω Platinum (α=0.00385)
├─ 100Ω Platinum (α=0.00392)
├─ 120Ω Nickel
└─ 10Ω Copper
Technical Performance
- Input impedance: 10 MΩ per lead
- Power consumption: 9 W nominal
- RTD excitation current: 925 ±15 µA
- Recorder output: 4–20 mA per channel
- Load resistance: 0–600 Ω
- Voltage compliance: 0–12 Vdc
- Resolution: 0.3662 µA per bit
- Channel update rate: <100 ms typical
- Digital signal filtering
- LED indicators: OK / TX-RX / Bypass
Isolation & Protection
- System isolation: 500 Vdc
- Channel isolation: 250 Vdc
- Fault-tolerant design
- Short-circuit protected outputs
- Stable reading during wiring faults
Accuracy
- Typical accuracy: ±1°C to ±3°C @25°C
- Copper RTD resolution: 1°C / 1°F
- Low long-term drift
- High repeatability measurement
Environmental Limits
- Operating temperature: −30°C to +65°C
- Internal barrier operation: 0°C to +65°C
- Storage temperature: −40°C to +85°C
- Humidity: 95% non-condensing
Mechanical Information
- Monitor size: 241.3 × 24.4 × 241.8 mm
- Monitor weight: 0.91 kg
- I/O size: 241.3 × 24.4 × 99.1 mm
- I/O weight: 0.45 kg
- Rack requirement: 1 front slot + 1 rear slot
Product Advantages
- Supports multiple sensor standards
- High measurement stability
- Continuous recorder outputs
- Hazardous area approvals
- Fast response monitoring
- Easy integration with 3500 racks
- Industrial long-life design
Short Product Description
- Reliable 3500/61-02-02 temperature monitor
- Supports RTD and thermocouple sensors
- Stable 4–20 mA recorder outputs
- Designed for industrial machinery protection
FAQ – Selection & Experience Guide
What sensors give the most stable results?
100Ω platinum RTD (α=0.00385) is recommended for most industrial applications.
When should isolated modules be selected?
Use isolated I/O when electrical noise or grounding issues exist.
Can it upgrade older monitoring cards?
Yes. Many systems replace older modules to improve accuracy and output stability.
RTD or thermocouple — which is better?
RTD gives higher accuracy. Thermocouple supports higher temperatures.
What installation issue is common?
Avoid configuring temperature ranges outside ambient limits. It may cause unstable readings.
