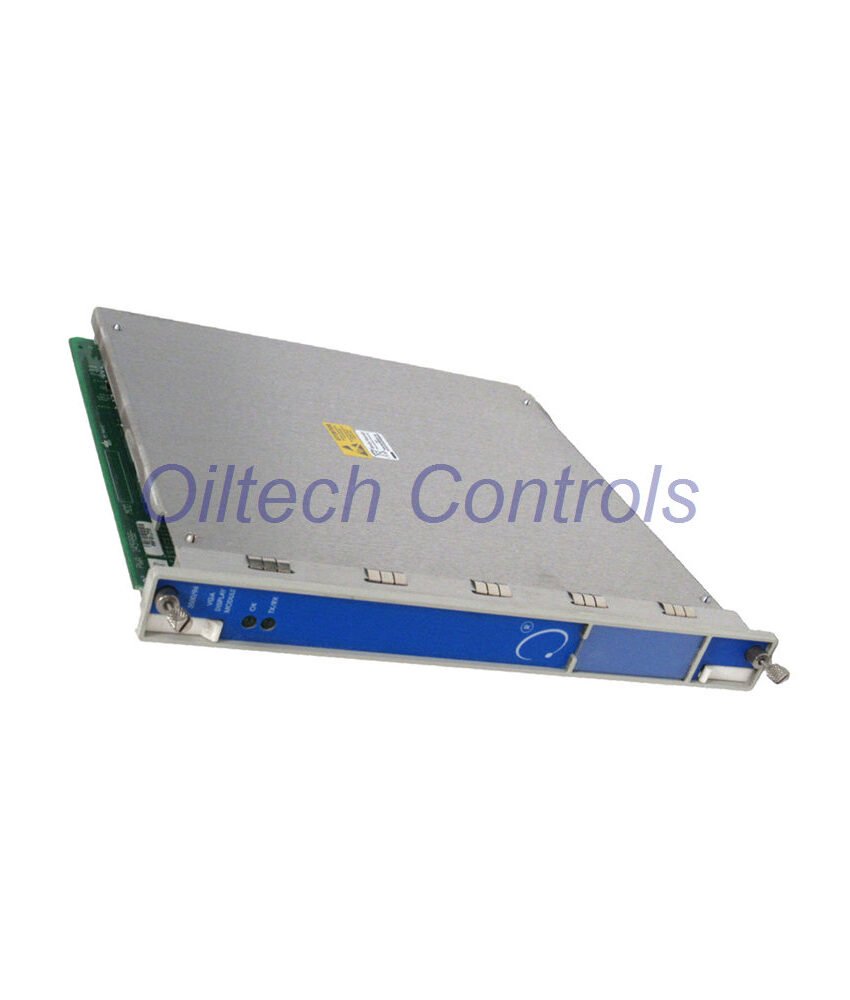

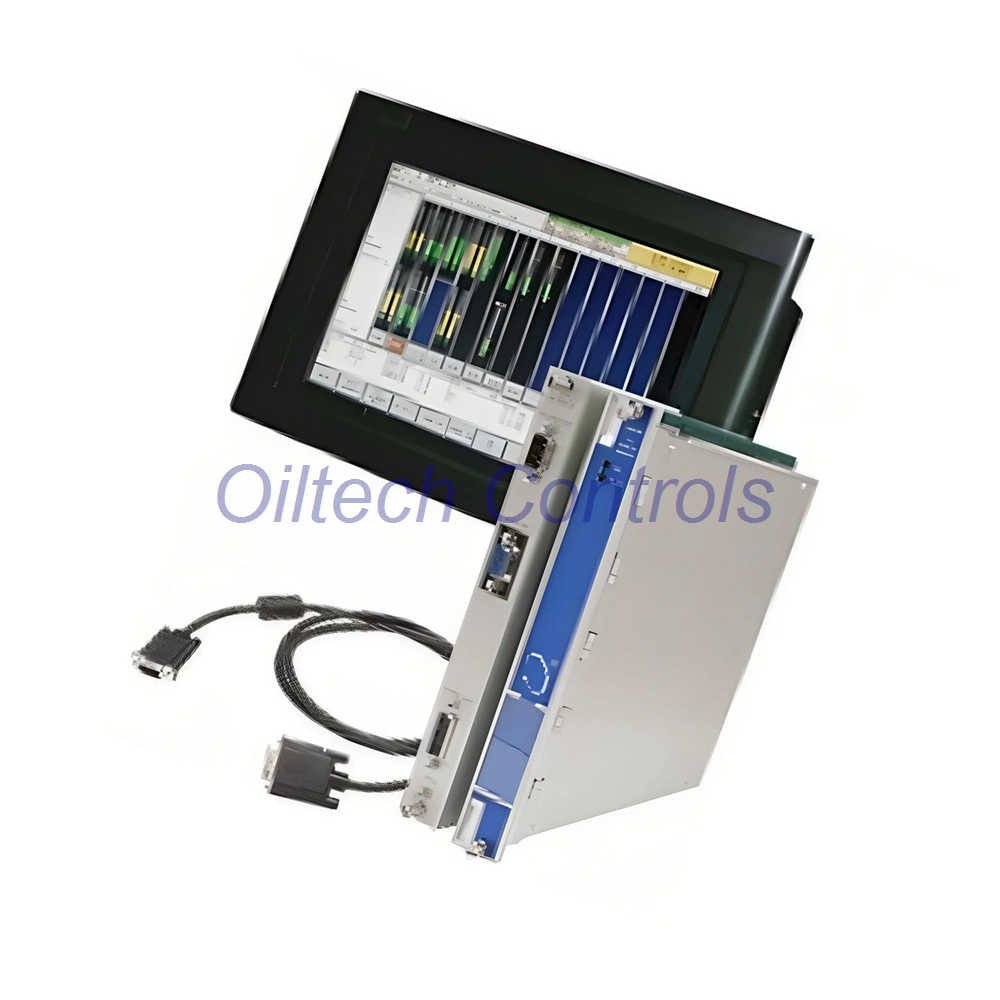

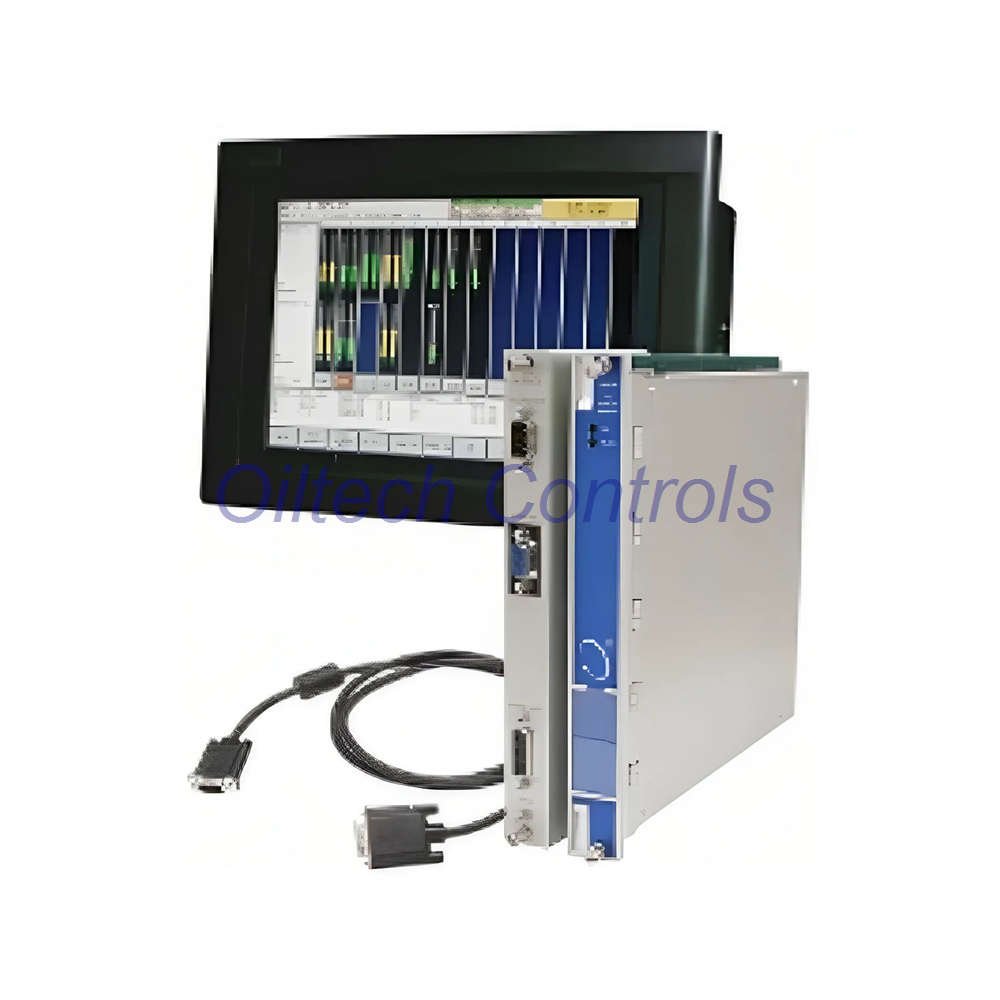

Product Snapshot
- Manufacturer: Bently Nevada
- Model: 3500/94M-03-00-00
- Product Type: VGA System Display
- Designed for 3500 monitoring racks.
- Shows machine status and operating values.
- Industrial 10-inch touch display.
- Panel mounting hardware included.
- New and original factory packing.
- Warranty: 12 months.
Configuration Breakdown
- 3500/94M
- System Display Platform
- 03
- 10 inch display
- Panel mount installation
- 00
- No KVM extender cables
- 00
- No agency approval option
Main Product Features
- Real-time monitoring of rack data.
- Clear VGA graphical interface.
- Touch control improves operation speed.
- Industrial LCD with LED backlight.
- Stable performance in harsh environments.
- Low power design reduces heat.
- Easy front panel access.
- Fast communication with system modules.
Electrical and Signal Specifications
- Power Consumption: Max 4.6 W
- Power Input: 24 Vdc supply
- Operating Current: < 500 mA
- Inrush Current: 3.5 A at 24 Vdc
- Network: High-speed system communication
- RS232 Port: Touch controller data
- VGA Output: Analog RGB with sync signals
- Front Port: Power out, VGA out, touch input
- Status LED: Module health indication
- TX/RX LED: Communication activity
Display Performance
- Screen Size: 10 inch diagonal
- Touch Type: Resistive touch interface
- Backlight: LED industrial grade
- Viewing clarity optimized for control rooms.
- Industrial hardened construction.
- IP54 protection against dust and spray.
- Supports face, rack, panel, and independent mounting.
Environmental Limits
- Operating Temperature: −20°C to 65°C
- Storage Temperature: −40°C to 85°C
- Humidity: Up to 95% non-condensing
- Display humidity range: 10%–85% RH
- Designed for industrial environments.
Mechanical Characteristics
- Display Module Size: 241.3 × 24.4 × 241.8 mm
- I/O Module Depth: 99.1 mm
- Display Weight: 0.73 kg
- I/O Module Weight: 0.34 kg
- Monitor Weight: 4.0 kg shipping
- Panel Cutout: 342.9 × 228.6 mm
Rack Installation Requirements
- Monitor Module: 1 full-height front slot.
- I/O Module: 1 full-height rear slot.
- Requires 3500/22 TDI module.
- Works with compatible rack firmware.
Compliance and Certifications
- FCC Part 15 compliant.
- EN 61000-6-2 EMC immunity.
- EN 61000-6-4 emissions standard.
- UL EN 61010-1 safety certified.
- CSA C22.2 electrical safety.
- RoHS Directive 2011/65/EU compliant.
- CE approved industrial equipment.
- Class I Division 2 display approval.
Additional Technical Advantages
- Fast graphical response improves diagnostics.
- Reliable data visualization.
- Supports continuous monitoring operation.
- Designed for vibration monitoring systems.
- Long service life electronics.
- Reduced maintenance needs.
Shipping and Warranty
- Warranty Period: 12 months.
- Original anti-static packaging.
- Worldwide shipping available.
- Courier options: FedEx, UPS, DHL.
Professional FAQ
- Q: Does this display replace older 3500 monitors directly?
- A: Yes. It installs into standard rack slots without modification.
- Q: What improves visibility in control rooms?
- A: LED backlight gives stable brightness and clear graphics.
- Q: When should engineers add a heated enclosure?
- A: When ambient temperature drops below −20°C.
- Q: Why is the TDI module required?
- A: It transfers system data to the display interface.
- Q: How to choose panel mount versus rack mount?
- A: Panel mount suits operator stations. Rack mount fits cabinets.
