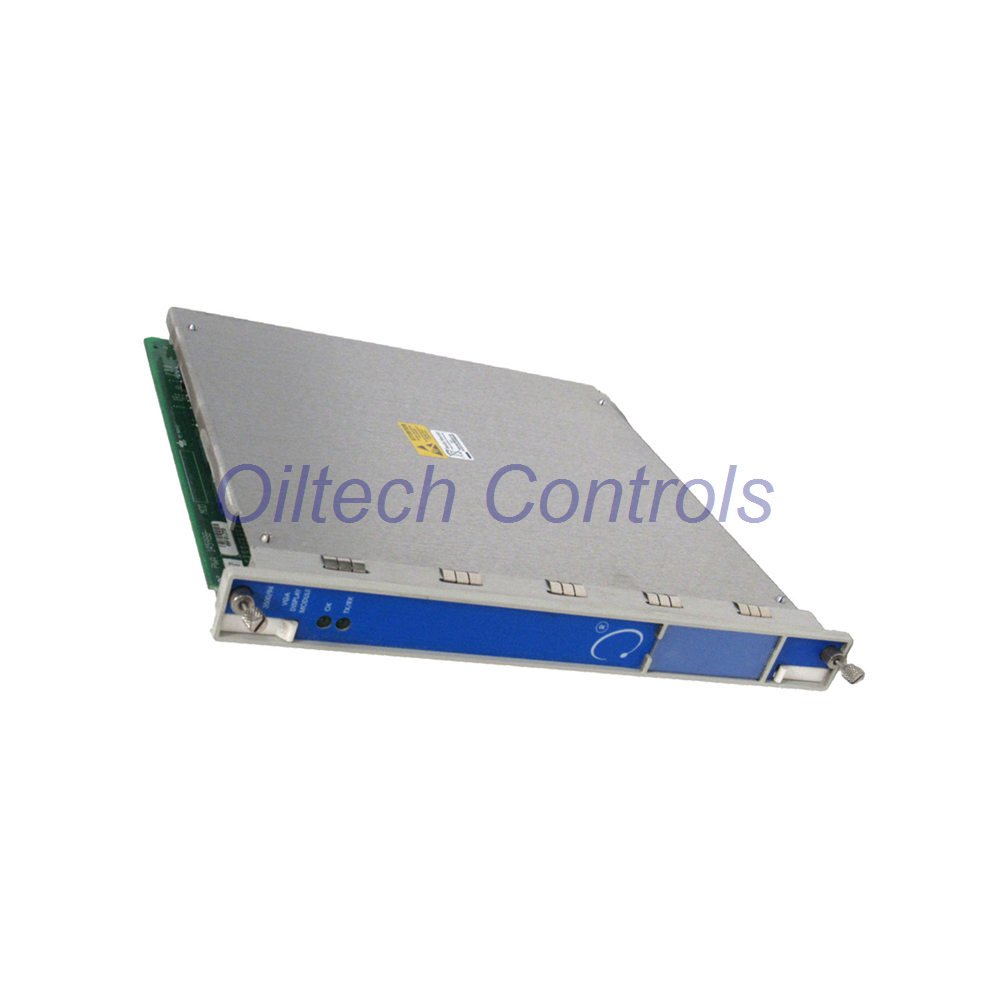

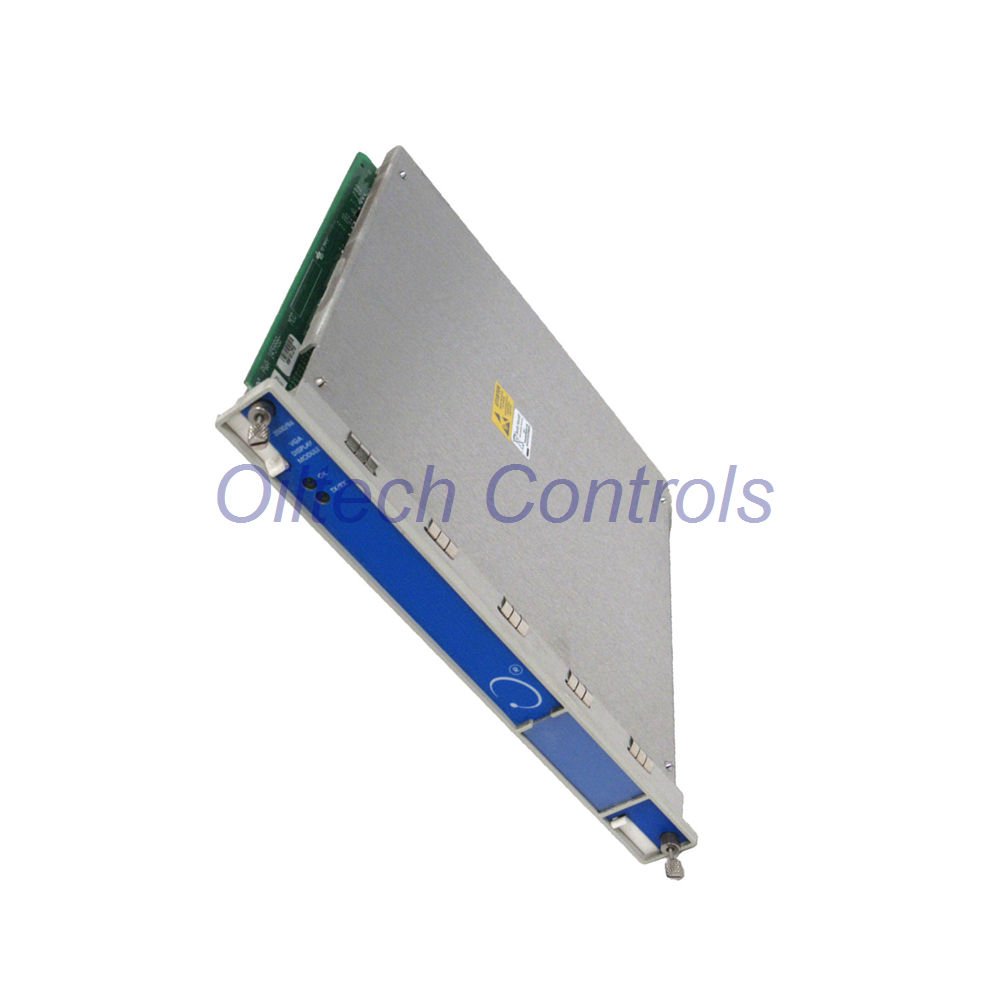

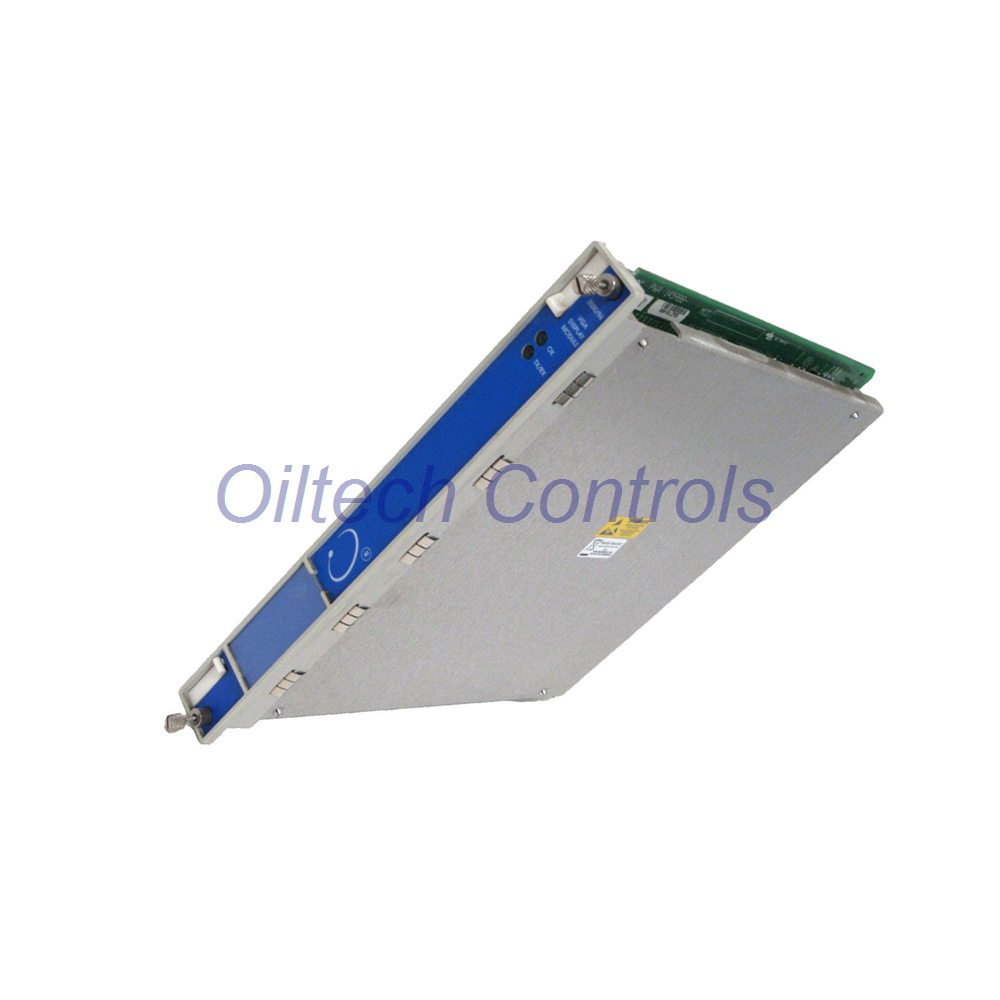

Bently Nevada 3500/94M-07-00-00 VGA Display Module
Manufacturer: Bently Nevada
Model: 3500/94M-07-00-00
Product Type: VGA Display Router Box
Origin: Made in U.S.A
Product Overview
- Original 3500/94M router box
- Designed for 3500 rack system
- 24 Vdc powered module
- Supports multi-rack display routing
- Stable VGA and RS232 signal output
Electrical Specifications
- Power Input: +24 Vdc ±6%
- Input Range: 22.5–25.5 Vdc
- Power Consumption: 4.7 W max
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5–95% non-condensing
Signal Interfaces
Inputs
- 4 × VGA video inputs
- 4 × RS232 touch control inputs
Outputs
- 1 × VGA video output
- 1 × RS232 output
- OK Status LED indicator
Configuration Breakdown
3500/94M-AA-BB-CC
AA – Display & Mounting
07
Router Box
No display included
BB – KVM Extender / Router Cable
00
No cable
CC – Agency Approval
00
None
Multi-Rack Setup Guide
- Rack 1: Install router box with router cable (3500/94M-07-12-XX)
- Rack 2: Install display unit with router cable (3500/94M-02~06-12-XX)
- Rack 3 & 4: Install router box cables only (3500/94M-00-12-XX)
Key Advantages
- Compact industrial design
- Low heat output
- High signal stability
- Easy rack installation
- Long service life
- Factory tested unit
Warranty & Shipping
- 12 Months Warranty
- 100% tested before shipment
- Fast delivery via DHL, UPS, FedEx
- Secure export packing
Contact Email: info@oiltechcontrols.com
WhatsApp: +86 158 8020 0923
FAQ
1. Is the display included?
No. Option 07 is router box only.
2. Can one unit serve multiple racks?
Yes. It supports centralized routing for multi-rack systems.
3. What power supply should I use?
Use stable 24 Vdc industrial power supply within range.
4. How do I choose the correct option?
Select AA option based on whether you need a display or router only.
5. What causes most failures?
Unstable voltage and poor grounding are common causes.
