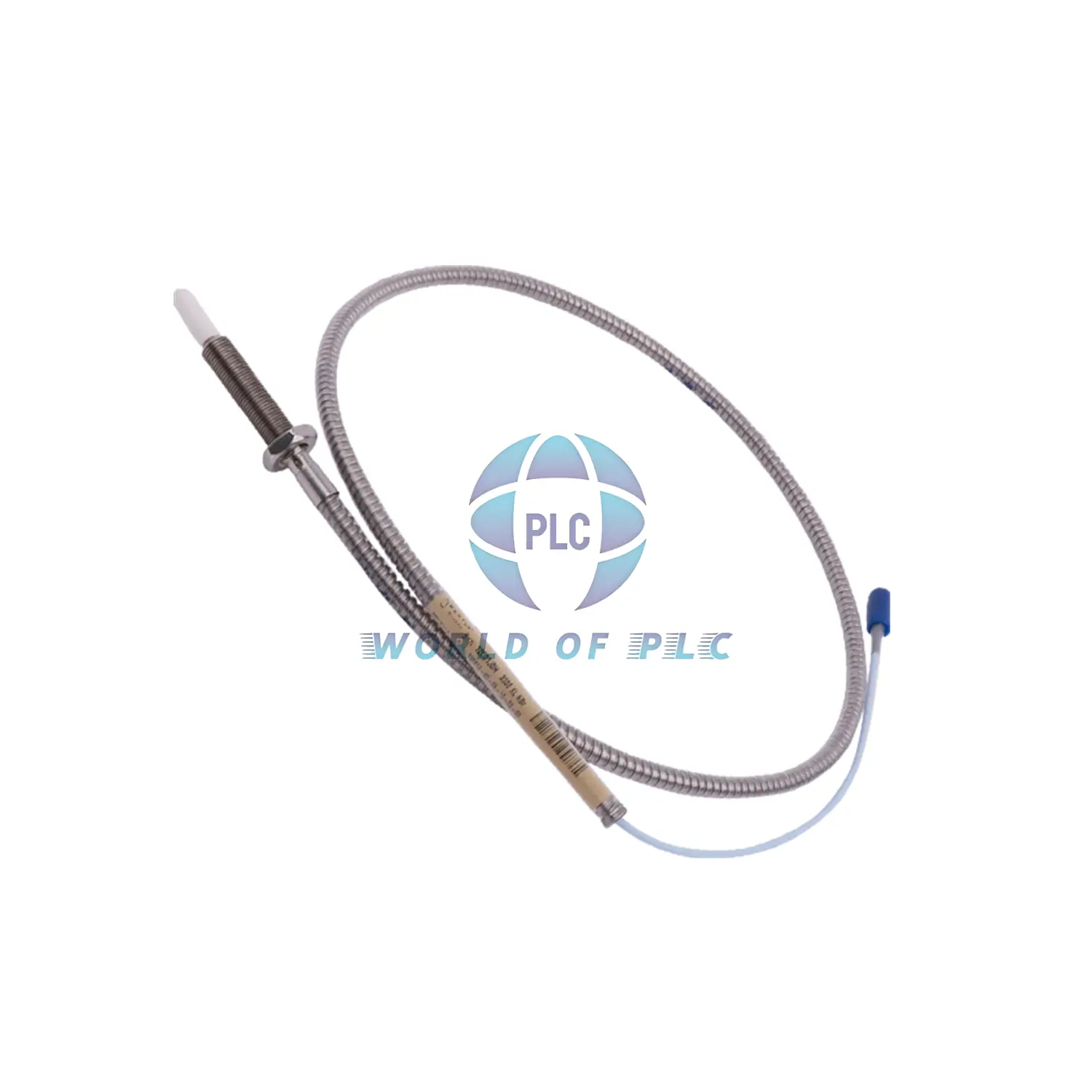

Bently Nevada 5.0m FluidLoc Cable NSv Probe | 330904-00-15-50-12-00

Bently Nevada 3300 NSv Long Cable Proximity Probe

Meet the Bently Nevada 330904-00-15-50-12-00 with extended 5.0 meter reach. This vibration sensor features chemical-resistant FluidLoc cable protection. Perfect for demanding industrial applications where distance matters.

Technical Specifications

• Complete Model: 330904-00-15-50-12-00
• Measurement Range: 1.5 mm linear (0.25 to 1.75 mm)
• Output Sensitivity: 7.87 V/mm (±12.5% tolerance)
• Frequency Range: 0 to 10,000 Hz (±3 dB)
• Linearity Accuracy: Better than ±0.06 mm error
• Electrical Resistance: 5.3 ± 0.7 ohms (5m cable)
• Cable Type: 75 ohm coaxial with FEP insulation
• Connector Style: Miniature coaxial ClickLoc
• Case Material: 304 stainless steel
• Probe Tip: PPS polymer for chemical resistance

Installation Specifications

• Optimal gap setting: 1.0 mm from target surface
• Maximum installation torque: 0.56 N•m (hand tight only)
• Minimum target diameter: 13 mm recommended
• Cable bend radius: Minimum 25.4 mm required
• Thread engagement: Maximum 12 mm depth

Package Includes

• Genuine Bently Nevada 3300 NSv proximity probe
• 5.0 meter length FluidLoc protected cable
• ClickLoc connector with protective cover
• Factory sealed packaging ensuring quality
• International shipping via FedEx, UPS, DHL

Technical Questions Answered

• What makes the FluidLoc cable special?
  The FluidLoc design provides superior protection against oils, chemicals, and moisture in challenging industrial environments.
• How does the 5.0 meter length affect performance?
  The longer cable maintains signal integrity up to 10 kHz while allowing installation flexibility in large machinery setups.
• Can this probe handle high-vibration applications?
  Yes, the armored M8x1 thread and robust construction ensure reliable performance in high-vibration environments.
• What maintenance does this probe require?
  The unit requires minimal maintenance thanks to its sealed design and chemical-resistant materials.
• Is calibration required after installation?
  The probe maintains stable calibration, but we recommend verifying system performance during commissioning.

Download Technical Documentation

• Access complete installation guidelines and specifications
• Includes performance graphs and wiring diagrams
• Download Full 3300 XL NSv System Datasheet
