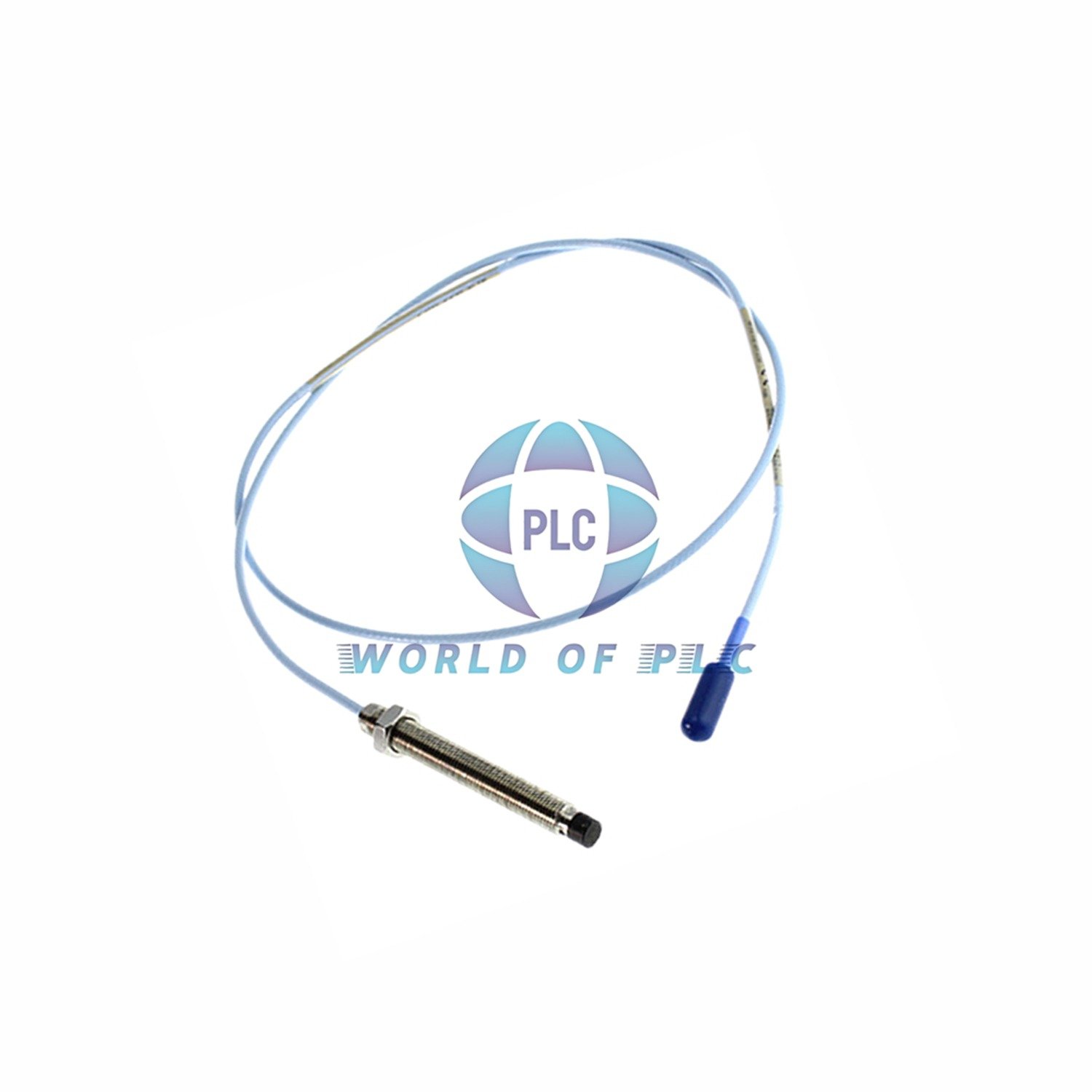

Bently Nevada 5mm Proximity Probe 330171-20-55-05-02-CN

Bently Nevada 330171-20-55-05-02-CN Industrial Vibration Sensor

Complete Model Number Explanation

Enhanced Technical Specifications

• Power Range: -17.5V to -26V DC (±5%)
• Current Consumption: <12mA typical
• Output Characteristics: 50Ω impedance
• Probe Resistance: 7.45Ω (±0.50Ω)
• Thread Details: 1/4-28 UNF (6.35mm)
• Max Engagement: 0.375″ (9.53mm)
• Cable Specs: 75Ω triaxial, FEP jacket
• Weight: 0.323kg (11.4oz)

Installation Made Simple

• Mounting Torque: 45 in-lbs (optimal)
• Absolute Maximum: 65 in-lbs
• Cable Management: 1″ min bend radius
• Target Distance: 1.27mm ideal gap
• Drill Size: #3 or larger for threads

Professional FAQs

• What does the CN suffix indicate? Meets specific country certification requirements
• Can this probe measure axial position? Yes, when properly configured
• Is the cable length customizable? Available in 0.5m to 9m options
• What maintenance is needed? Periodic gap verification recommended
• How shock-resistant is it? Withstands 10g vibration levels

What’s Included

• 1 × Bently Nevada 330171-20-55-05-02-CN probe
• 12-month product warranty
• Fast shipping via FedEx/UPS/DHL
• U.S. manufactured quality
