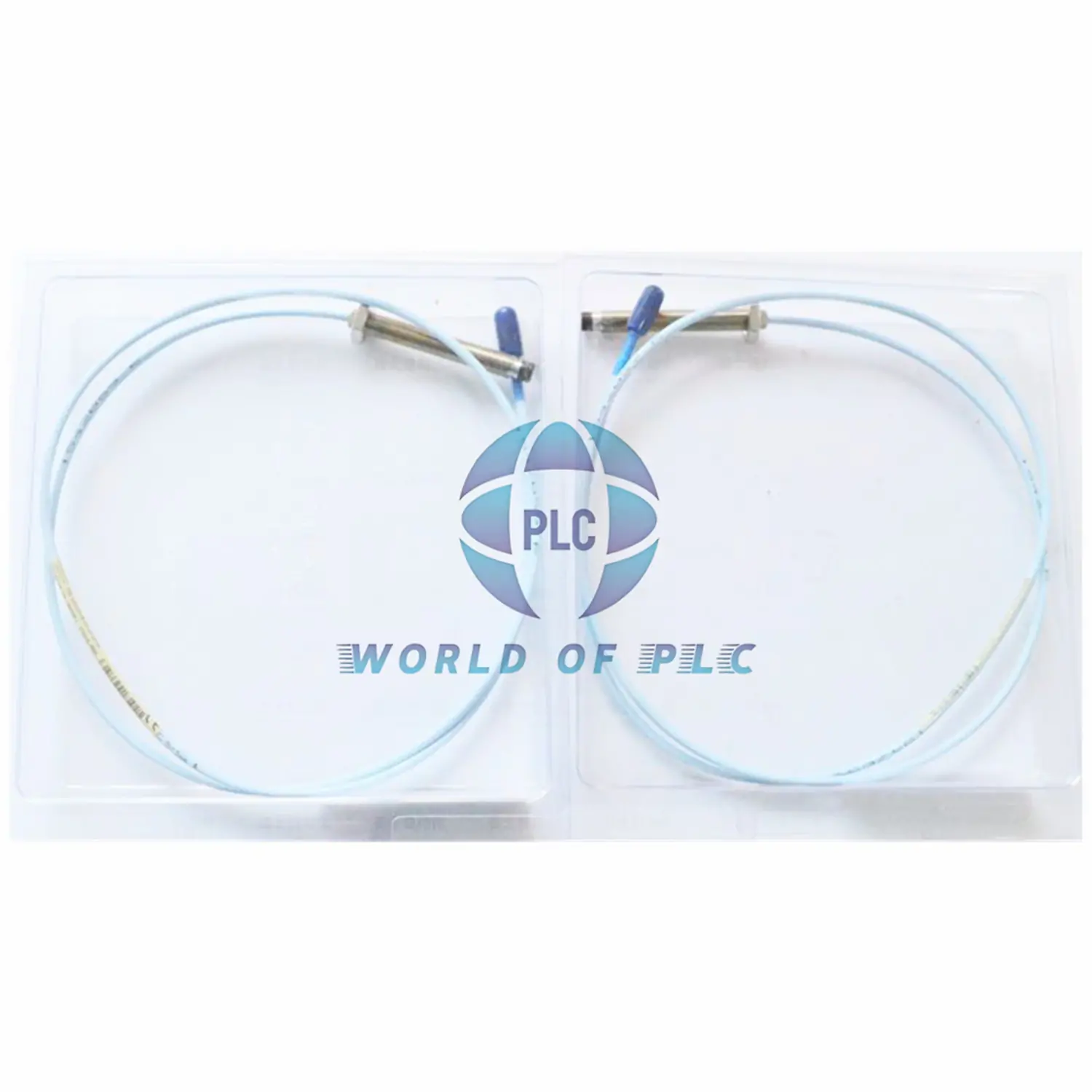

Bently Nevada 5mm Proximity Probe | 330172-00-20-90-02-00

Bently Nevada 330172-00-20-90-02-00 Long-Reach Vibration Sensor

Model Configuration Decoder

• 330172 – 5mm armored probe series
• 00 – Fully threaded (0″ unthreaded)
• 20 – 2.0″ case length
• 90 – Extra-long 9.0m (29.5ft) cable
• 02 – Standard ClickLoc connector
• 00 – No special certifications needed

Key Advantages

• Super-long 9 meter cable for flexible installation
• Rugged 304 stainless steel construction
• Chemical-resistant PPS sensing tip
• Gold-plated connectors for reliable signals
• Made in USA quality

Extended Specifications

• Cable resistance: 9.87Ω ±0.90
• Voltage range: -17.5V to -26V DC
• Current draw: <12mA
• Output impedance: 50Ω
• Temperature range: -35°C to +177°C
• Cable type: FEP-insulated triaxial
• Weight: 0.323kg

Installation Guide

• Use #3 drill bit or larger for mounting
• Recommended torque: 45in-lb
• Max thread depth: 0.375″
• Maintain 1″ minimum cable bend
• Protect from temperatures below -34°C

Technical Questions Answered

• Why choose 9m cable? For distant monitoring points
• How durable is the cable? FEP insulation resists oils/chemicals
• What’s the max pull force? 50lbs on all connections
• Can I use different lengths? Standard options 0.5m-9m
• Why armored design? Protects against physical damage
