Bently Nevada 5mm Proximity Probe | 330172-04-12-05-02-CN

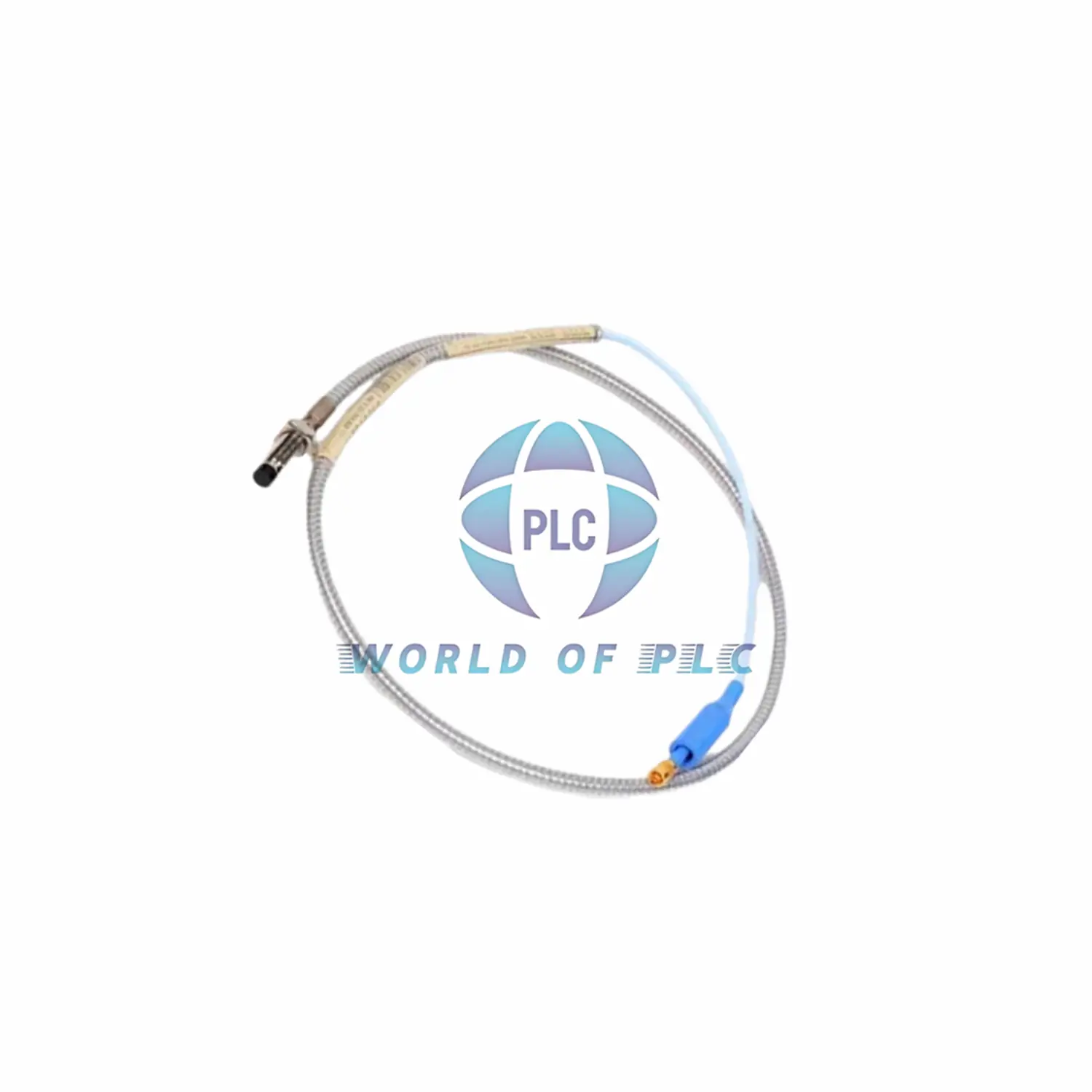

Bently Nevada 330172-04-12-05-02-CN 5mm Proximity Probe with Armor

Description

The Bently Nevada 330172-04-12-05-02-CN is a high-performance 5mm proximity probe designed for precise vibration and position monitoring. Featuring a 1/4-28 UNF threaded stainless steel case and PPS probe tip, it delivers reliable measurements in harsh industrial environments. The 0.5-meter cable with a ClickLoc connector ensures easy installation.

Technical Data

• Brand: Bently Nevada
• Model: 330172-04-12-05-02-CN
• Probe Type: 5mm, armored
• Thread: 1/4-28 UNF (max engagement 0.375 in)
• Unthreaded Length: 0.4 in (04)
• Case Length: 1.2 in (12)
• Cable Length: 0.5 m (05)
• Connector: Miniature coaxial ClickLoc (02)
• Agency Approval: Country-specific (CN)

Key Specifications

• Operating Voltage: -17.5 to -26 VDC
• Output Resistance: 50 Ω
• Probe Resistance: 7.45 ± 0.50 Ω
• Temperature Range: -35°C to +177°C
• Tensile Strength: 222 N (50 lbf)
• Case Torque: 5.1 N·m (recommended)
• Cable Bend Radius: 25.4 mm (min)

Installation Guide

Use a #3 or larger tap drill for 1/4-28 mounting. Avoid exceeding 7.3 N·m torque on the probe case. Maintain proper cable bend radius to prevent damage.

Compatibility

Works with Bently Nevada 3300 monitoring systems. Compatible with AISI 4140 steel targets and standard triaxial cables.

Certifications

Meets country-specific (CN) agency standards. Material certifications available upon request.

Package Includes

• 1x 5mm proximity probe (330172-04-12-05-02-CN)
• Installation manual

Shipping & Warranty

Shipped via FedEx, UPS, or DHL. 12-month warranty against defects.
