Bently Nevada 5mm Proximity Probe | 330174-00-06-10-02-CN

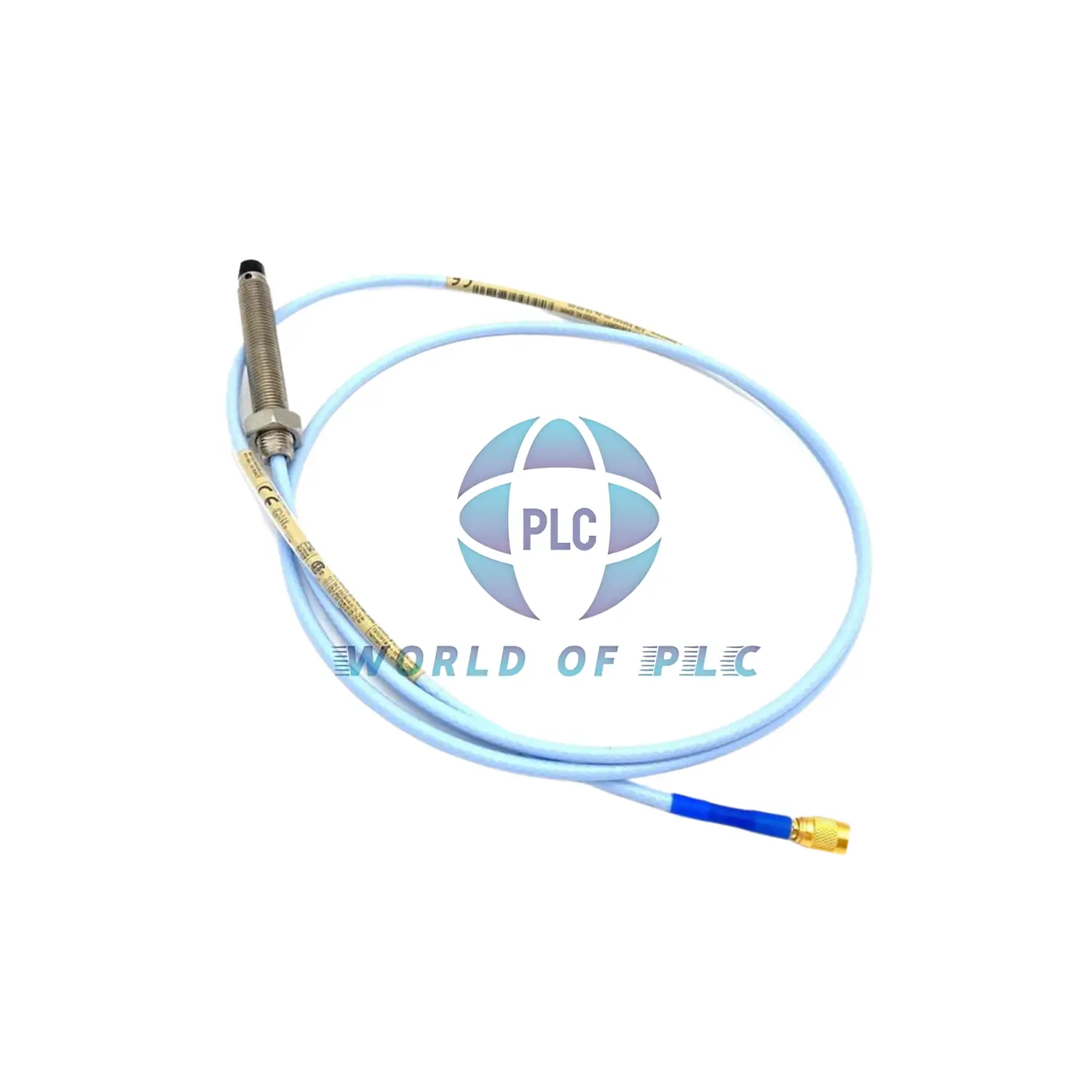

Bently Nevada 330174-00-06-10-02-CN – 5mm Proximity Probe with Armor

Product Overview

Industrial-grade **5mm proximity probe** for vibration monitoring. Made in the USA with **AISI 304 stainless steel case** and **PPS tip**. Works in extreme temps (-35°C to +177°C).

Model Breakdown: 330174-00-06-10-02-CN

• • 330174 – Base model (5mm probe, M8x1 thread, armored).
  • 00 – Unthreaded length: 0mm.
  • 06 – Case length: 60mm.

10 – Cable length: 1.0m (3.3 ft).

• 02 – Connector: Mini coaxial ClickLoc.
• CN – Country-specific approvals.

Key Specs

• Power: -17.5V to -26V DC, 12mA max.
• Resistance: 50Ω output; 7.59±0.5Ω (probe).
• Temp Range: -35°C to +177°C (-31°F to +351°F).
• Tensile Strength: 222N (50 lbf) – case & cable.
• Weight: 0.323 kg.
• Cable Bend Radius: 25.4mm (1.0 in) min.

Installation Notes

• Torque case to **5.1 N·m (45 in·lb)** max.
• Keep probe gap at **1.27mm (50 mils)** for best results.
• Avoid temps below **-34°C (-30°F)** to protect seals.

5 Quick FAQs

• Q: Can this probe measure non-metallic targets?
  A: No, designed for AISI 4140 steel or similar.
• Q: Is the cable waterproof?
  A: Yes, FEP insulation resists moisture and chemicals.
• Q: What’s the linear range at -23.5Vdc?
  A: Reduced range; use -24Vdc for full performance.
• Q: Can I cut the cable to custom length?
  A: No – cutting voids warranty.
• Q: Is calibration required?
  A: Pre-calibrated; pair with compatible monitors.

Warranty & Shipping

• 12-month warranty – covers defects in materials/workmanship.
• Fast global shipping via FedEx, UPS, or DHL.
