Product Introduction

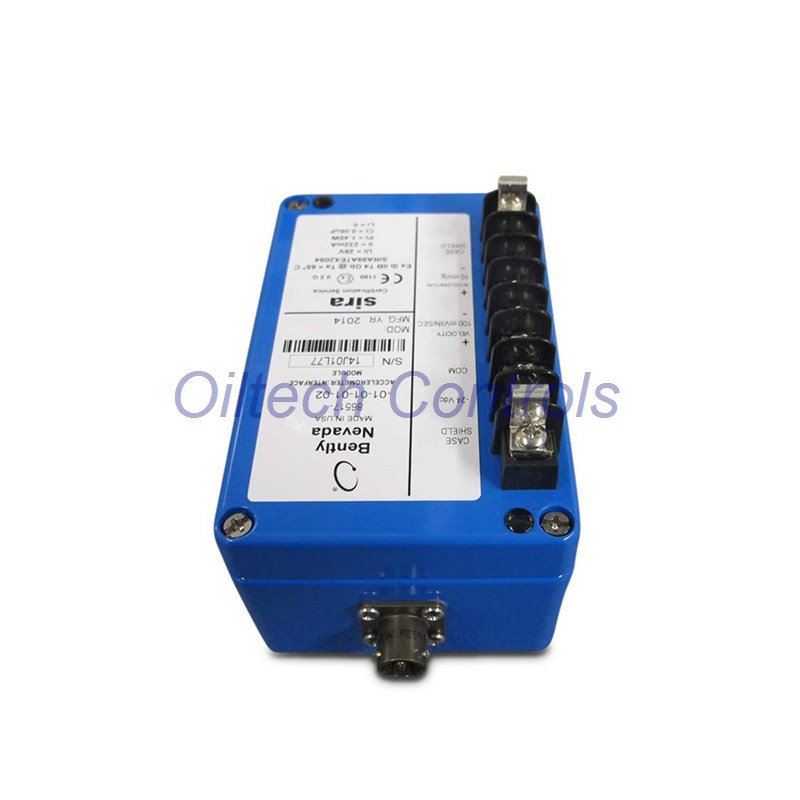

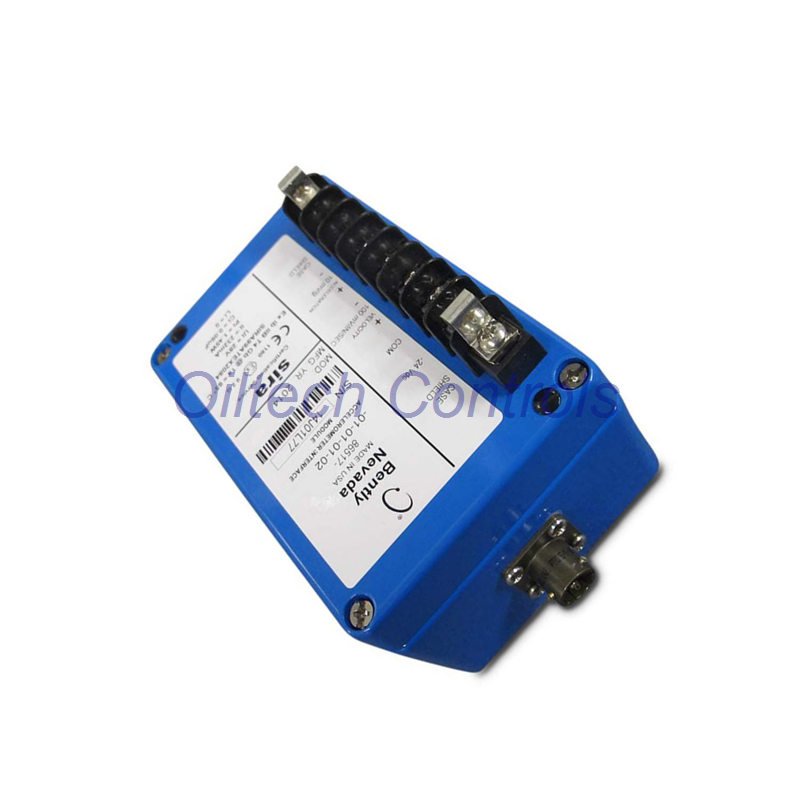

The Bently Nevada 86517-01-01-01-02 is an acceleration interface module.
It converts raw accelerometer signals into clean outputs.
It is used in vibration monitoring systems.
Basic Details
- Manufacturer: Bently Nevada
- Model: 86517-01-01-01-02
- Type: Acceleration Interface Module
- Country of Origin: U.S.A
Model Code Tree Structure
- 86517
- Acceleration interface base model
- 01
- Charge input sensitivity: 50 pC/g
- 01
- Filter: 25 Hz high pass
- Filter: 350 Hz low pass
- 01
- DC bias voltage: -10 Vdc
- 02
- CENELEC approval (SIRA)
Power Requirements
- Supply voltage: -23 to -26 Vdc
- Max current draw: 22 mA
- Low power consumption design
Acceleration Input
- Differential piezoelectric input
- Supports 50 pC/g and 100 pC/g sensors
- Max input capacitance: 8300 pF
- Overload limit: up to 100,000 pC peak
Signal Output Performance
- Acceleration output: 10 mV/g
- Output impedance: 50 ohm
- Dynamic range: up to 750 g
- Balanced and stable signal
Velocity Signal Processing
- Velocity derived from acceleration
- Accuracy: ±5% at 25°C
- Clean signal within filter band
Filter Characteristics
- 6th order Butterworth filters
- Roll-off: -36 dB per octave
- Optional filter pairs available
- Corner attenuation: -3 dB
Environmental Ratings
- Operating temperature: 0°C to 70°C
- Storage temperature: -40°C to 85°C
- Humidity: up to 95%, non-condensing
Mechanical Design
- Compact metal enclosure
- MS-3112-8-3P input connector
- 8-lug terminal output block
- Isolated mounting required
Main Advantages
- High signal accuracy
- Wide frequency response
- Strong overload protection
- Industrial-grade reliability
Warranty & Shipping
- 12-month factory warranty
- Fast worldwide delivery
- FedEx, UPS, DHL supported
Professional FAQ
- What sensors work best with this module?
Piezoelectric accelerometers with stable capacitance. - Why is the filter important?
It removes noise and improves signal clarity. - Is this module good for high vibration?
Yes. It supports high g-level inputs. - Can I change the filter later?
Filter options must be set when ordering. - How do I avoid grounding issues?
Always isolate the module from ground.
