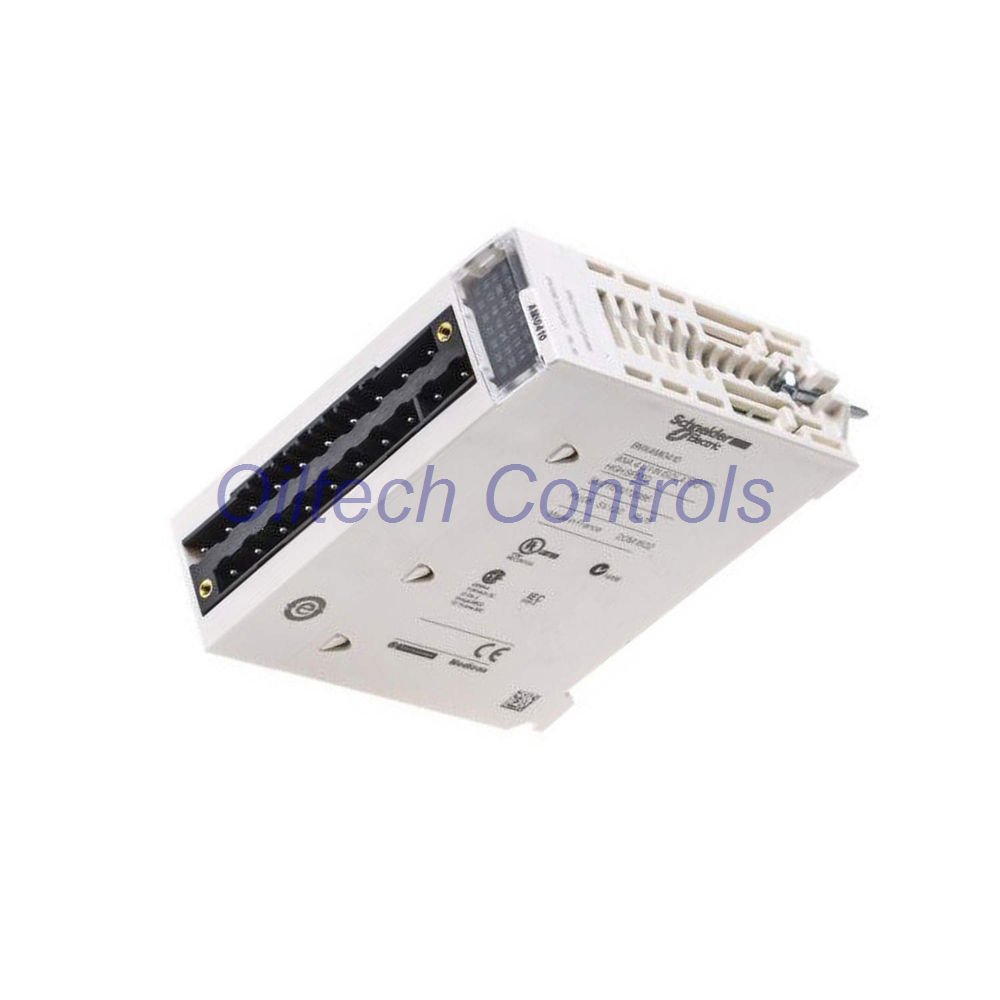

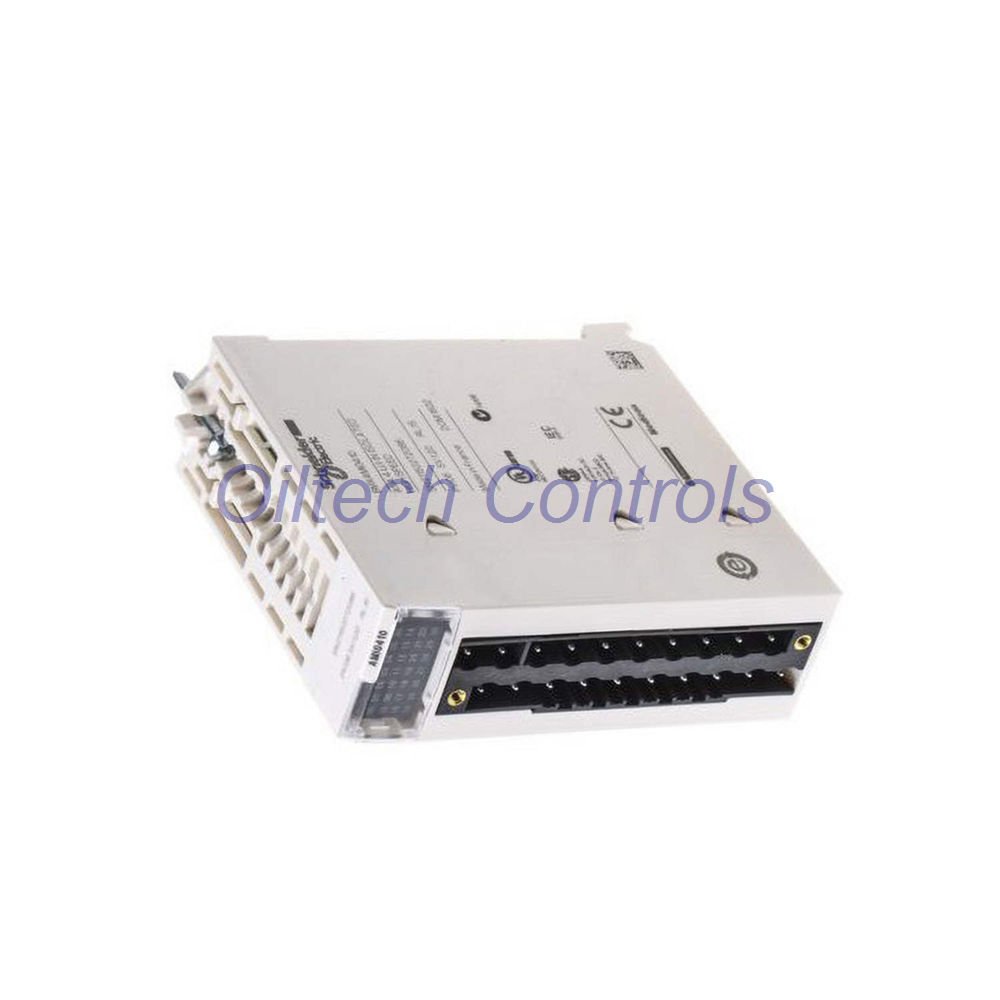

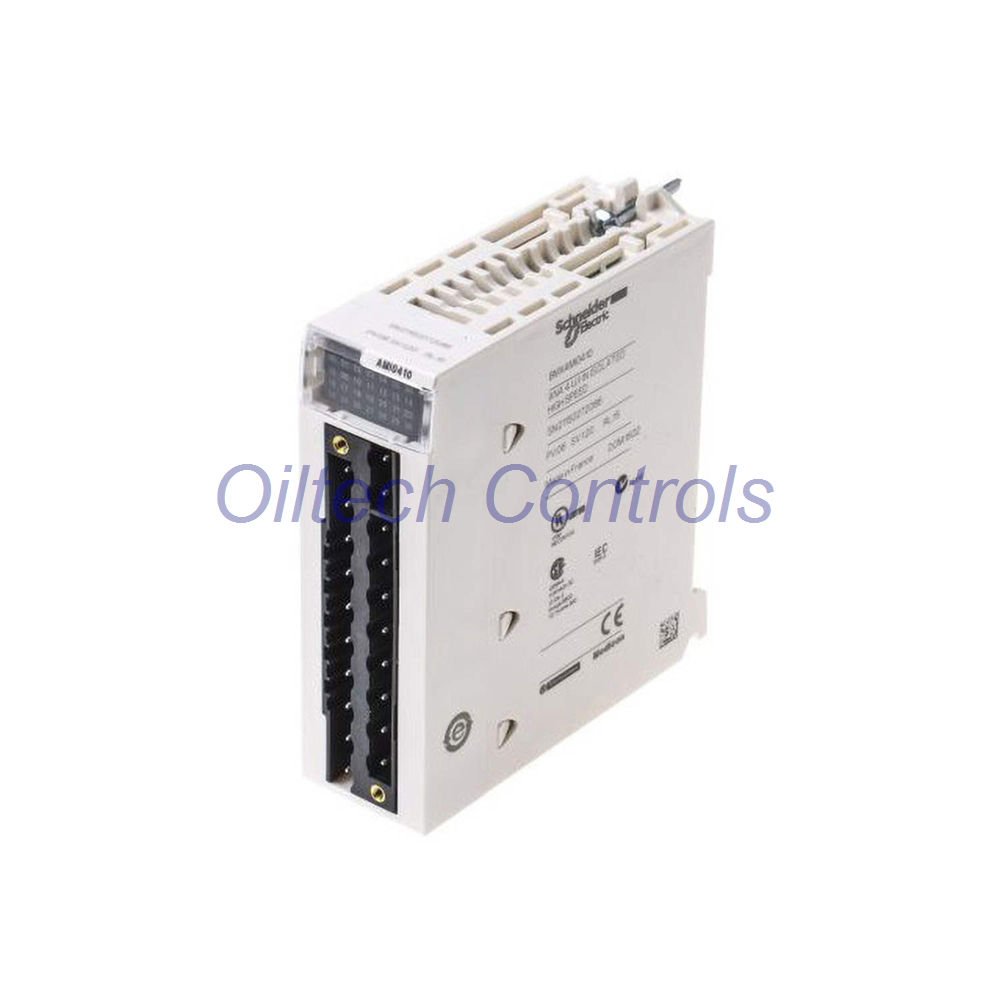

BMXAMI0410 – High-Speed Analog Input Module
BMXAMI0410 belongs to the Modicon X80 series. It is a 4-channel high-level analog input module. This module supports current and voltage signals. It offers 24-bit conversion with 16-bit resolution. The module is isolated between channels and bus. It fits demanding industrial environments.
Technical Specifications
| Brand | Schneider Electric |
| Model | BMXAMI0410 |
| Series | Modicon X80 |
| Inputs | 4 isolated, high level |
| Signal types | ±20 mA, 0-20 mA, 4-20 mA, ±10V, ±5V, 0-10V, 0-5V, 1-5V |
| Resolution | 16 bits (0.35 mV / 0.92 µA) |
| Accuracy (25°C) | ±0.075% (voltage), ±0.15% (current) |
| Temperature drift | 15 ppm/°C (voltage), 30 ppm/°C (current) |
| Fast cycle time | 1 ms + 1 ms per active channel |
| Nominal cycle | 5 ms (all 4 channels) |
| Common mode rejection | 120 dB |
| Isolation voltage | 300 V DC (channel-channel), 1400 V DC (channel-ground/bus) |
Environmental & Mechanical
- Operating temperature: 0…60 °C
- Storage temperature: -40…85 °C
- Humidity: 5-95% (non-condensing)
- Vibration: 3 gn, Shock: 30 gn
- Altitude: up to 5000 m (derating above 2000 m)
- Protection: IP20, protective coating TC
Diagnostic & Status
- LEDs: RUN (green), ERR (red), I/O (red)
- Per-channel green LED for channel diagnostics
- Internal recalibration for long-term stability
- Digital format: ±32000 (user scale) / ±10000 (default)
- Overload tolerance: ±30V or ±90mA (non-destructive)
Installation & Compatibility
- Connection: 1x 20-way connector
- Power consumption: 150 mA @3.3V DC, 45 mA @24V DC
- Weight: 0.143 kg
- Compatible with Modicon Quantum and M340 backplanes
- First-order digital filtering reduces noise
Ordering & Support
- Package: Module only (connector sold separately)
- Warranty: 12 months against defects
- Shipping: FedEx, UPS, DHL – worldwide
- Certifications: UL, CSA, CE, RCM, EAC, Merchant Navy
- Standards: EN/IEC 61131-2, UL 61010-2-201, CSA C22.2
Typical Applications
- Process control (flow, pressure, level)
- Machine automation with analog transducers
- High-speed data acquisition systems
- Replacement for obsolete analog cards in legacy systems
Diagnostic Capabilities
- Per-channel open-circuit detection
- Over-range / under-range indication
- Internal temperature monitoring
- Bus communication error reporting
- Fast cycle mode for time-critical loops
Frequently Asked Questions
Q: Can I mix voltage and current on the same module?
Yes, each channel is independently configurable for voltage or current.
Q: What is the update rate for 4 channels?
Nominal cycle is 5 ms. Fast mode gives 1 ms + 1 ms per channel.
Q: Is the module compatible with Modicon Quantum racks?
Yes, it works with Quantum backplanes via adapter. See Modicon Quantum compatibility notes.
Q: How do I reset the calibration?
The module performs internal recalibration automatically.
Q: What is the input impedance?
10 MOhm for voltage mode, 250 Ohm internal resistor for current.
