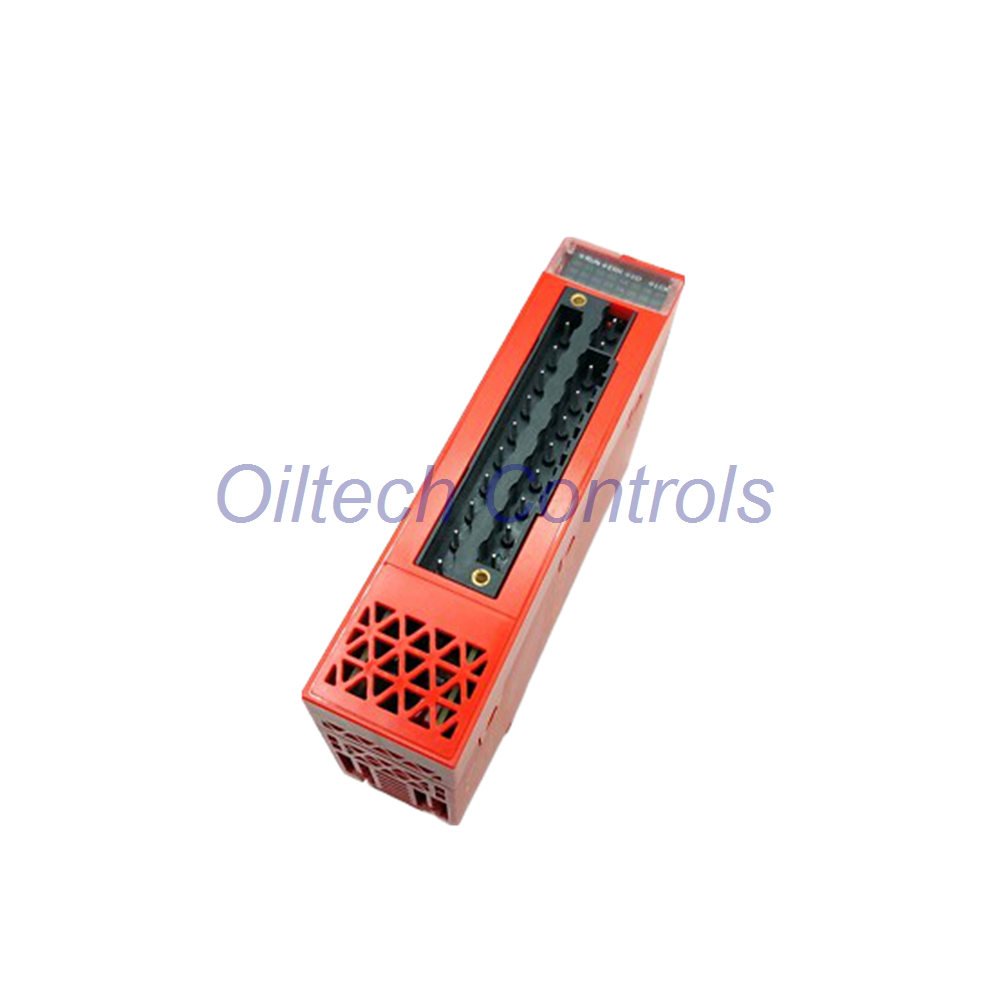

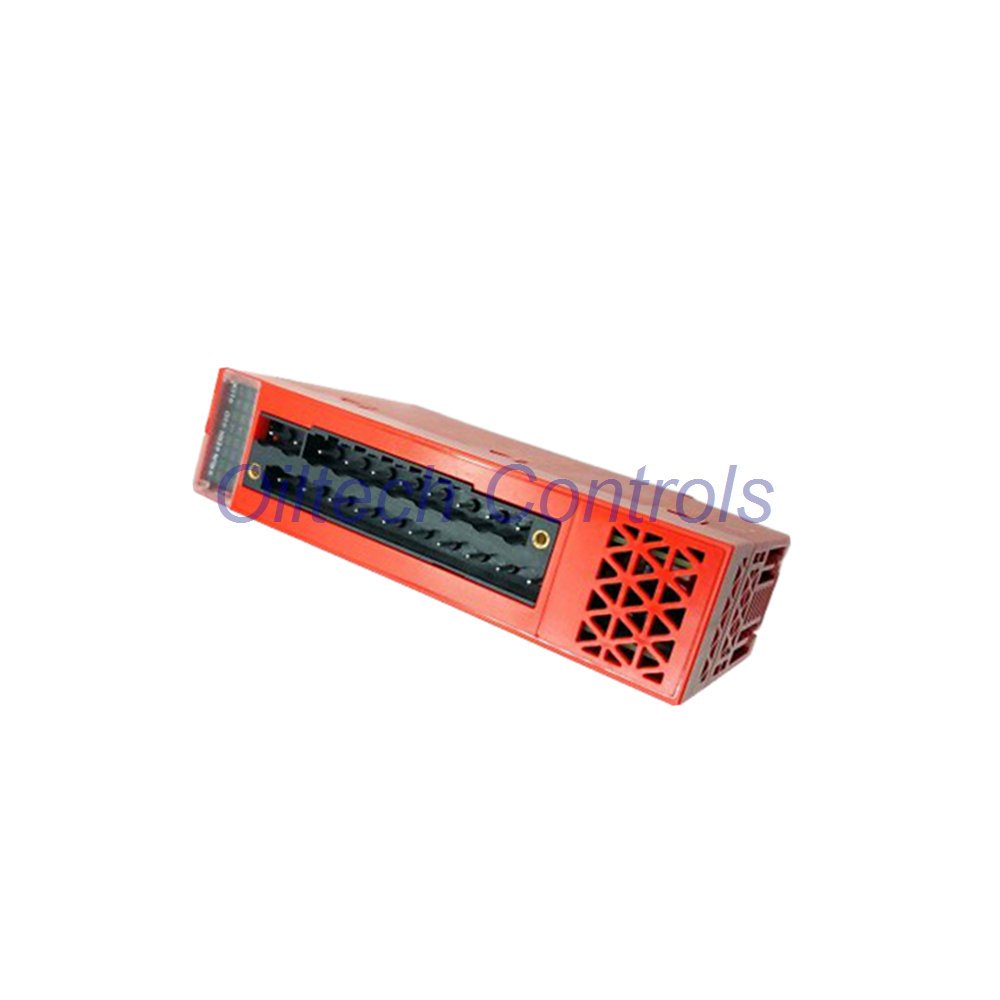

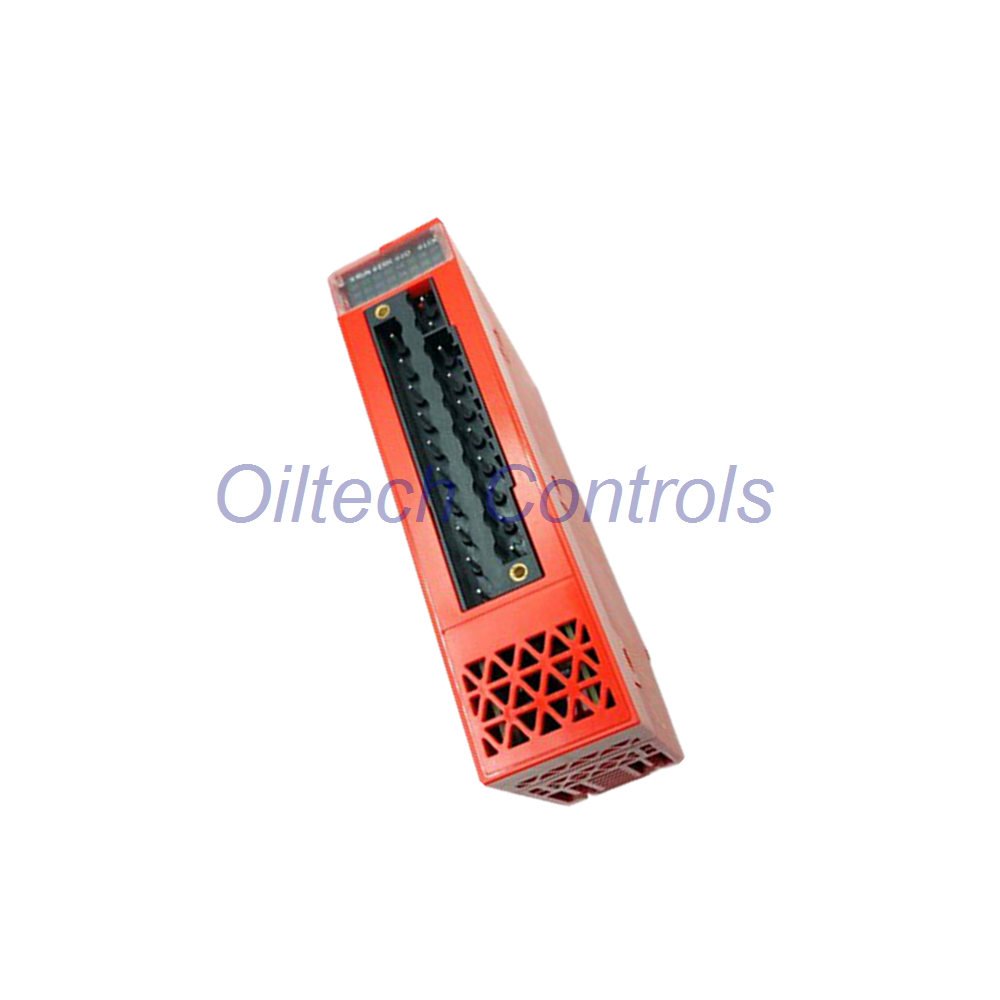

BMXSAI0410 Schneider Safety Input Module Fast Shipping

Technical Profile

• Brand & Series: Schneider Electric Modicon X80 Platform.
• Model Designation: BMXSAI0410 high-integrity analog safety module.
• Input Channels: 4 high-level, fully isolated current inputs.
• Signal Range: 4 to 20 mA nominal current loops.
• A/D Resolution: 16-bit analog-to-digital internal conversion circuitry.
• Channel Resolution: 13-bit effective resolution (0 to 12500 counts).
• Loop Impedance: Precision 286 Ohm internal conversion resistor.
• Resistor Precision: 0.1% accuracy with a 15 ppm/°C temperature coefficient.
• System Filtering: Onboard second-order digital filter reduces high-frequency noise.
• Read Cycle Time: Ultra-fast 6 ms processing time for all 4 channels.
• Crosstalk Attenuation: Minimum 120 dB channel-to-channel signal isolation.
• Isolation Ratings: 500 V DC channel-to-channel, 1500 V DC to ground/bus.
• Module Reliability: High MTBF of 463,000 hours for continuous operation.
• Chemical Resistance: Conformal coated class 3C4 chemical gas and 3S4 dust protection.

Hardware Architecture & Part Breakdown

• BMX: Standard Modicon X80 universal rack backplane form factor.
• S: Safety-certified internal coprocessor and hardware diagnostics.
• A: Analog signal processing interface.
• I: Input channel configuration.
• 04: 4 physical channel terminal connection density.
• 10: Isolated high-level 4-20mA current loop variant.

Target Applications & Compatible Equipment

• Critical pressure transmitter loops on natural gas pipelines.
• Continuous level monitoring sensors in hazardous chemical storage tanks.
• Temperature transmitter loops in petrochemical reactor vessels.
• Vibration monitoring loops on heavy gas turbine bearings.
• Flow meter transmitter loops in high-pressure steam distribution systems.

Oiltech Controls Review

• The BMXSAI0410 delivers elite performance in hazardous environments.
• True 500V channel-to-channel galvanic isolation prevents ground loop interference.
• Onboard second-order filtering ensures stable readings near high-frequency drives.
• TÜV safety certification simplifies compliance for safety-instrumented systems.
• Class 3C4 conformal coating defends internal circuits from corrosive sulfide gases.

Procurement & Global Logistics

• Product Condition: Brand new, original, and sealed in factory packing.
• Warranty Terms: Covered by our comprehensive 12-month factory warranty.
• Shipping Speed: Fast-track dispatch guaranteed within 24 to 28 hours.
• Courier Services: Express global shipping via trusted partners: DHL, FedEx, and UPS.

Frequently Asked Questions & System Selection

• Q1: What are the safety benefits of channel-to-channel isolation?

  A1: Isolation prevents field wiring faults on one channel from corrupting adjacent safety signals.

• Q2: Does this card require external calibration during installation?

  A2: No, the module features auto-recalibration using high-precision internal reference components.

• Q3: Can I run standard 2-wire loops on this safety module?

  A3: Yes, this module supports standard 2-wire, 3-wire, and 4-wire safety transmitters.

• Q4: How does the module react if a wire breaks in the field?

  A4: The 16-bit converter detects out-of-range low current and immediately flags a channel fault.

• Q5: What is the recommended terminal block for this 20-way module?

  A5: Use the standard 20-way screw terminal block or dedicated pre-wired safety cords.
