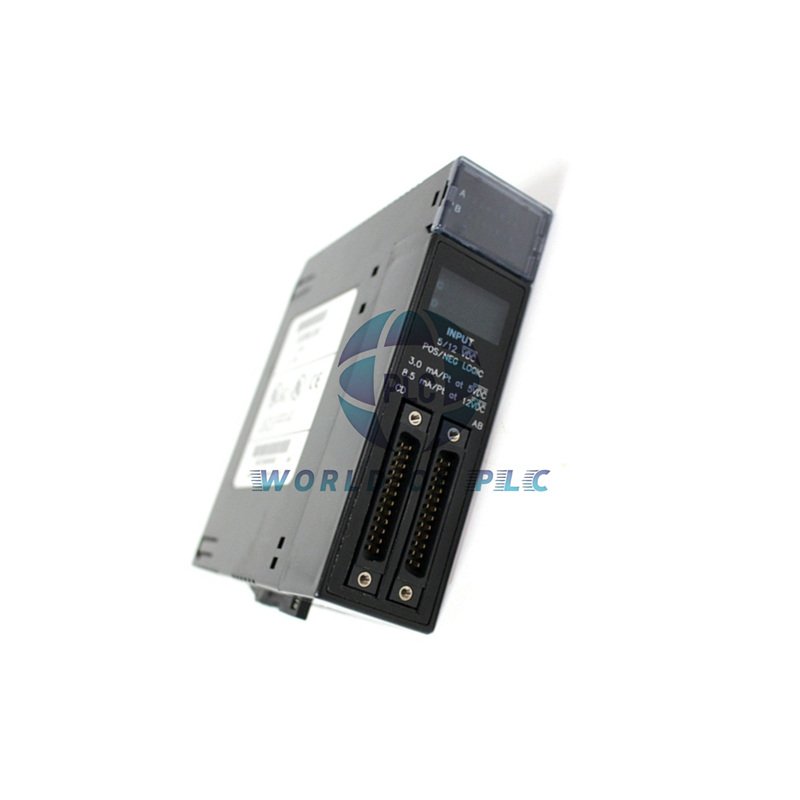

GE Fanuc IC693MDL654 5/12V DC 32-Channel TTL Input Module
The IC693MDL654 delivers high-density TTL input capability for Series 90-30 PLC systems. This 32-channel module supports both positive and negative logic for versatile low-voltage digital signal acquisition.
Technical Specifications
- Brand: GE Fanuc
- Model: IC693MDL654
- Series Compatibility: Series 90-30 Programmable Logic Controllers
- Input Channels: 32 points (4 groups of 8)
- Rated Voltage: 5-12V DC
- Input Voltage Range: 0-15V DC
- On-State Voltage: 4.2-15V DC
- Off-State Voltage: 0-2.6V DC
- Input Current: 3.0 mA @ 5V DC, 8.5 mA @ 12V DC
- On-State Current: 2.5 mA minimum
- Off-State Current: 1.2 mA maximum
- Isolation: 1500V (field to logic), 250V between groups
- Logic Type: Positive/Negative TTL compatible
Installation & Operation
- Installs in any I/O slot of Series 90-30 PLC baseplates
- Four isolated groups allow mixed signal applications
- Supports both positive and negative logic configurations
- TTL compatibility enables direct computer interface
- Thirty-two LED indicators provide real-time status feedback
- Designed for reliable operation in digital control systems
Frequently Asked Questions
- What does TTL compatibility mean? The module works with standard 5V Transistor-Transistor Logic signals commonly used in digital electronics.
- How are the input groups organized? The 32 inputs are divided into four isolated groups of eight points each.
- What voltage levels does it support? It handles both 5V and 12V DC signals with 0-15V DC range.
- Can I mix positive and negative logic? Yes, the module supports both logic configurations for design flexibility.
