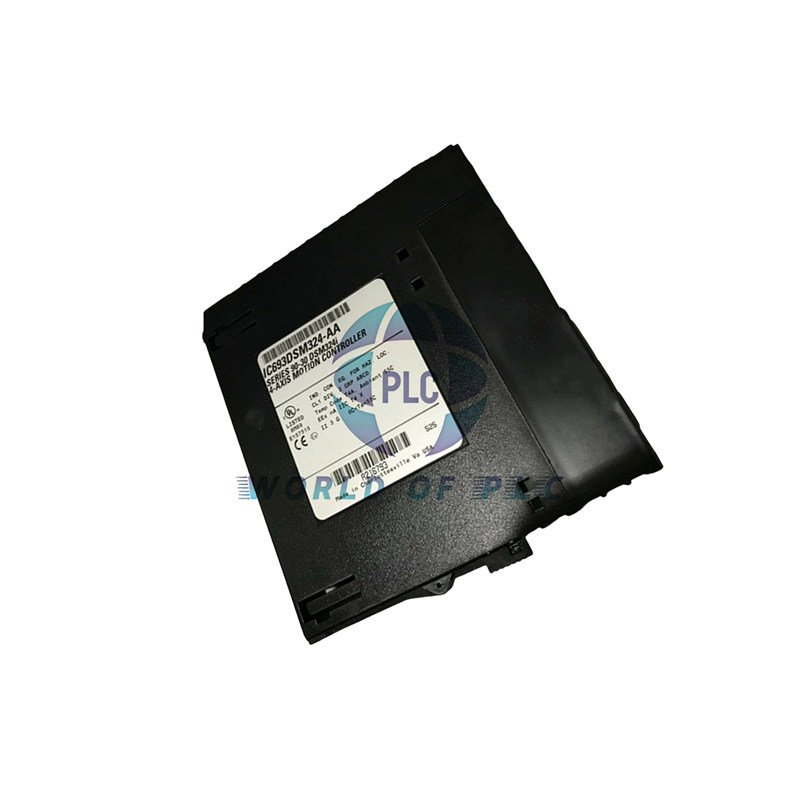

GE Fanuc IC693DSM324 Four-Axis Motion Controller
Powerful four-axis control for complex automation tasks. The IC693DSM324 motion controller adds precise multi-axis movement to GE Series 90-30 and PACSystems RX3i PLCs. Perfect for advanced machinery requiring synchronized motion.
Technical Specifications
- Brand: GE Fanuc
- Model: IC693DSM324
- Series: Series 90-30
- Type: Motion Controller Module
- Axes: 4
- Backplane Power: 860 mA @ 5V DC
- Encoder Power: 500 mA @ 5V DC
- Max Modules/System: 20 (90-30), 32 (RX3i)
- Communication Ports: 36-pin D-shell, RJ45 FSSB
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Storage Temperature: -40° to 85°C (-40° to 185°F)
Warranty & Shipping
This product includes a 12-month warranty. We ship worldwide via FedEx, UPS, and DHL for fast, reliable delivery.
Frequently Asked Questions
- Q1: How many axes can the IC693DSM324 control?
A1: It can control four independent motion axes simultaneously. - Q2: What servo systems does it work with?
A2: It works with various digital servo systems including i and HVi series drives and motors. - Q3: Can I use multiple IC693DSM324 modules in one system?
A3: Yes, up to 20 modules in a Series 90-30 system or 32 modules in a PACSystems RX3i system. - Q4: What operating modes does it support?
A4: It supports both standard mode and follower mode for different motion control applications. - Q5: What power connections does it have?
A5: It features 36-pin D-shell connectors for I/O and an RJ45 port for FSSB communication.
