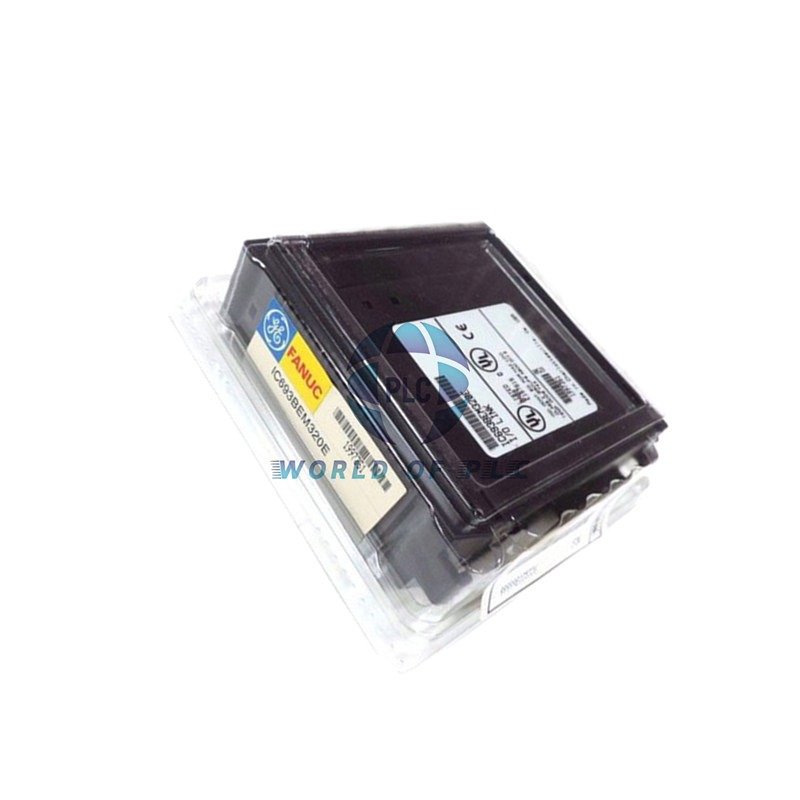

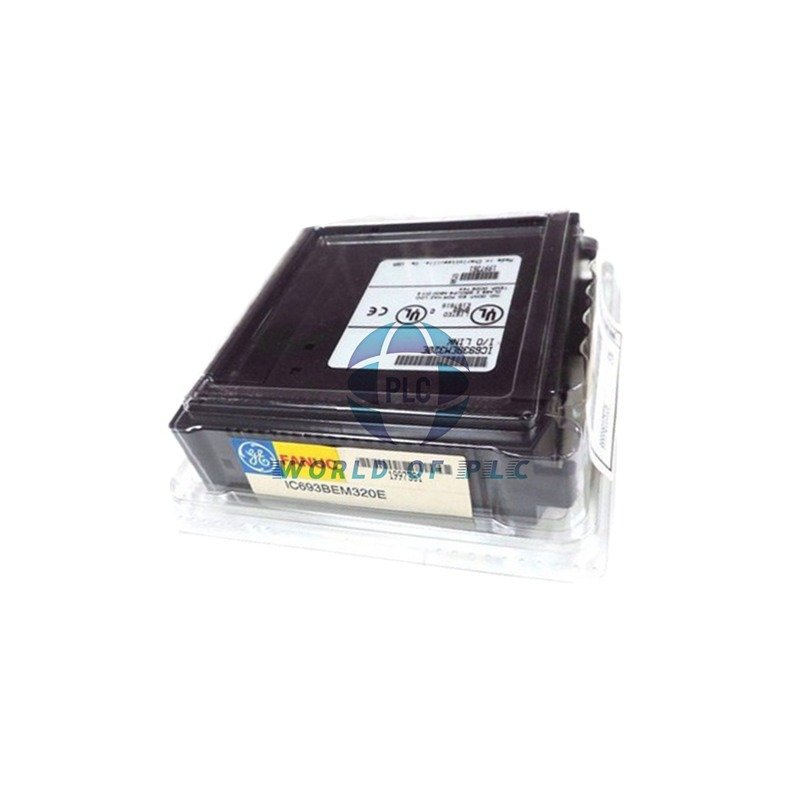

GE Fanuc IC693BEM320: I/O Link Communication Module
The GE Fanuc IC693BEM320 is a versatile serial interface module for Series 90-30 and 90-70 PLCs. It expands your control system by connecting up to 64 I/O points remotely. This reliable IC693BEM320 module simplifies industrial network connections.
Technical Specifications
Brand: GE Fanuc
Series: Series 90-30/90-70
Model: IC693BEM320
Type: I/O Link Communication Module
I/O Capacity: 32 or 64 points (configurable)
Communication Ports: 2 (RS-485 and RS-422)
Network Role: Slave only
Power Supply: 5V DC from backplane
Status Indicators: OK and RDY LEDs
Operating Temperature: 0 to 60°C (32 to 140°F)
Humidity Range: 5% to 95% non-condensing
Max Modules Per System: 16 slave modules
Isolation Voltage: 500V AC
Data Rate: Up to 115.2 kbps
Installation: Any universal backplane slot
Warranty & Shipping
This product includes a 12-month warranty. We ship worldwide via FedEx, UPS, and DHL for reliable delivery.
FAQ
- What is the main purpose of this module?
It extends your PLC’s I/O capacity by connecting up to 64 remote I/O points. - Can this module act as a master controller?
No, it only operates as a slave device in the network. - How do I configure the I/O point capacity?
Use the internal jumper to select between 32 or 64 I/O points. - What serial protocols are supported?
It supports both RS-485 and RS-422 serial communication standards. - How many modules can I use in one system?
You can use up to 16 IC693BEM320 modules as slaves in a single network.
