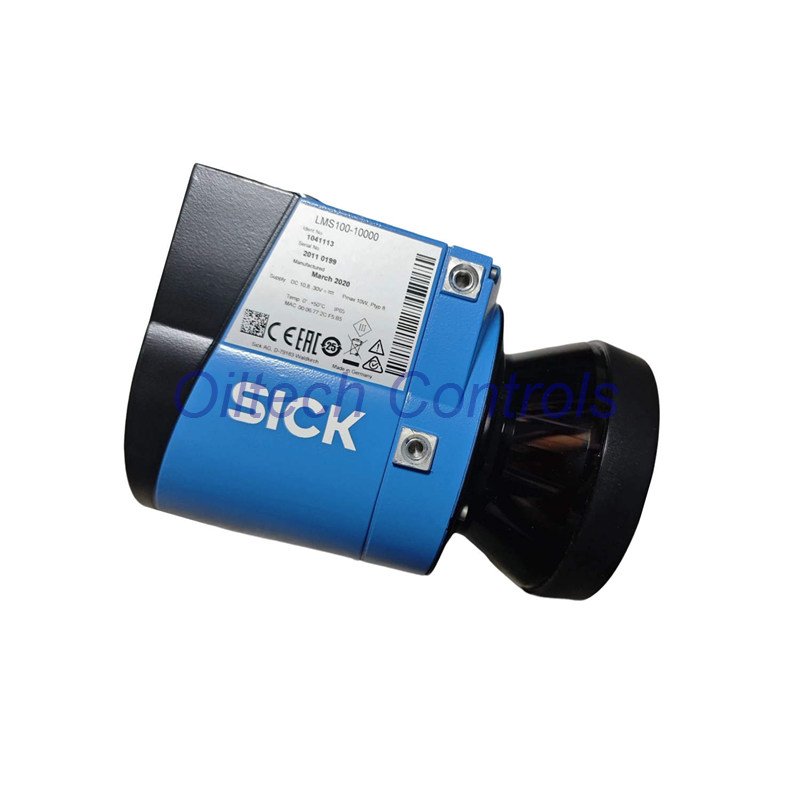

SICK LMS100-10000 Indoor 2D Laser Scanner
This indoor scanner gives precise measurements for many tasks. It sees objects up to 20 meters away. The device works well in factories and on robot systems.
Main Features
- Very wide 270-degree scanning view.
- Two scanning speeds: 25 Hz and 50 Hz.
- Works from 0.5 meters to 20 meters.
- Sees both weak and strong reflections.
- Strong IP65 rating against dust and water.
- Low power use at only 22 Watts.
Key Technical Numbers
- Brand & Model: SICK LMS100-10000
- Laser Type: Safe Class 1 Infrared (905 nm)
- Field of View: 270 degrees horizontal
- Best Range: 20 meters at 90% remission
- Scan Speed: 25 Hz or 50 Hz selectable
- Angular Detail: 0.25° or 0.5° choice
- Voltage: 10.8 to 30 V DC wide range
- Weight: Light at 1.1 kilograms
- Size: 105 mm x 102 mm x 152 mm
- Error Range: ± 30 mm typical
- Works From: 0°C to +50°C
Extra Product Highlights
- It can connect via Ethernet, RS-232, and CAN.
- Has digital inputs and outputs for control.
- Built-in display and LEDs show status.
- Very strong against ambient light (80,000 lx).
- Good against shock and vibration.
- Simple to set up with 10 configurable fields.
What You Get & Support
- One SICK LMS100-10000 scanner unit.
- All needed cables and connectors.
- Mounting hardware included.
- User manual and setup guide.
- 12-month product warranty.
- We ship fast via FedEx, UPS, or DHL.
Common Questions (FAQ)
What does “Class 1 laser” mean for safety?
Class 1 is the safest laser rating. It is eye-safe under all normal use conditions. No extra laser safety protection is needed.
How accurate is the distance measurement?
It is very accurate. The typical error is only ±30 mm. This is good for most positioning and mapping jobs.
Can it work in very bright light?
Yes. It works in up to 80,000 lux of ambient light. This is like bright sunlight. It will not be blinded.
Is it hard to configure the scanning fields?
No. You can set up to 10 different monitoring fields. Use the simple software to draw the areas you need.
What is the main data output interface?
The main interface is 10/100 Mbps Ethernet (TCP/IP). It sends scan data quickly to your PC or PLC.
