Core Product Overview

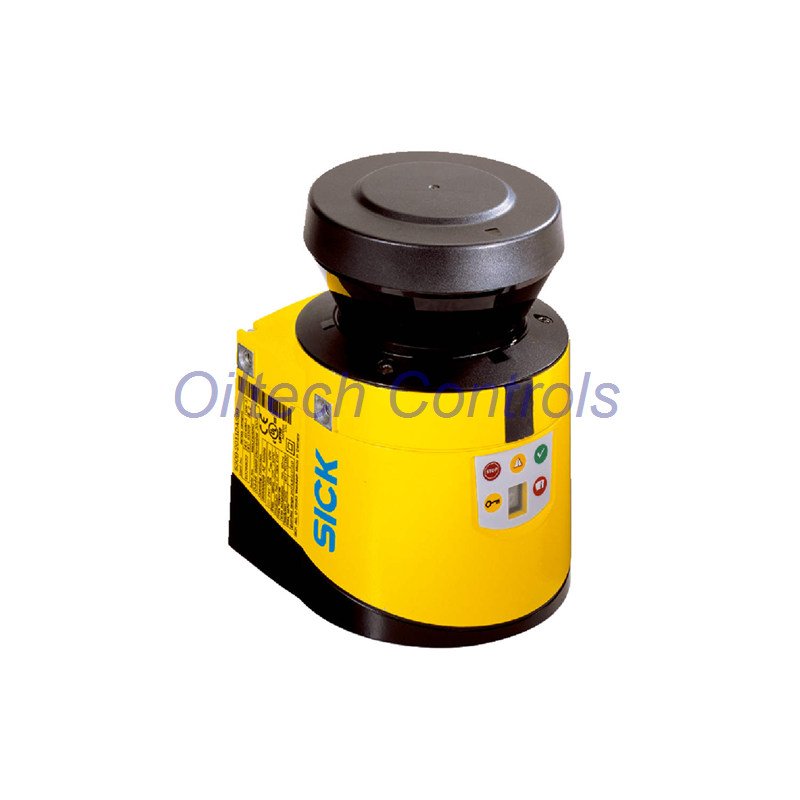

Introducing the SICK S30A-3011DA Safety Laser Scanner. It is part of the trusted S300 series. This device creates an invisible safety zone around machines. It stops equipment if a person or object enters the zone. Ensure safety for automated guided vehicles (AGVs) and work cells.
Detailed Technical Specifications
- Brand & Model: SICK S30A-3011DA (Alt: 1056429)
- Product Type: Safety Laser Scanner
- Series: S300 Professional
- Protection Range: Up to 8 meters
- Detection Resolution: 14 mm
- Operating Voltage: 24 VDC
- Voltage Range: 16.8 to 30 VDC
- Output Signals: 2 x PNP, protected & monitored
- Connection: Male Connector, M12, 5-Pin
- Response Speed: Up to 80 ms
- Housing & Protection: Aluminum, IP65 Rated
- Shock Resistance: 16 g (IEC Standard)
- Product Weight: 1.2 kg
- Field of View: 275 degrees
- Light Source: Infrared Laser, Class 1
Key Advantages & Selling Points
- Wide Area Coverage: Monitors large zones up to 8 meters away efficiently.
- High Precision: 14mm resolution detects small objects for enhanced safety.
- Extremely Durable: Aluminum housing and IP65 rating withstand harsh industrial environments.
- Easy to Connect: Standard M12 connector allows for quick setup and integration.
- Reliable Outputs: Dual monitored PNP outputs ensure safe stop signals are always communicated.
Included Support & Service
- One SICK S30A-3011DA Safety Laser Scanner Unit.
- Comprehensive 12-Month Manufacturer Warranty.
- Global Express Shipping via FedEx, UPS, or DHL.
- Full shipment tracking provided immediately.
Common Technical Questions Answered
What is the main use for this scanner?
It is primarily for area guarding on machines and for collision avoidance on mobile robots like AGVs.
Can I configure multiple warning zones?
Yes. Using SICK’s software, you can set separate warning and protective fields with different reactions.
What does “cross-circuit monitored” output mean?
The device constantly checks its output circuits. It will fault if a wiring problem like a short circuit is detected.
Is it suitable for outdoor use?
The IP65 rating protects against dust and water jets. However, direct heavy rain or sunlight may require additional protection.
Any tip for mounting the scanner?
Mount it solidly at knee height for personnel detection. Ensure the scanning plane is free of obstructions for best performance.
