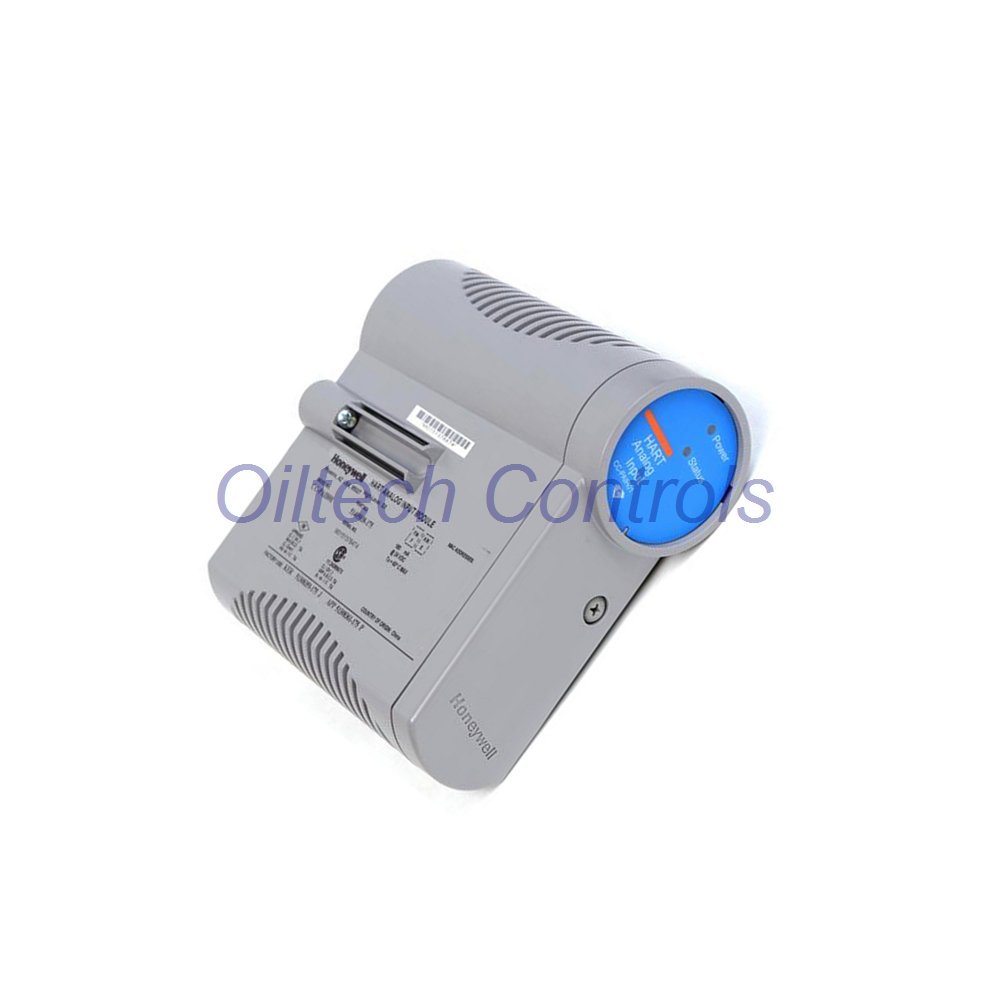

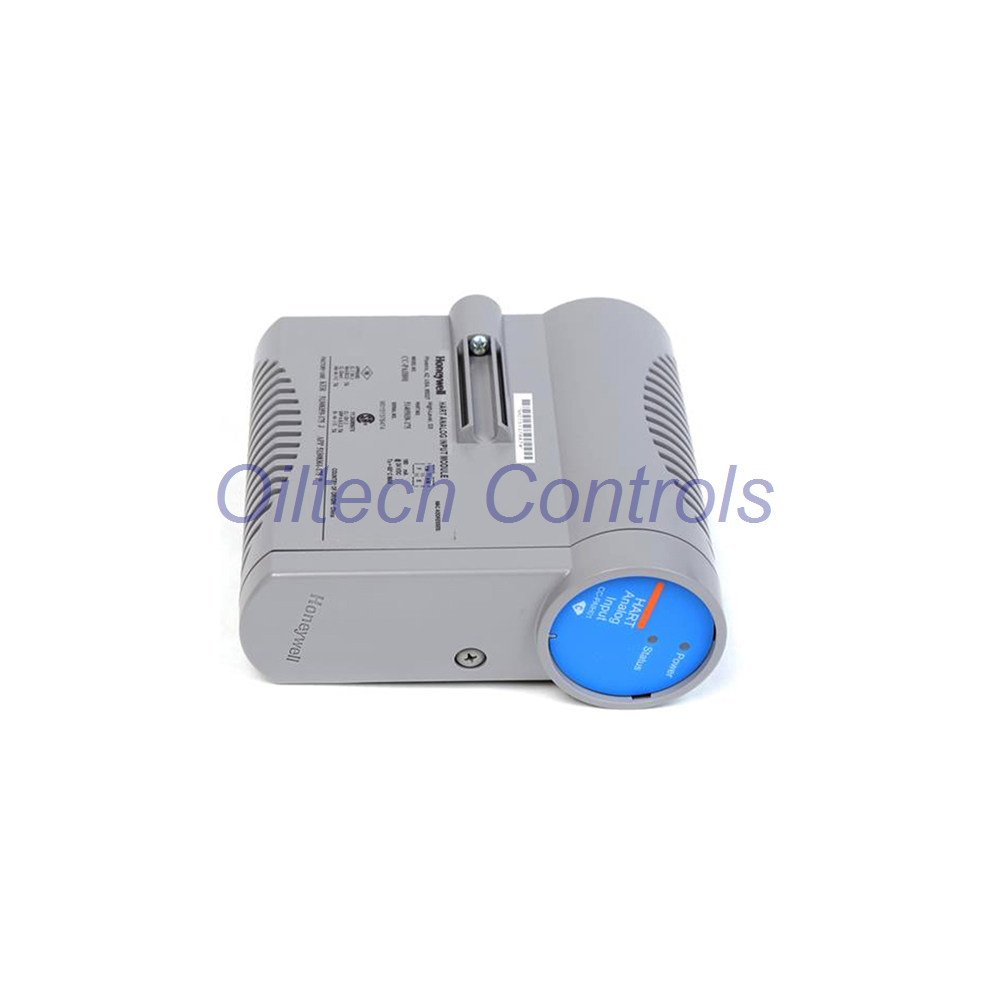

CC-PAIH02 Honeywell C300 HART Analog Input Module
CC-PAIH02 is a 16-channel HART analog input module for Honeywell C300 systems. It accepts 4-20 mA, 1-5 V, and 0-5 V signals. Each channel supports differential or single-ended wiring. A 60 W power rating and G3 high-level rating suit demanding control cabinets. The module carries power and status LEDs for fast loop checks. Engineers use it for mixed-signal process input in C300 I/O racks.
Technical Data
- Brand: Honeywell
- Model: CC-PAIH02
- Series: C300 HART Analog Input series
- Module type: HART analog input, input module
- Circuits: 16 channels
- Input modes: differential or single-ended analog input
- Input signals: 4-20 mA, 1-5 V, 0-5 V
- Power rating: 60 W
- Indicators: power and status LED
- Rating class: high level / G3
Signal Path and Channel Behavior
- 16 independent input circuits in one module
- Selectable differential or single-ended wiring per application
- HART support rides on the 4-20 mA loop
- Front LEDs show power and module status
- G3 high-level rating for industrial cabinet use
- Designed for Honeywell C300 I/O racks
Equipment Fit
- Honeywell C300 process controllers
- C300 I/O racks with HART analog input slots
- Transmitter loops using 4-20 mA with HART data
- Legacy cabinets running 1-5 V or 0-5 V analog signals
- Mixed-signal process units needing 16 inputs per card
Commissioning and Loop Check
- Confirm rack slot and backplane rating before insertion
- Check the 60 W power budget for the rack
- Read power and status LEDs at first power-up
- Set each channel to differential or single-ended mode
- Verify 4-20 mA scaling and HART data at the controller
- Log channel wiring for future maintenance
Ordering, Lead Time, and Shipping
- Dispatch in 24-28 hours after order confirmation
- 12-month warranty on every unit
- Ships by FedEx, UPS, or DHL
- Technical check before packing
- Tracking number sent at dispatch
Oiltech Controls Insight
- We stock and source the CC-PAIH02 for C300 migrations
- Our team verifies HART function and channel count before shipping
- We support plants running obsolete Honeywell I/O cards
- Each unit is packed for static-safe transport
- Ask us for firmware and rack compatibility notes
Why Buy From Oiltech Controls?
- More than 15 years in industrial automation spare parts
- Shipments to customers worldwide
- Tested surplus and refurbished options available
- 12-month warranty on all sales
- Technical verification before every shipment
- Help with obsolete control systems and hard-to-find cards
FAQ
Q: How many channels does the CC-PAIH02 have, and can I mix input types?
A: It has 16 channels. Each channel accepts 4-20 mA, 1-5 V, or 0-5 V. Wiring can be differential or single-ended. Confirm channel assignment in the C300 configuration before wiring.
Q: Does this module read HART data or only the 4-20 mA value?
A: HART is part of the module design. The 4-20 mA loop carries HART digital data to the controller. Check your C300 firmware and HART setup to confirm full digital readback.
Q: My rack has limited power. What should I check before buying?
A: The module is rated 60 W. Add up the load on your C300 rack and compare it with the backplane budget. Send us your rack model and we will confirm fit.
Q: How do I tell a failed channel from a wiring fault?
A: Start with the power and status LEDs. Then swap the field wiring to a known good channel. If the fault follows the wiring, the loop is at fault. If it stays with the channel, plan a module replacement.
Q: Is the CC-PAIH02 a good choice for an older C300 cabinet?
A: Yes, when the rack supports HART input cards and the power budget allows. We check revision and slot fit before shipment. For discontinued parts, ask about tested refurbished units.
