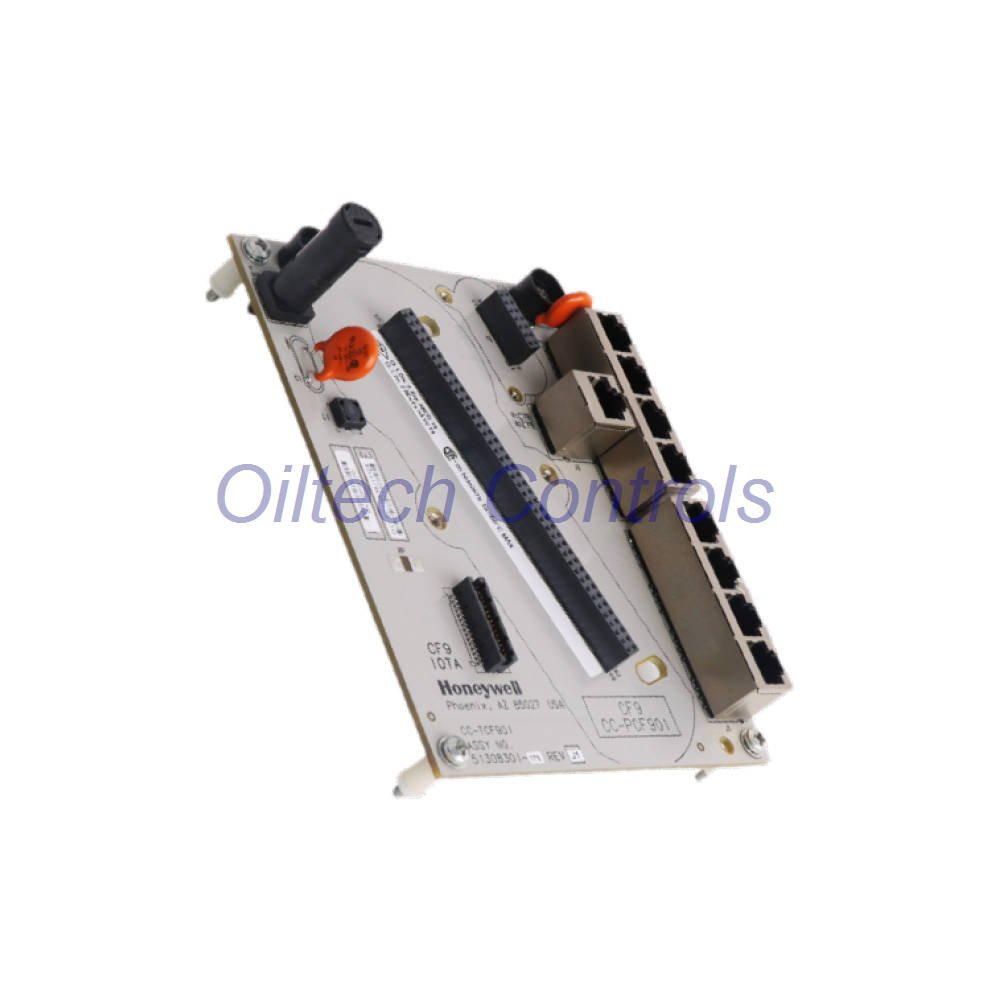

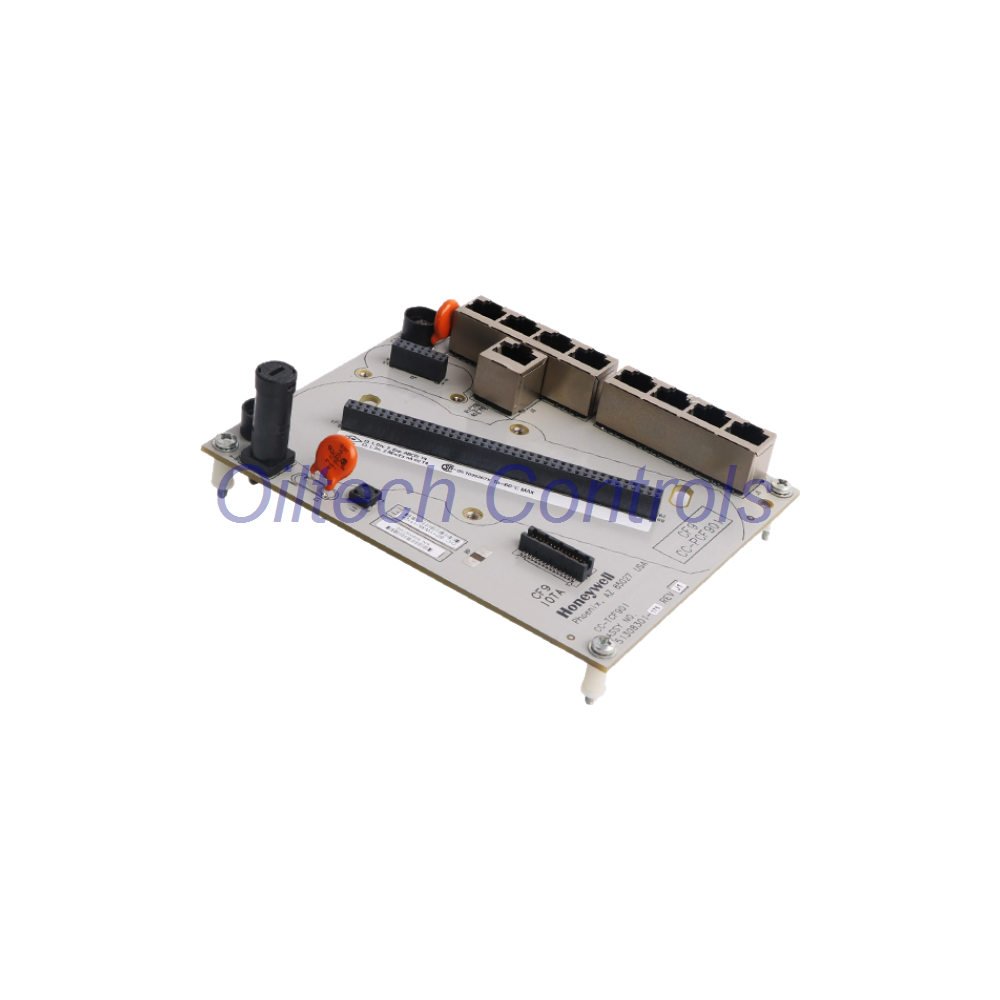

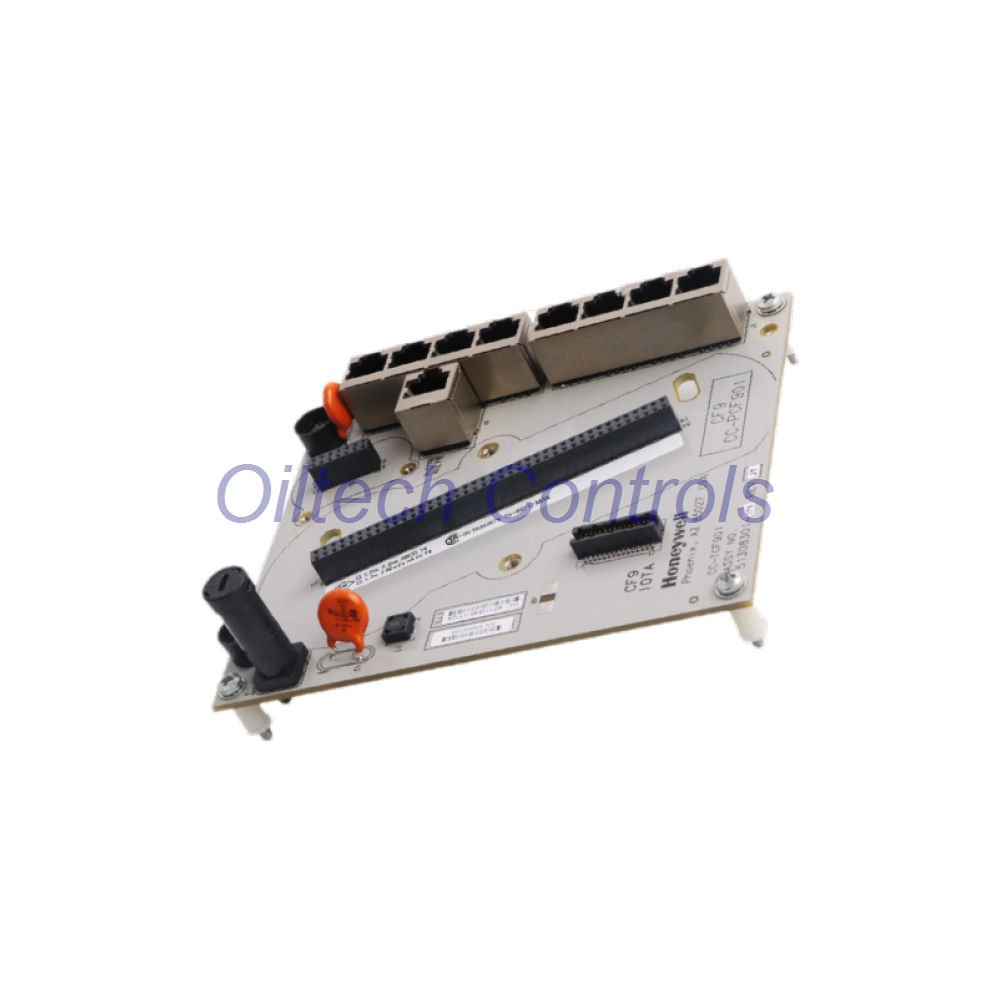

CC-TCF901 | Honeywell | 9 Port Control Firewall IOTA
Honeywell CC-TCF901 is a 9 Port Control Firewall IOTA for Series 9000 cabinets. It links eight FTE cables from in-cabinet controllers and Series CFIMs. The ninth port uplinks to the FTE supervisory network. Also, it distributes 24 V dc power to the control. This module protects control traffic from supervisory traffic at the cabinet edge.
Port and Network Design
- Eight ports accept FTE cables from controllers and CFIMs
- Ninth port serves the FTE supervisory uplink
- Ethernet uses 9 RJ-45 connections
- Fiber-optic support via Ca-FSMx01 single mode module
- Fiber-optic support via Ca-FMMx01 multi mode module
Electrical and Mounting Data
- Power distribution delivers 24 V dc to the control
- Supply rating is 0.30 mA at 24 V dc
- Mounting dimensions are 12.1 cm by 14.5 cm
- Assembly type is an input/output termination assembly
- Part number 51308301-175 identifies this 9 port unit
Oiltech Controls Review
- Engineers value the clear split between control and supervisory traffic
- The fixed nine-port layout cuts cabinet wiring time
- Fiber options extend reach across plant floors
- Field teams like the compact 12.1 cm by 14.5 cm footprint
- Spare stock helps plants keep obsolete cabinets running
Oiltech Controls’s Insight
- Check FTE cable counts before you order the CC-TCF901
- Pick single mode fiber for long runs and multi mode for short runs
- Confirm the 24 V dc supply stays stable under load
- Plan the ninth port for the supervisory uplink only
- Keep spare units on site for fast swap-out
Compatible Equipment
- Honeywell Series 9000 in-cabinet controllers
- Series CFIM modules on the FTE network
- FTE supervisory networks in process plants
- Systems using Ca-FSMx01 or Ca-FMMx01 fiber modules
- Cabinets built around 51308301-175 termination assemblies
Why Buy From Oiltech Controls?
- 15+ years of hands-on industrial automation spare parts work
- Worldwide shipping through proven logistics partners
- Tested surplus and refurbished units, each checked before sale
- 12-month warranty on every order
- Technical checks completed before dispatch
- Lifeline support for obsolete control systems
Warranty, Lead Time and Shipping
- 12-month warranty covers hardware faults
- 24-28 hour dispatch on stocked units
- FedEx, UPS, DHL delivery options
- Tracking number shared after pickup
- Packed in anti-static protection
Professional FAQ
Q: Can I use the CC-TCF901 to replace a failed unit in an old cabinet?
A: Yes, when the rack uses 51308301-175 parts. Check cable counts and supply wiring first.
Q: Should I choose single mode or multi mode fiber?
A: Match the distance. Short runs suit multi mode. Long runs suit single mode.
Q: How do I confirm the 24 V dc distribution is healthy?
A: Measure at the control feed under load. Keep the supply steady during peak traffic.
Q: What should I check before buying surplus stock?
A: Ask for photos, part number proof, and test records. Confirm the warranty terms.
Q: Do I need spare ports for future expansion?
A: Yes. Count current FTE cables, then add one spare port for growth.
