Product Introduction

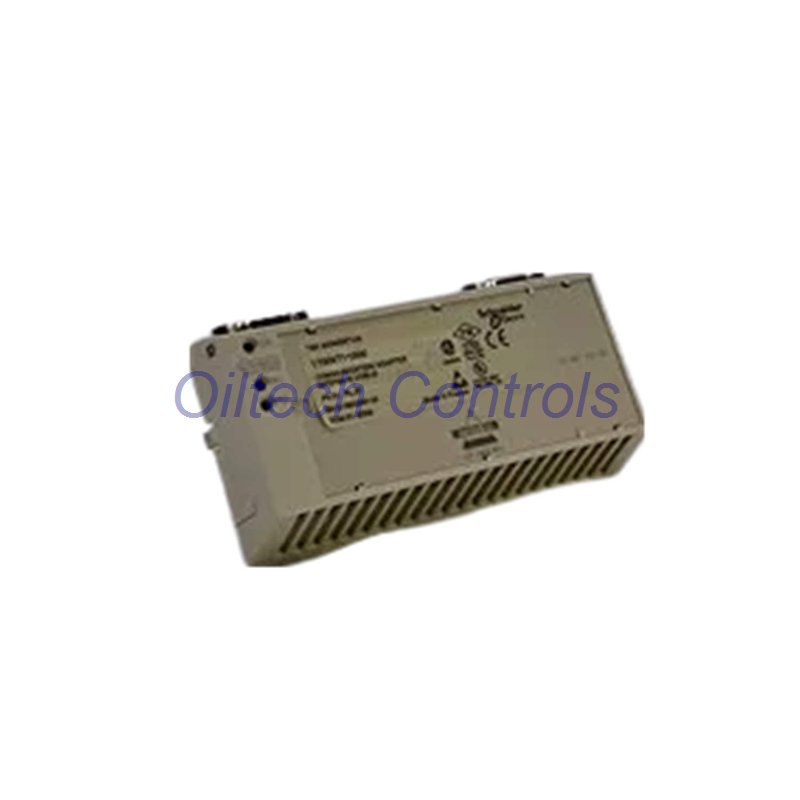

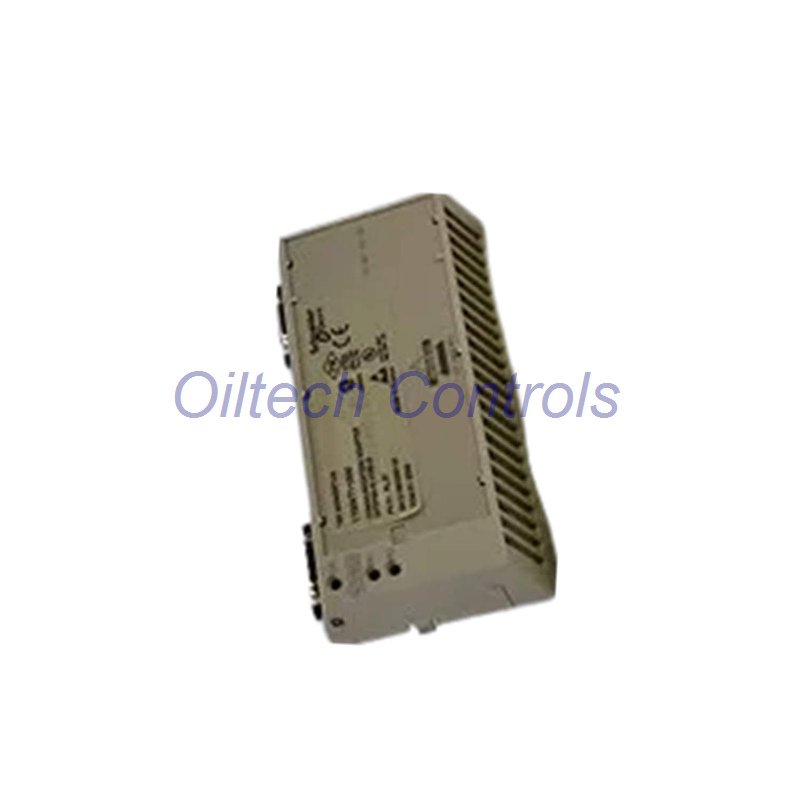

This is the Schneider Electric 170INT11000C communication adaptor. It links your Momentum PLC to an Interbus network. Build fast control networks across your factory. Connect many devices with one cable. It simplifies complex automation wiring.
Key Features & Benefits
- Fast Data Transfer: Communicates at 500 kilobits per second.
- Very Long Reach: Network cables can total 12.8 km.
- Connect Many Devices: Handles up to 254 nodes per line.
- Strong Network Loop: Ring topology keeps communication running.
- Electrically Robust: Built to ignore factory electrical noise.
- Works at High Sites: Functions up to 5,000 meters altitude.
- Safe Operation: Designed with fail-safe logic for reliability.
Detailed Technical Specifications
- Brand: Schneider Electric
- Series: Modicon Momentum
- Part Number: 170INT11000C
- GTIN (EAN): 3595863798814
- Module Type: Interbus Fieldbus Master Adaptor
- Bus Standard: Interbus SUPI 2
- Medium: Twisted Pair Cable
- Network Shape: Ring (Loop)
- Max Stations: 0 to 254 addressable devices
- Max Bus Length: 12,800 meters (sum of all cables)
- Baud Rate: 500 kbps fixed
- Supply Voltage: 24 VDC from Momentum rack
Environmental & Protection
- Ingress Protection: IP20 (for electrical cabinet use)
- ESD Immunity: 8 kV Air / 4 kV Contact Discharge
- RF Immunity: 10 V/m, 80 MHz to 1 GHz
- Max Operating Height: 5000 m above sea level
- Circuit Board Coating: Humiseal 1A33 conformal coating
- Compliance Mark: CE
- Net Weight: 0.07 kilograms
Warranty & Shipping
We provide a full 12-month product warranty. International shipping via FedEx, UPS, and DHL is available. You will receive tracking information after your order is processed.
Frequently Asked Questions
Network Basics
What devices can I connect with this adaptor?
You can connect Interbus remote I/O blocks, sensor hubs, drive interfaces, and valve terminals to your central Momentum PLC.
Is special software needed to configure it?
Yes. You use the Momentum configuration software (e.g., Concept or Unity Pro) to set up the network parameters and map the I/O data.
Installation & Troubleshooting
How do I wire the ring topology?
Connect the cable from the master to device 1, then from device 1 to device 2, and so on. The last device connects back to the master to close the ring.
The network is slow or has errors. What should I check first?
First, check all cable connections are secure. Second, verify the total cable length does not exceed 12.8 km. Third, look for damaged cable or connectors.
Selection Advice
My factory has heavy electrical interference. Will this module work?
Yes. The 170INT11000C has strong immunity to ESD and EMI. For best results, always use properly shielded Interbus cable and ground it correctly.
