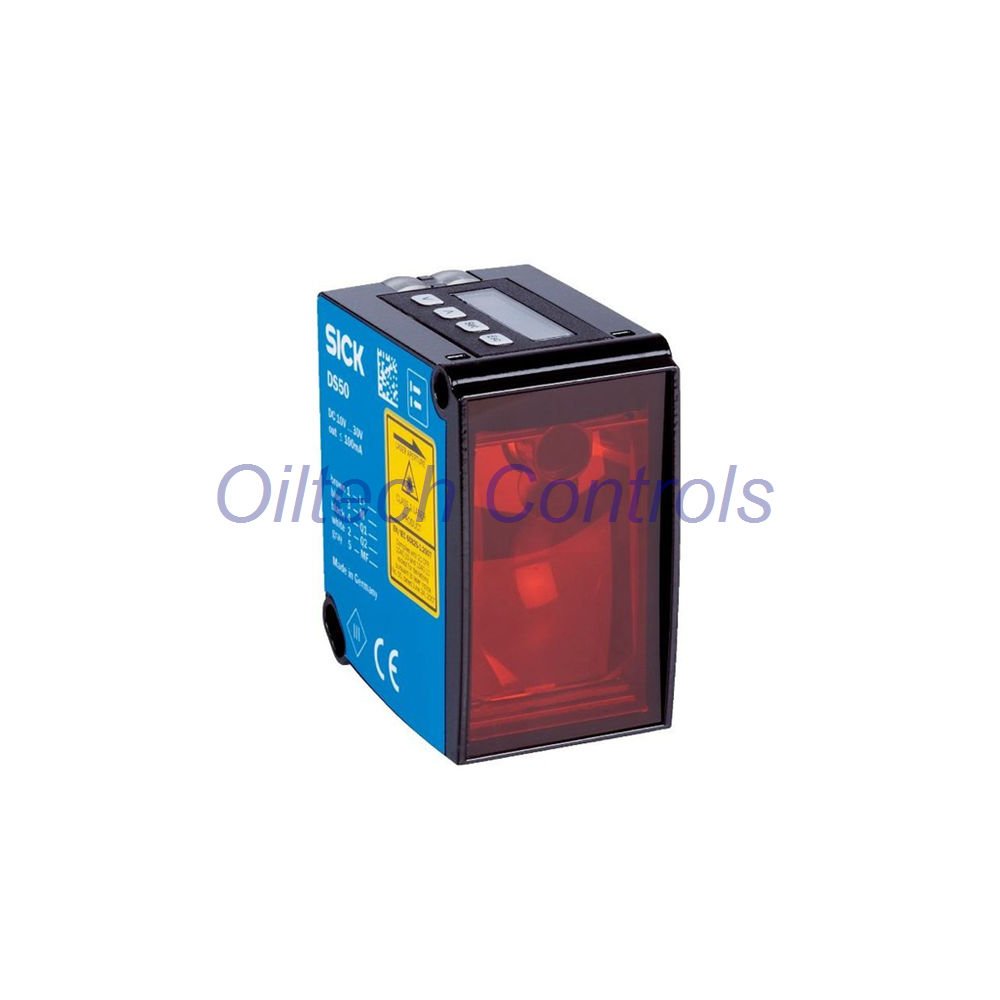

DT50-P1124 SICK Dx50 Heated Laser Distance Sensor
DT50-P1124 from SICK is a rugged optical time-of-flight sensor. It measures natural objects up to 10 m without a reflector. The Dx50 DT50 Heated sub-series adds an internal heater for cold storage and deep-freeze operation down to -40 °C. HDDM™ technology gives high repeatability and ambient light stability.
Technical Specifications
| Brand | SICK |
| Model | DT50-P1124 |
| Series | Dx50 DT50 Heated |
| Part Number | 1047616 |
| Measurement Range | 200 mm to 10,000 mm (90% remission) 200 mm to 6,500 mm (18%) 200 mm to 4,000 mm (6%) |
| Light Source | Visible red laser, 658 nm, Class 1 eye-safe |
| Response Time | Fast: 20 ms / Slow: 30 ms |
| Repeatability | ≥ 2.5 mm |
| Accuracy | Typ. ± 10 mm |
| Output Interface | 1x PNP digital (≤ 100 mA) 1x Analog voltage (0–10 V, ≥ 5 kΩ, 16-bit) 1x Multifunctional input (MF) |
| Supply Voltage | DC 24 V (18–30 V) VS > 15 V for internal heater Reverse-polarity protected |
| Power Consumption | ≤ 28 W (heater active, no external load) |
| Electrical Connection | M12 male connector, 8-pin |
| Operating Temperature | -40 °C to +65 °C (with heater) -40 °C to +80 °C (with 2 cooling plates) -40 °C to +140 °C (with 2 cooling plates and filter) |
| Storage Temperature | -40 °C to +75 °C |
| Protection Rating | IP65 (EN 60529) |
| Dimensions (W x H x D) | 36.1 mm x 62.7 mm x 57.7 mm |
| Housing Material | Zinc die-cast (ZNAL4CU1), PMMA optical window |
| Weight | Approx. 200 g |
| Certification | IEC 60825-1:2014, EN 60825-1:2014 (Class 1) |
Key Features
- Direct diffuse measurement up to 10 m on natural objects. No reflector needed.
- Rugged zinc die-cast housing for heavy-duty industrial automation.
- LC display and menu buttons for easy setup and diagnostics.
- HDDM™ time-of-flight ensures high repeatability and ambient light stability.
- Factory-integrated heater for cold storage and deep-freeze use down to -40 °C.
- High-resolution distance measurement with intuitive navigation.
Installation Guide
- Mount the sensor with clear line of sight to the target.
- Use M12 8-pin connector for power and signals.
- Keep supply voltage above 15 V to activate the internal heater.
- For high-temperature areas, add 2 cooling plates.
- For extreme heat, add cooling plates plus a protection filter.
- Maintain IP65 seal. Do not open the housing in wet environments.
Setup and Maintenance
- Use the LC display and buttons for quick parameter changes.
- Select fast (20 ms) or slow (30 ms) response time.
- Clean the PMMA window with a soft, damp cloth.
- Check the lens for dust or condensation in cold storage.
- Verify output signals after any wiring change.
Compatibility Notes
- Works with standard 24 V DC industrial power supplies.
- PNP digital output fits common PLC and controller inputs.
- Analog 0–10 V output connects to standard analog cards.
- M12 8-pin connector matches many SICK and industry cables.
Typical Applications
- Cold storage and deep-freeze logistics.
- Heavy-duty industrial automation positioning.
- Distance measurement on natural objects without reflectors.
- Outdoor or unheated warehouse monitoring.
- Material handling and crane positioning.
Diagnostic Capabilities
- LC display shows live distance and status.
- Menu buttons allow quick parameter checks.
- Analog output monitors signal strength.
- Digital output confirms target detection.
- Multifunctional input supports external triggering.
