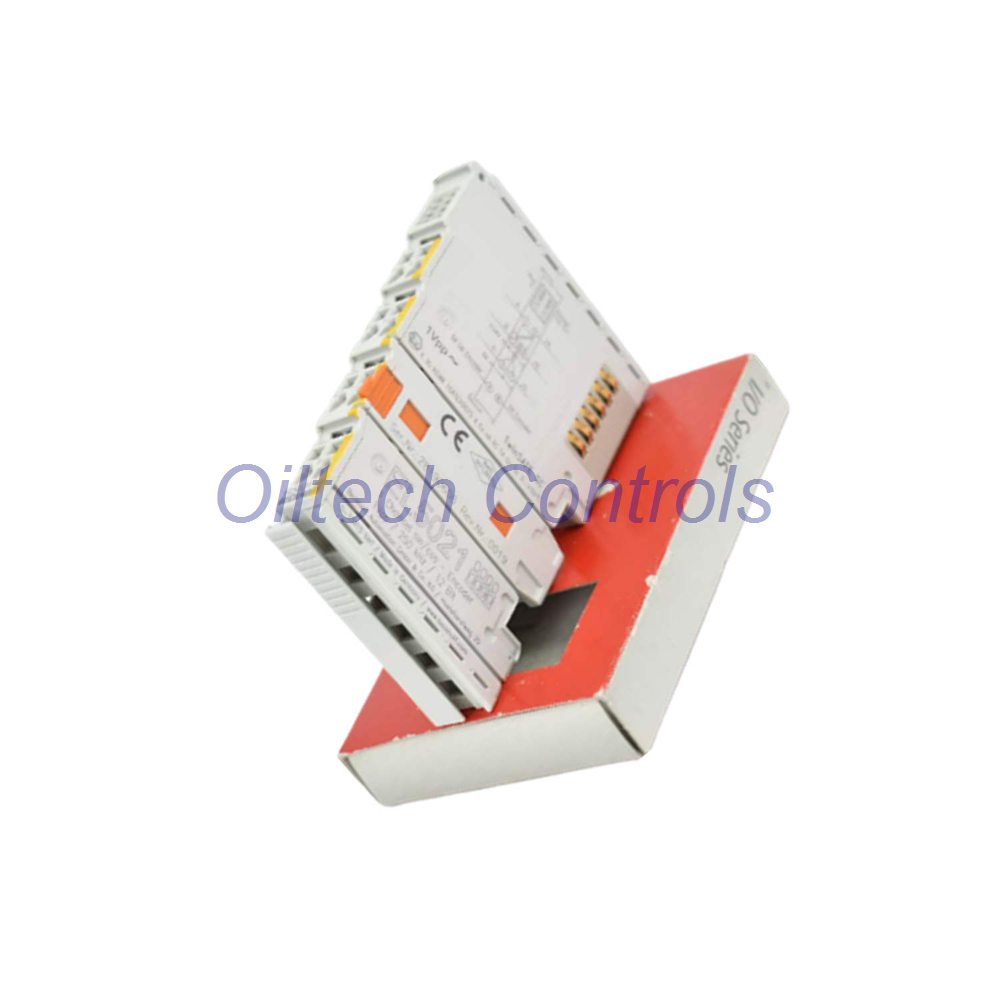

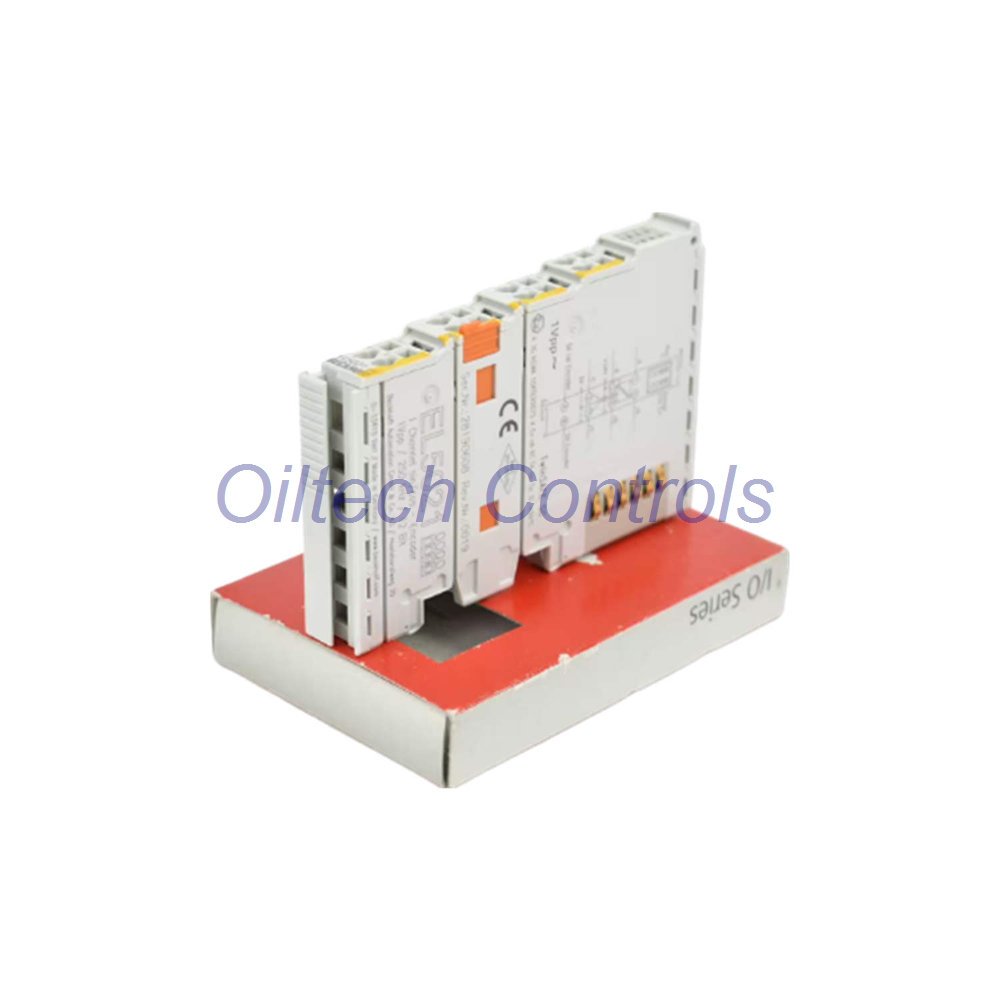

EL5021 Beckhoff EtherCAT Terminal SinCos Encoder 1 VPP Interface

EL5021 Beckhoff EtherCAT Terminal, 1-Channel Encoder Interface, SinCos, 1 VPP

The EL5021 connects a measuring probe or encoder with sinusoidal differential 1 VPP output directly to EtherCAT. It evaluates input frequencies up to 250 kHz. The analog signal is interpolated to a 32-bit count value. Max 24 bits come from whole periods. Max 13 bits come from the position inside one sine period. The EL5021 also detects amplitude and frequency errors. Distributed clocks (DC) allow synchronous reading with other EtherCAT input data. Encoder profiles simplify linking process data to motion control.

Why Buy From Oiltech Controls?

• Over 15 years of industrial automation spare parts experience
• Global shipping support
• Tested industrial surplus and refurbished units available
• 12-month warranty on every order
• Technical verification before dispatch
• Lifeline support for obsolete control systems

Technical Data

• Brand: Beckhoff
• Model: EL5021
• Type: EtherCAT Terminal, SinCos encoder interface
• Channels: 1
• Encoder connection: 1 x A, B, C differential 1 Vpp (A, A̅, B, B̅, C, C̅)
• Encoder supply: 5 V DC, max 0.5 A from 24 V DC power contacts
• Counter: max 24 bit, adjustable
• Input frequency: 250 kHz @ 10 bit, sampling rate 70 MHz
• Resolution: max 13 bit, 8192 steps per period
• Distributed clocks: yes
• Nominal voltage: 24 V DC at power contact
• Current consumption power contacts: typ 50 mA + load
• Electrical isolation: 500 V (E-bus/field potential)
• Current consumption E-bus: typ 120 mA
• Weight: approx 55 g

Special Features

• Latch, reset, change counting direction
• Amplitude and frequency error recognition
• Frequency-dependent period resolution
• Frequency counter max 24 bit
• Integrated frequency measurement
• Integrated 5 V DC encoder operating voltage

Environmental and Mechanical Data

• Operating temperature: 0 to +55 °C
• Storage temperature: -25 to +85 °C
• Relative humidity: 95 %, no condensation
• Vibration/shock: EN 60068-2-6 / EN 60068-2-27
• EMC: EN 61000-6-2 / EN 61000-6-4
• Protection rating: IP20
• Installation position: variable
• Approvals: CE, UL, ATEX
• Ex marking: II 3 G Ex nA IIC T4 Gc
• Housing: compact terminal housing with signal LEDs
• Material: polycarbonate
• Dimensions: 12 mm x 100 mm x 68 mm
• Mounting: 35 mm DIN rail per EN 60715

Wiring and Connection

• Spring actuation by screwdriver
• Solid conductor: 0.08 to 2.5 mm² (AWG 28 to 14)
• Stranded conductor: 0.08 to 2.5 mm² (AWG 28 to 14)
• Flexible conductor with ferrule: 0.14 to 1.5 mm² (AWG 26 to 16)
• Stripping length: 8 to 9 mm
• Current load power contacts: Imax 10 A
• Pluggable wiring for ES5021 version

Ordering Information

• EL5021 EtherCAT Terminal, 1-channel encoder interface, SinCos, 1 VPP
• ES5021 EtherCAT Terminal, 1-channel encoder interface, SinCos, 1 VPP, pluggable wiring

Compatible Equipment

• SinCos encoders with 1 VPP differential output
• Measuring probes with sinusoidal signal
• Beckhoff EtherCAT I/O systems
• Motion control drives using encoder profiles
• Legacy servo systems with 1 VPP feedback

Shipping and Warranty

• 12-month warranty covers defects in materials and workmanship
• Dispatch within 24 to 28 hours
• Shipping by Fedex, UPS, or DHL
• Tracking number provided after dispatch

FAQ

Q: Can the EL5021 read an encoder without a C track?

A: Yes. The C track is only needed for reference mark storage. Without C, you can still read position and frequency.

Q: What happens if the input signal has amplitude errors?

A: The terminal detects amplitude errors and reports them. This helps you find cable or encoder faults early.

Q: Should I choose EL5021 or ES5021 for a new panel?

A: Choose ES5021 if you want pluggable wiring for faster service. Choose EL5021 for standard fixed wiring.

Q: Does the EL5021 work with older Beckhoff E-bus couplers?

A: Yes, it works with any EtherCAT coupler that supports standard E-bus terminals. Check firmware compatibility for distributed clocks.

Q: How do I reset the counter from my PLC?

A: Use the process data bit for reset. You can also latch or store the counter value using the C track or control bits.

Oiltech Controls Insight

Engineers often use the EL5021 when a servo drive needs precise position feedback from a 1 VPP SinCos encoder. The integrated 5 V supply removes extra wiring. The 250 kHz input and 13-bit interpolation give smooth motion at high speed. For obsolete systems, this terminal is a reliable drop-in replacement. Contact us at info@oiltechcontrols.com or +86 158 8020 0923 for stock and lead time.
