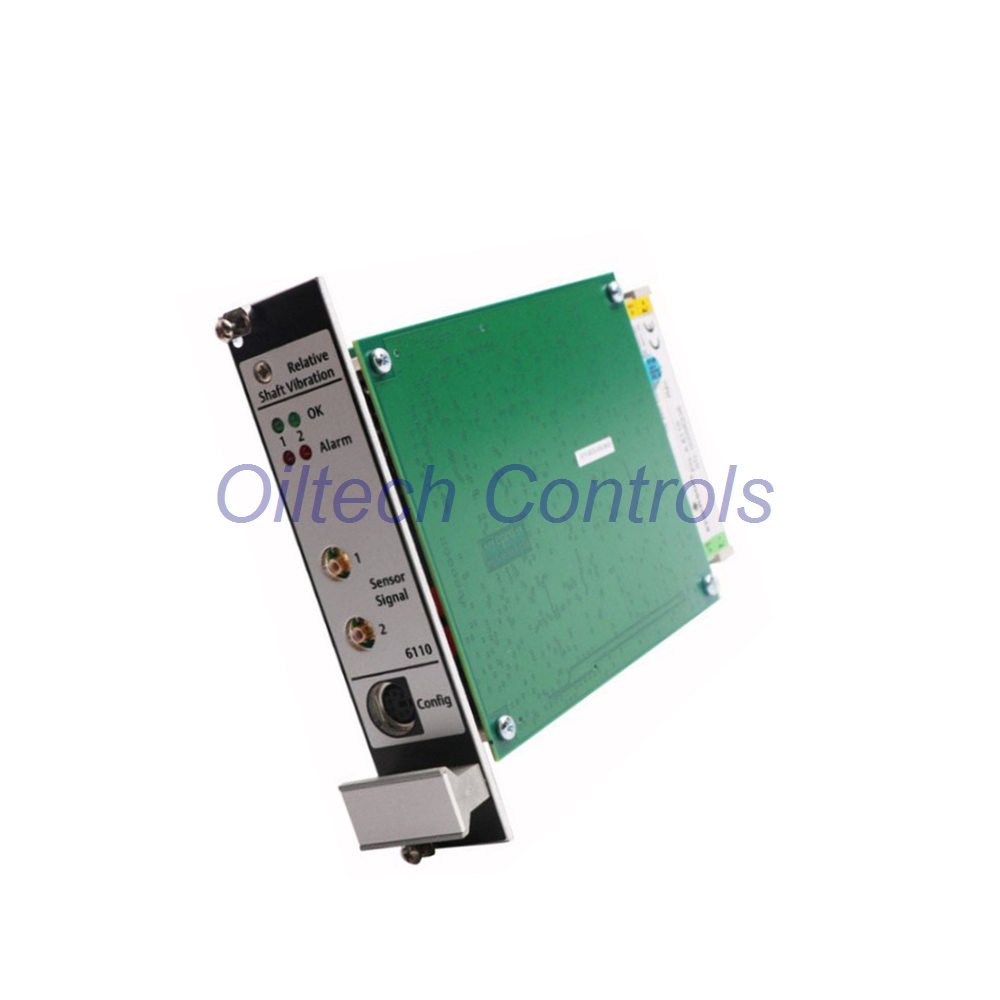

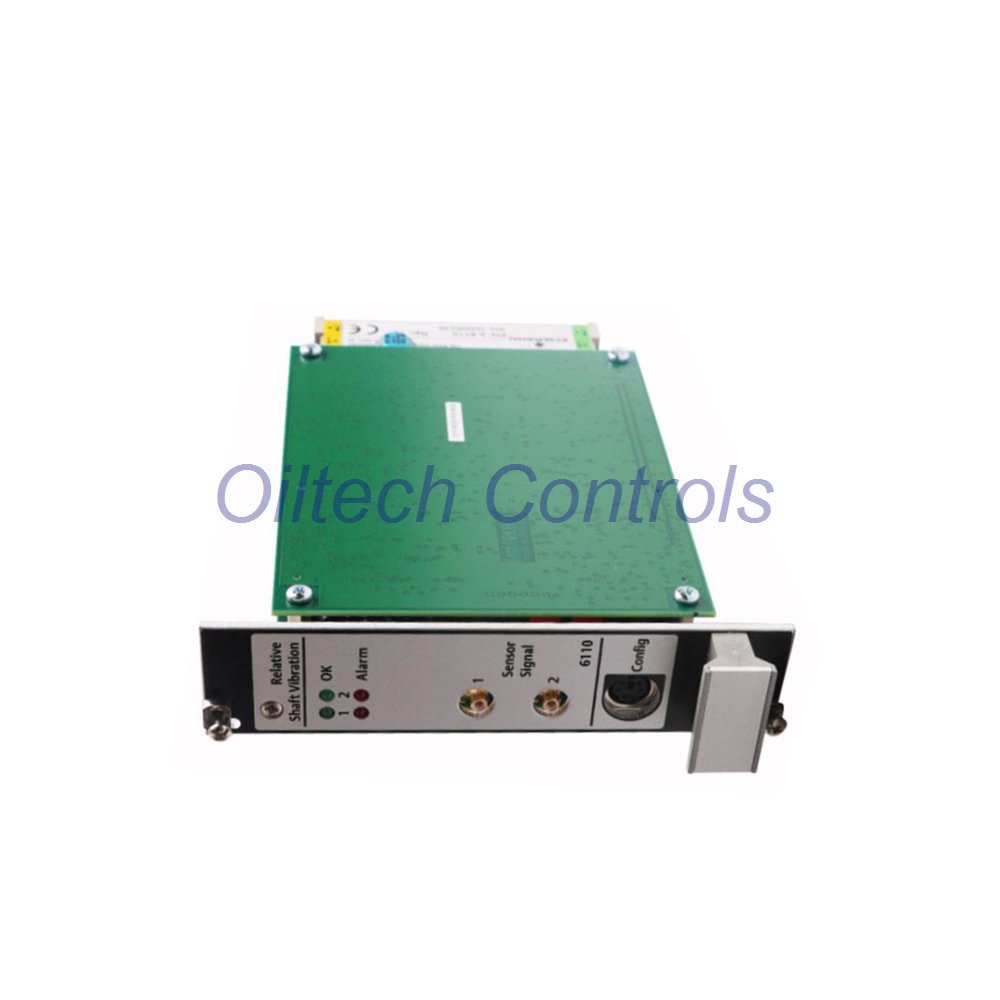

Emerson A6110 Shaft Vibration Monitor AMS 6500 Module

A6110 Shaft Relative Vibration Monitor

Brand: Emerson
Model: A6110
System: AMS 6500 Machinery Health Monitor
Type: Shaft Relative Vibration Module

Module Role

• Measure shaft movement
• Detect early machine faults
• Send alarm and relay signals
• Protect rotating equipment

Structure & Configuration Logic

A6110
│
├── Channel Layout
│     ├── Dual Channel
│     ├── Independent Mode
│     └── Combined Mode (Smax)
│
├── Input Type
│     ├── Eddy Current Sensor
│     └── Differential Signal
│
├── Output Layer
│     ├── 4–20 mA Output
│     ├── 0–10 V Output
│     └── Buffered Signal Output
│
└── Protection Logic
      ├── Alert Level
      ├── Danger Level
      └── Relay Trigger

Main Technical Data

• Input Voltage: 0 to -22 VDC
• Input Resistance: >100 kΩ
• Frequency Range: 1 Hz to 2000 Hz
• Power Supply: 24 VDC
• Power Use: ≤6 W
• Sensor Supply: -26.7 VDC
• Max Current: 35 mA

Measurement Performance

• Range: 0–400 mV to 0–8000 mV
• Accuracy: ±1%
• Resolution: 1% scale
• Fast response time
• Stable signal output

Outputs & Signals

• 4–20 mA per channel
• 0–10 V DC output
• Buffered ±10 V signal
• Load: <500 Ω (current)
• Load: >10 kΩ (voltage)

Alarm System

• Alert and danger levels
• Delay: 0–5 seconds
• Extended delay up to 36 seconds
• Adjustable hysteresis
• Remote bypass and multiply

Environmental Data

• Operating Temp: 0°C to 65°C
• Storage Temp: -30°C to 85°C
• Humidity: 5–95%
• Shock resistant design
• EMC compliant

Key Advantages

• High reliability design
• Real-time machine protection
• Compact 1-slot module
• Hot-swappable support
• Advanced diagnostics

Warranty & Delivery

• 12-month warranty
• Delivery via FedEx, UPS, DHL
• Fast global shipping
• Secure packing

FAQ (Practical Guide)

1. When should I use shaft relative vibration?

Use it when the machine case is stable and heavy.

2. Can this module work with all sensors?

No. It supports eddy current sensors only.

3. Is installation space large?

No. It uses only one slot. Saves space.

4. How to improve measurement accuracy?

Use correct sensor and keep wiring stable.

5. What to check before buying?

Check system type, sensor model, and signal range.
