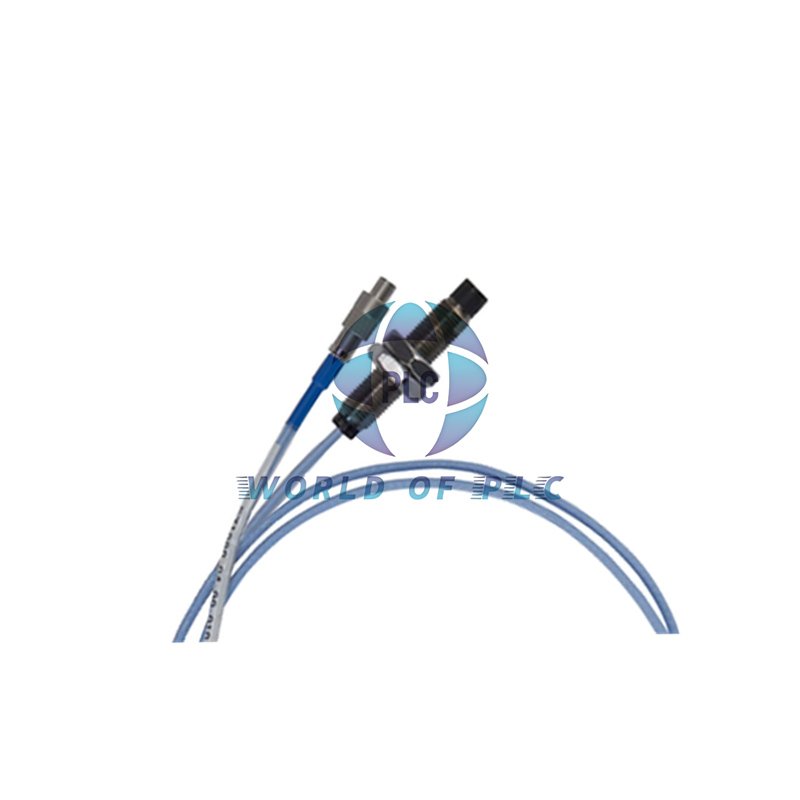

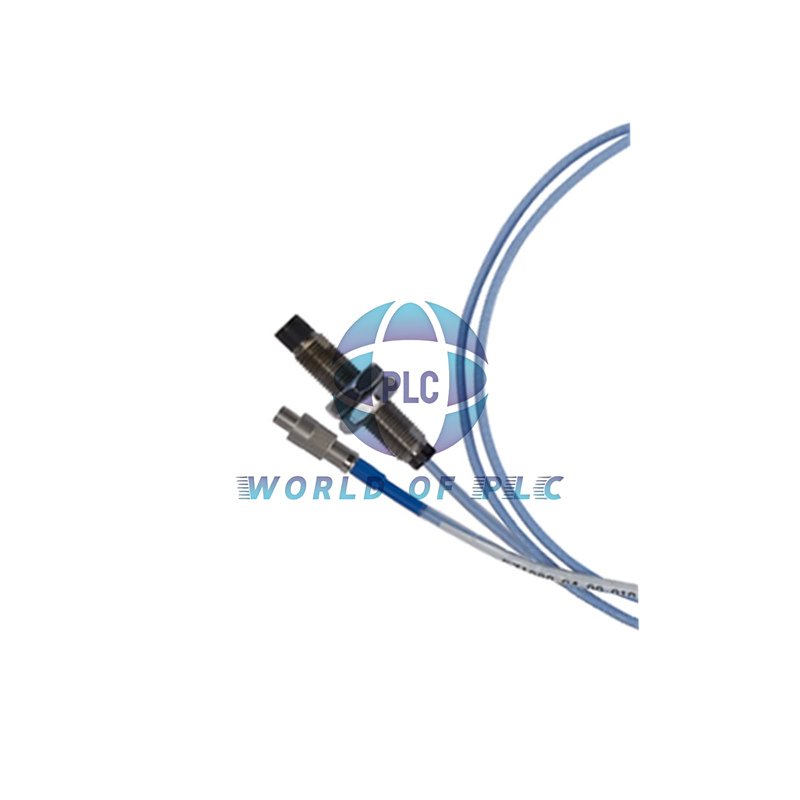

Emerson EZ1081-RM-00-010 8mm Reverse Mount Armored Sensor
The Emerson EZ1081-RM-00-010 is a rugged 8mm eddy current sensor with an armored cable and reverse-mount structure. It ensures precise, stable readings for turbines, compressors, and rotating equipment. Designed for continuous use under high temperature and pressure, it offers strong protection and lasting performance.
Main Highlights
- Reverse Mount (RM) design allows easy installation in compact spaces.
- Integrated armored cable provides extra protection against vibration and oil exposure.
- Wide operating range: -35°C to +180°C for sensor body.
- Stable Incremental Scale Factor (ISF): 7.87 V/mm (API) or 8 V/mm (ISO).
- High accuracy with ±0.025 mm linear deviation at 0–45°C.
Technical Data
- Brand: Emerson
- Model: EZ1081-RM-00-010
- Probe Diameter: 8 mm
- Case Thread: M10x1 | Unthreaded Length: 0 mm
- Cable Type: Armored, Cable Length: 1.0 m
- Measurement Range: 2 mm (80 mils)
- Air Gap: 0.5 mm (20 mils)
- Target Material: Ferromagnetic steel (42CrMo4, AISI 4140, C35, etc.)
- Protection Level: IP67 | IP68 with DOC-TEST
- Weight: Approx. 100 g (with cable)
- Material Composition: PEEK sensor tip, stainless steel body, FEP cable jacket
Suffix Structure (Ordering Tree)
- EZ1081 — 8mm Eddy Current Sensor
- RM — Reverse Mount Design
- 00 — 0 mm Unthreaded Length
- 010 — 1.0 m Armored Cable
Extended Performance
- Excellent temperature tolerance for high-speed turbines and compressors.
- Sealed to resist oil leakage up to 10,000 hPa at 120°C.
- Supports both Intrinsic Safety (ia) and Increased Safety (ec) classifications.
- Compatible with API and ISO signal calibration systems.
- Tested for SIL 2 functional safety under IEC 61508:2010.
Environmental Ratings
- Sensor: -35°C to +180°C
- Cable & Connector: -35°C to +150°C
- Pressure Resistance: Up to 145 psi at 120°C
- Humidity & Oil Resistance: Excellent for long-term field exposure
- Certifications: CE, ATEX, IECEx, CSA, CCC, CCOE PESO, KTL, CML Japan
Package & Warranty
- One EZ1081-RM-00-010 sensor with armored cable.
- Includes quick installation guide and inspection slip.
- Worldwide delivery via FedEx, UPS, or DHL.
- 12-month warranty against manufacturing defects.
FAQ
- Q: What is the benefit of the RM reverse mount design?
A: It allows easier mounting from behind panels or confined zones. - Q: Can the sensor be submerged in oil?
A: Yes, it is sealed to IP67 and can reach IP68 with DOC-TEST certification. - Q: Is the armored cable replaceable?
A: No, it is permanently attached to maintain full pressure sealing. - Q: What converters are compatible with this sensor?
A: It works with AMS EZ 1000 series converters supporting 8mm probes. - Q: How should I set the air gap during installation?
A: Keep a 0.5 mm initial gap for best signal linearity.
