🔍 Overview

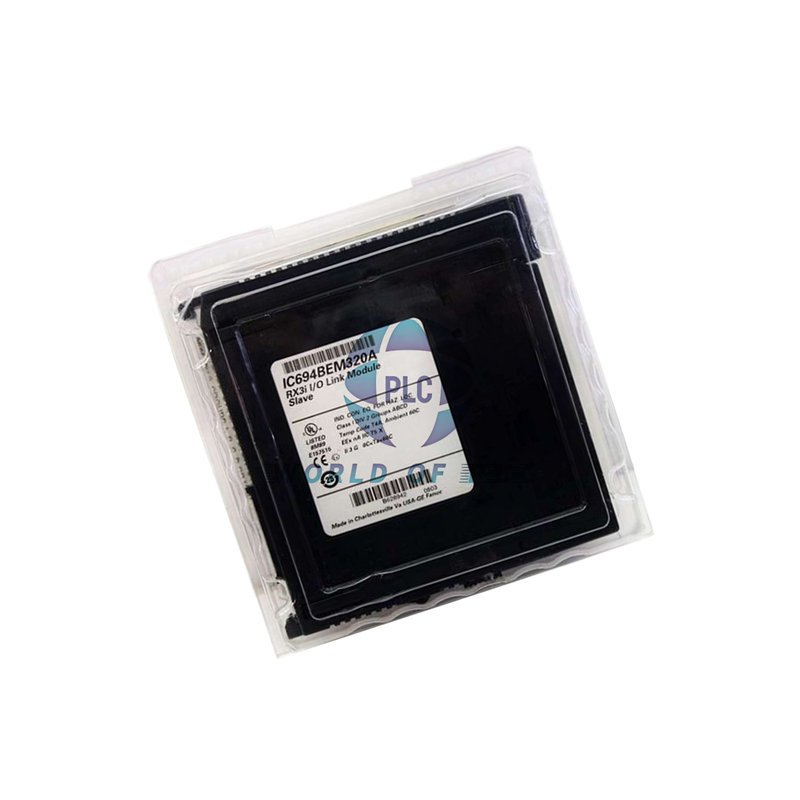

The Emerson IC694BEM320 I/O Link Module is a high-performance communication interface designed for GE Fanuc Series 90-30, 90-70, and PACSystems RX3i PLCs. It provides reliable, noise-immune I/O Link network connectivity, enabling distributed control, data exchange, and remote expansion across multiple automation devices.
Engineered for industrial applications such as CNC systems, packaging machines, and factory automation, this module ensures smooth data transmission and flexible scalability within your control network.
⚙️ Key Features
- Configurable I/O: Choose between 32 or 64 input points via simple jumper settings.
- Dual Serial Communication: Supports RS-485 and RS-422 protocols for high-speed data transfer.
- Broad Compatibility: Works seamlessly with RX3i, 90-30, 90-70, and GE Fanuc CNC Series 15, 16, 18.
- Scalable Architecture: No hard limit on the number of modules per master controller – expand as needed.
- Backplane Power Supply: Draws 5 V DC directly from the system backplane – no external supply required.
- Industrial Reliability: Designed for indoor use with robust RS485/RS422 cabling to minimize noise interference.
🧠 Technical Specifications
| Parameter | Description |
| Brand | Emerson (formerly GE Fanuc) |
| Model | IC694BEM320 |
| Series | PACSystems RX3i |
| Module Type | I/O Link Network Interface |
| Input Points | 32 or 64 configurable via jumper |
| Communication Ports | 2 serial ports (RS485 / RS422) |
| Protocol Support | GE Fanuc I/O Link |
| Network Role | Slave processor |
| Power Supply | 5 V DC from backplane |
| Compatibility | Series 90-30 / 90-70 / RX3i / CNC Series 15, 16, 18 |
| Installation | RX3i universal backplane |
| Environmental | Indoor use only – avoid humidity |
🔧 Application Examples
- CNC Automation: Connect multiple servo drives and position sensors to the main CNC controller, enabling precise motion control with minimal wiring.
- Packaging Lines: Integrate distributed I/O modules to coordinate conveyor motors and sensors, enhancing speed and throughput in automated packaging.
- Factory Data Acquisition: Use the IC694BEM320 to expand data collection capabilities within RX3i systems for production monitoring and predictive maintenance.
⚙️ Configuration and Setup Guide
- Install the module into the RX3i universal backplane.
- Select input mode (32 or 64) via jumper settings.
- Connect RS485/RS422 cables to link remote devices.
- Configure device address in the RX3i controller software.
- Verify data exchange through the I/O Link diagnostic tool.
💬 Frequently Asked Questions
Q1: How many modules can connect to one master?
→ No specific limit – depends on power supply capacity and address availability.
Q2: What’s the difference between 32 and 64 input modes?
→ 64-input mode offers double the data points, ideal for large applications requiring more I/O.
Q3: Can it work with CNC equipment?
→ Yes, fully compatible with GE Fanuc CNC Series 15, 16, 18, and F-D Mate controllers.
Q4: Is external power required?
→ No, the module draws power from the system backplane.
📦 Package Contents
- Emerson IC694BEM320 I/O Link Module
- Installation and Configuration Guide
- Technical Documentation
🚚 Warranty & Shipping
- 12-Month Quality Warranty
- Fast Worldwide Shipping via FedEx / UPS / DHL
- Professional Technical Support Team
🔗 Related Products
- IC695EDS001 DNP3 Communication Module
- IC695EIS001 Ethernet Server Module
- RX3i Main Controller Modules
