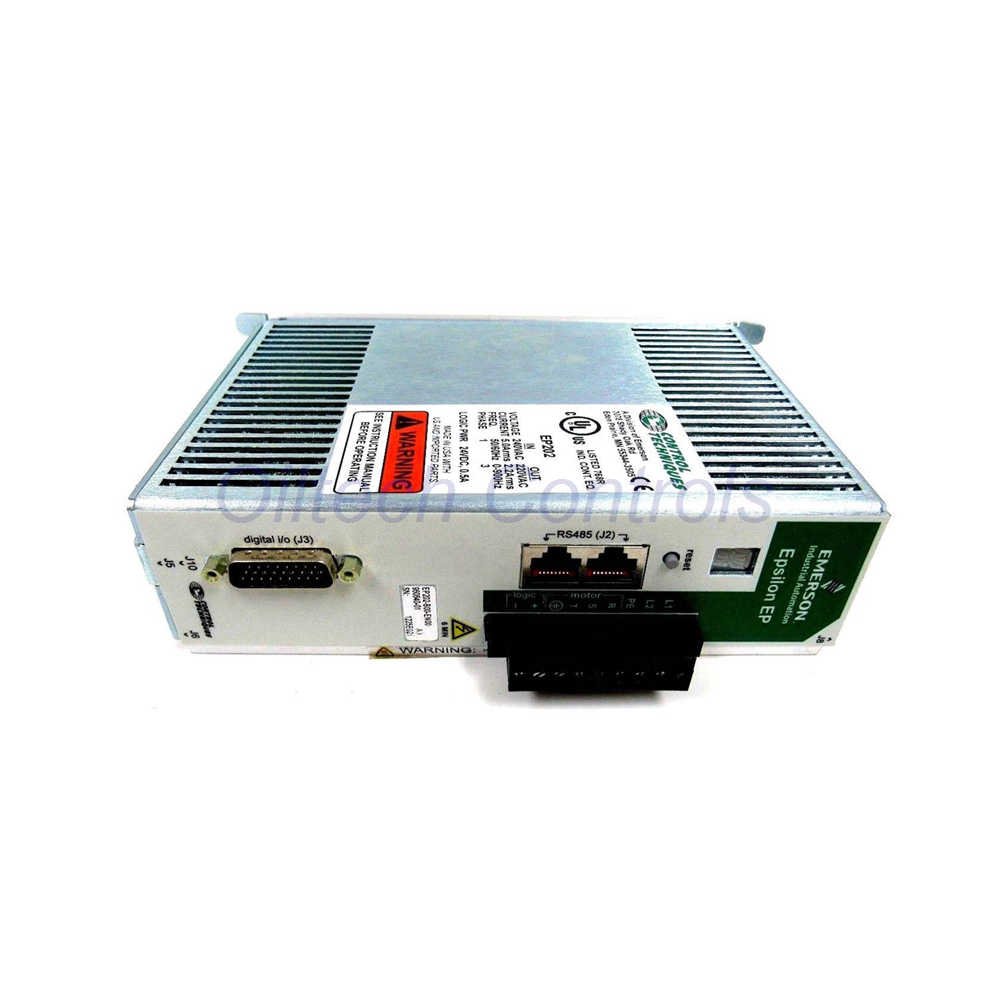

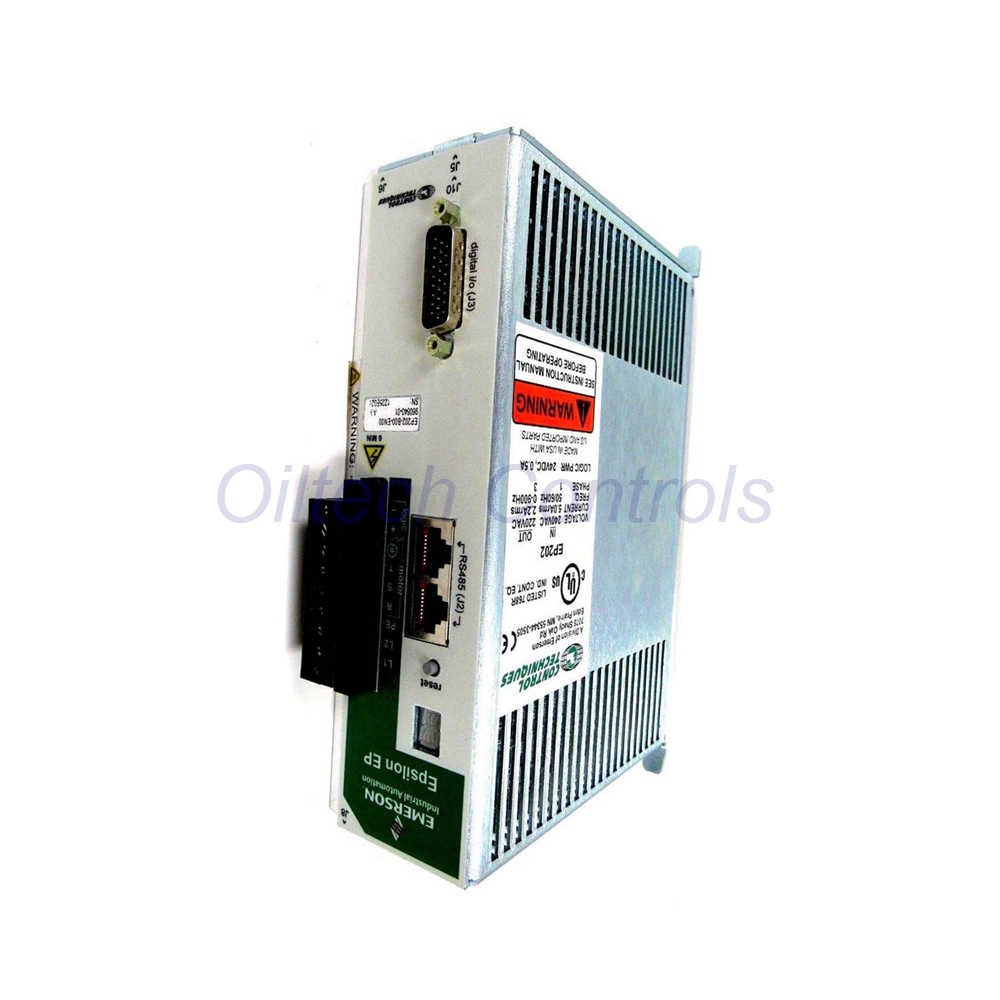

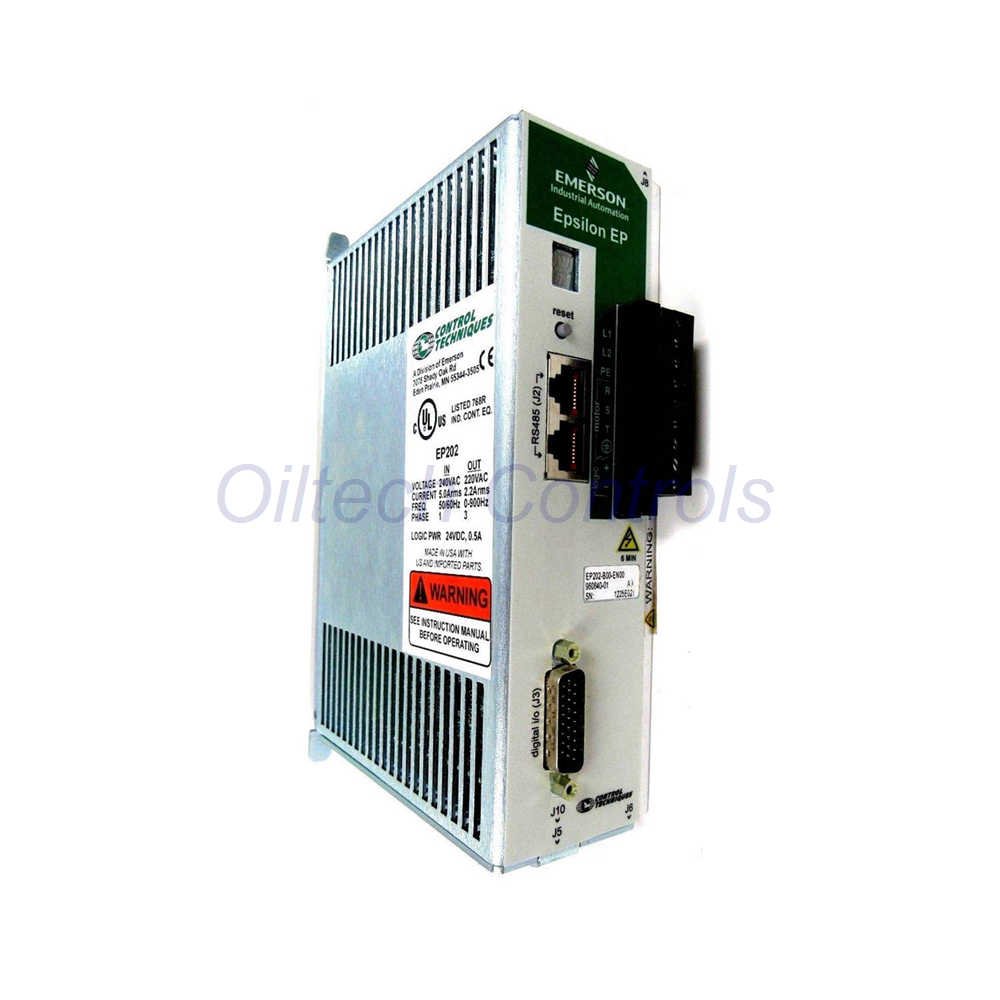

EP202-B00-EN00 Emerson Control Techniques Digital Servo Drive

EP202-B00-EN00 Emerson Control Techniques Digital Servo Drive

The Emerson EP202-B00-EN00 is a high-performance digital servo drive designed for precise motion control applications. This EP202 series module operates on a wide input range of 20 Vac to 264 Vac, delivering exceptional power density. Please download the Emerson EP202 User Manual for detailed terminal wiring and pulse configuration steps.

Core Engineering Specifications

• Model Identification: EP202-B00-EN00
• Input Power (AC): 20 Vac to 264 Vac, Single Phase, 47-63 Hz
• Input Power (DC): 10 Vdc to 340 Vdc (UL Pending)
• Conversion Efficiency: 95% at full rated output
• Control Interface: ±10 Vdc Analog Command (14-bit resolution)
• Pulse Mode Frequency: Up to 1 MHz (Differential) or 500 kHz (Single-ended)
• Digital I/O: 5 optically isolated inputs and 3 short-circuit proof outputs
• Serial Communication: RS-485 using Modbus protocol (default 19.2k baud)
• Environmental Protection: Drive rated at IP20; supports IP65 motor feedback
• Encoder Supply: 5 Vdc output, 250 mA maximum for master encoder feedback

Oiltech Controls’ Insight & Review

• The EP202-B00-EN00 is highly valued for its 14-bit analog resolution, providing smoother velocity loops than standard 12-bit drives.
• During field testing, the EP202-B00-EN00 demonstrated superior noise immunity on its differential pulse inputs, even in high-EMI environments.
• The 10 kHz switching frequency strikes an ideal balance between low acoustic motor noise and reduced heat generation.
• We recommend using PowerTools Pro software to configure the input debounce (0-2000 ms) to eliminate nuisance tripping from mechanical relay chatter.
• Technical inquiries can be directed to info@oiltechcontrols.com for expert application sizing.

Equipment Compatibility & Deployment

• Compatible with Emerson NT Series motors (IP65/IP54 rating).
• Ideally suited for high-speed labeling machines requiring 1 MHz quadrature input.
• Perfect for CNC axis control utilizing the ±10 Vdc differential analog command.
• Integrates seamlessly into Modbus RTU networks for remote parameter monitoring.
• Supports multi-axis coordination via master encoder daisy-chaining using the 5V power output.

Logistics & Service Terms

• Shipping Status: Dispatched within 24-28 hours of order verification.
• Warranty Policy: Industry-leading 12-month quality guarantee.
• Courier Services: Reliable global delivery via Fedex, UPS, and DHL.
• Support: Direct engineering consultation available via WhatsApp: +86 158 8020 0923.

Professional FAQ & Selection Guidance

• Q1: What is the benefit of the 14-bit analog input on the EP202-B00-EN00?
  The 14-bit resolution allows the drive to recognize much smaller voltage changes, resulting in significantly higher precision for speed and torque control compared to standard drives.
• Q2: Can this drive operate on a DC bus instead of AC?
  Yes, the EP202-B00-EN00 supports 10 Vdc to 340 Vdc, allowing for common DC bus configurations in multi-axis systems to improve energy efficiency.
• Q3: Is the drive compatible with third-party motors?
  While optimized for Emerson NT motors, it can run any permanent magnet synchronous motor (PMSM) if the feedback signals match the RS422/TTL requirements of the drive.
• Q4: How should I handle the drive temperature in a sealed cabinet?
  Ensure adequate airflow for the IP20 chassis. Since the drive is 95% efficient, you must calculate the 5% heat loss at your peak current to size your cooling fans.
• Q5: Selection Guide: Should I choose the EP-B, EP-I, or EP-P version?
  The EP202-B00-EN00 (EP-B) is the “Base” model for analog/pulse control. Choose EP-I for indexing or EP-P for Ethernet-based protocols like EtherNet/IP.
