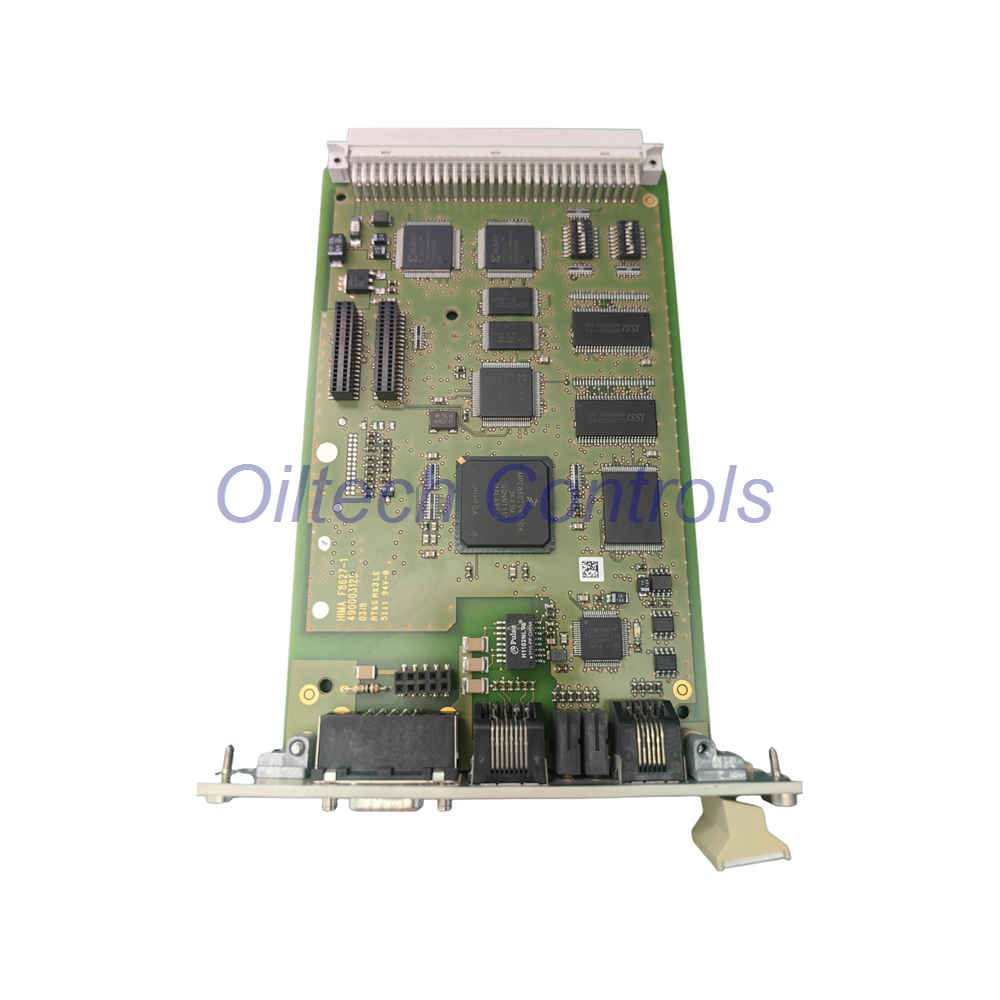

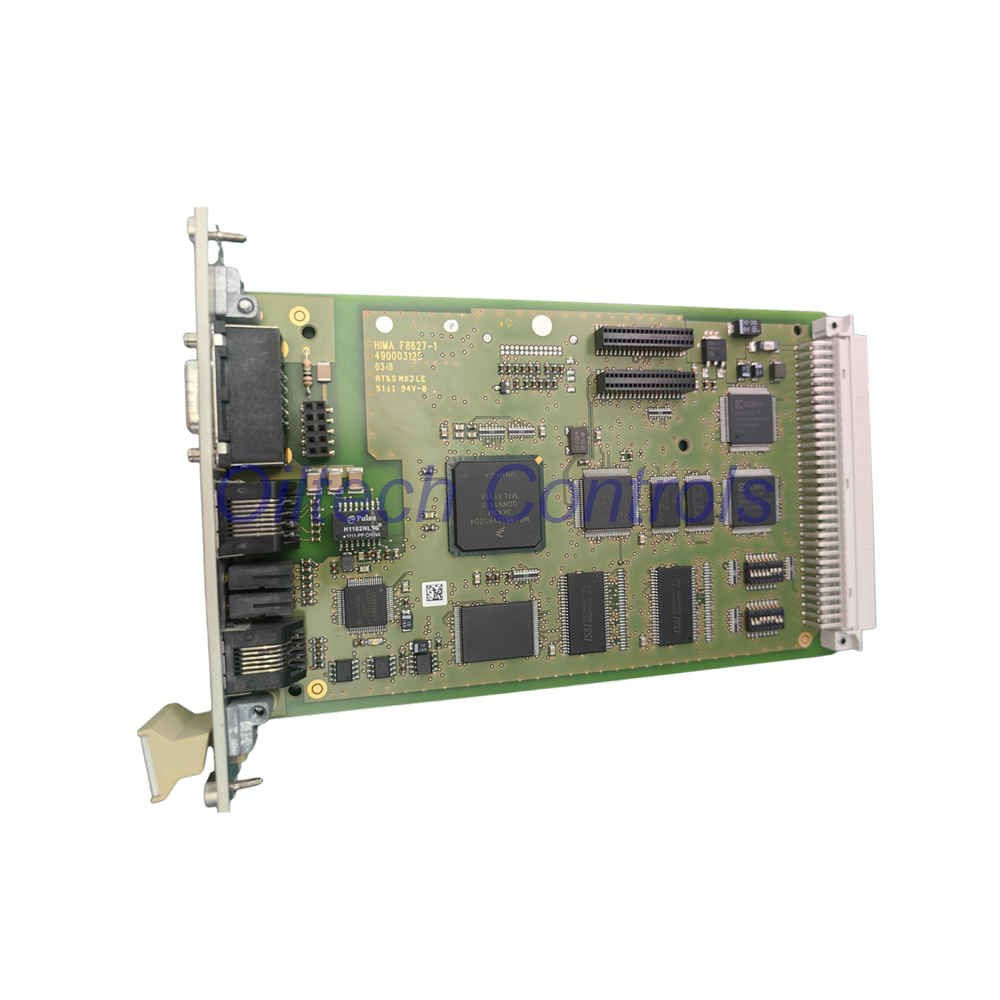

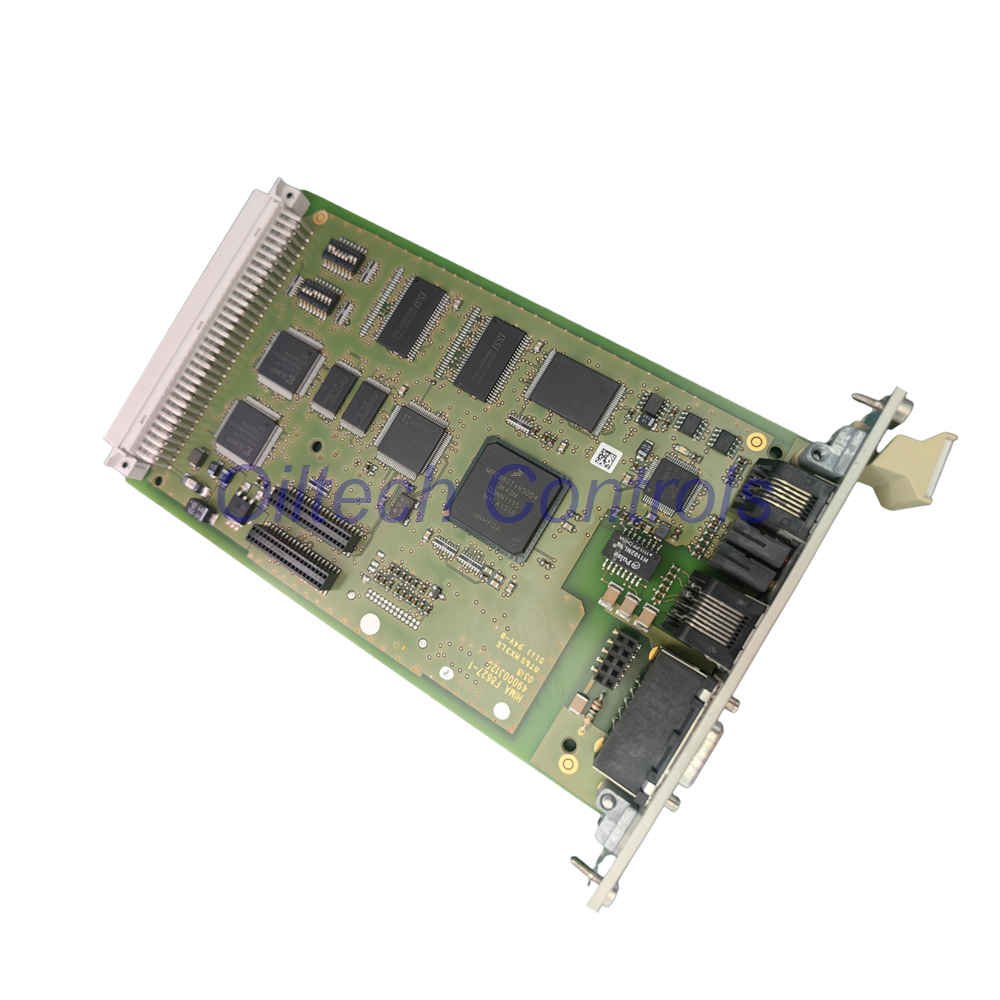

F 8627X HIMA Fast Ethernet Communication Module Overview
F 8627X is a high-performance Fast Ethernet communication module developed by HIMA.
It enables secure network communication in H41q and H51q safety controller systems.
The module supports SafeEthernet, MODBUS-TCP, and OPC communication.
It also allows controller programming through Ethernet using ELOP II engineering software.
This module helps plants build a unified industrial network using one Ethernet infrastructure.
Core Communication Capabilities
- Fast Ethernet communication through 100Base-T RJ45 interface.
- Secure controller communication using SafeEthernet protocol.
- Supports MODBUS-TCP slave communication.
- Compatible with OPC DA server communication.
- Supports OPC Alarm and Event integration.
- Allows CPU configuration and diagnostics over Ethernet.
- Supports system programming through ELOP II V4.1 or higher.
- Designed for industrial safety automation networks.
System Compatibility
- Designed for HIMA H41q safety controller systems.
- Designed for HIMA H51q safety controller systems.
- Works with safe CPU modules F8650X and F8652X.
- Supports non-safe CPU modules F8651X and F8653X.
- Fully compatible with engineering tool ELOP II.
- Supports Ethernet-based safety configuration.
Technical Specifications
- Brand: HIMA
- Model: F 8627X
- Module Type: Fast Ethernet communication module
- Communication Interface: 100Base-T Ethernet
- Connector Type: RJ45 industrial connector
- Supported Protocols: SafeEthernet, MODBUS-TCP, OPC
- Network Speed: 100 Mbps
- Network Mode: Mono or redundant communication
- Controller Programming: Ethernet engineering access
- Configuration Software: ELOP II V4.1 or newer
- Mounting Format: 19-inch rack module
- Module Height: 3 HU
- Module Width: 4 WU
- Industrial Bus Integration: Ethernet-based communication
- Diagnostic Access: Remote network diagnostics
- Environmental Design: Industrial control cabinet installation
Physical Dimensions
- Installation type: 19-inch rack module.
- Height: 3 height units.
- Height size: 3 × 44.45 mm.
- Width: 4 width units.
- Width size: 4 × 5.08 mm.
- Compact design saves cabinet space.
Key Advantages
- Single Ethernet network for configuration and communication.
- Reduces the need for multiple field networks.
- Open industrial communication standards.
- High reliability for safety automation systems.
- Fast engineering access for programming and updates.
- Improves plant data visibility and diagnostics.
- Supports scalable automation architecture.
Compliance and Certifications
- IEC 61131-2 industrial controller standard.
- EN 61000-6 electromagnetic compatibility.
- EN 50081-2 industrial emission standard.
- EN 50082-2 industrial immunity standard.
- IEEE 802.3 Ethernet communication standard.
- EN 50170 industrial communication compliance.
Typical Application Areas
- Safety instrumented systems.
- Oil and gas automation networks.
- Industrial safety controllers.
- Process control plants.
- Power generation control systems.
- Chemical production safety systems.
Shipping and Warranty
- Warranty period: 12 months.
- Each unit is tested before delivery.
- Secure industrial packaging protects the module.
- Worldwide shipping available.
- Courier options include FedEx, UPS, and DHL.
Professional FAQ
- Can this module run both safety and standard communication?
- Yes. SafeEthernet handles safety data while MODBUS-TCP supports standard data exchange.
- How many Ethernet ports are available?
- The module uses a single RJ45 Fast Ethernet interface for network connection.
- What is the main benefit of SafeEthernet?
- SafeEthernet provides certified safety communication for safety control systems.
- How should engineers choose between F8627 and F8627X?
- The F8627X adds newer Ethernet programming and extended protocol support.
- What should be checked before installation?
- Confirm rack compatibility, CPU model, and Ethernet network design.
