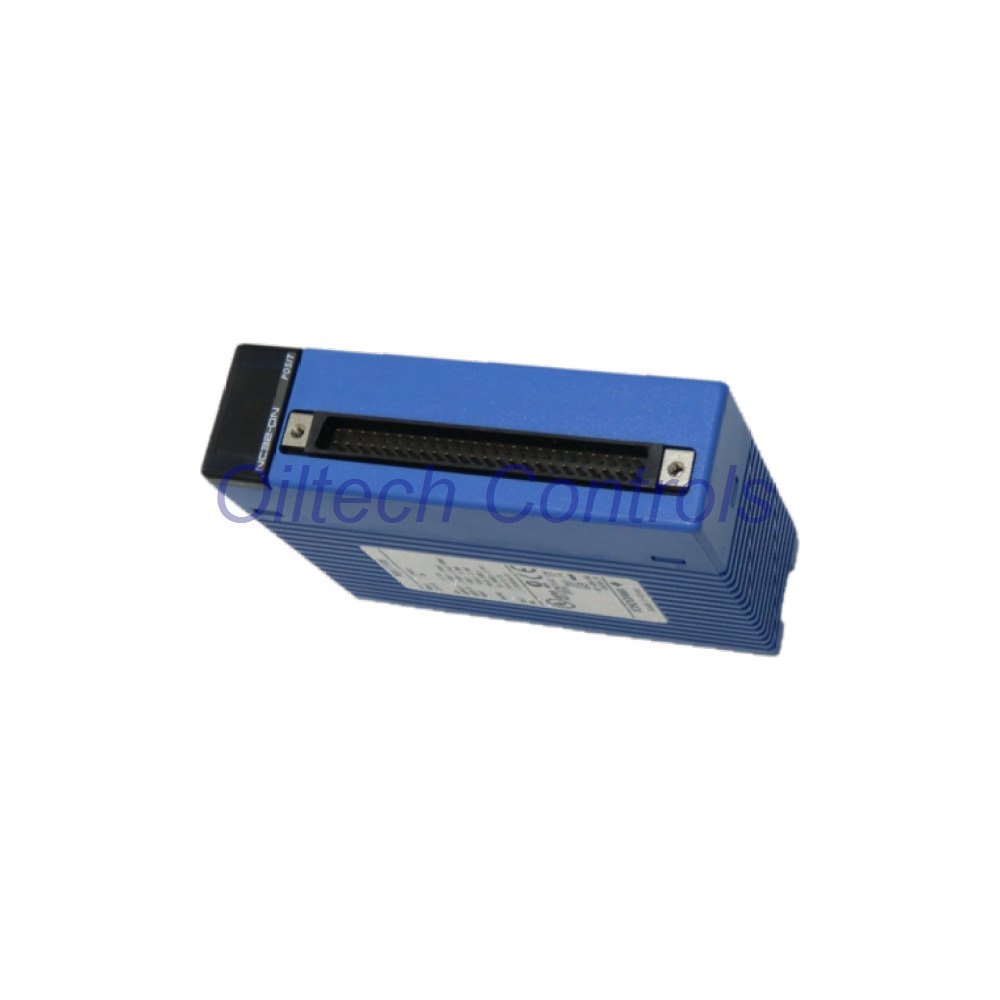

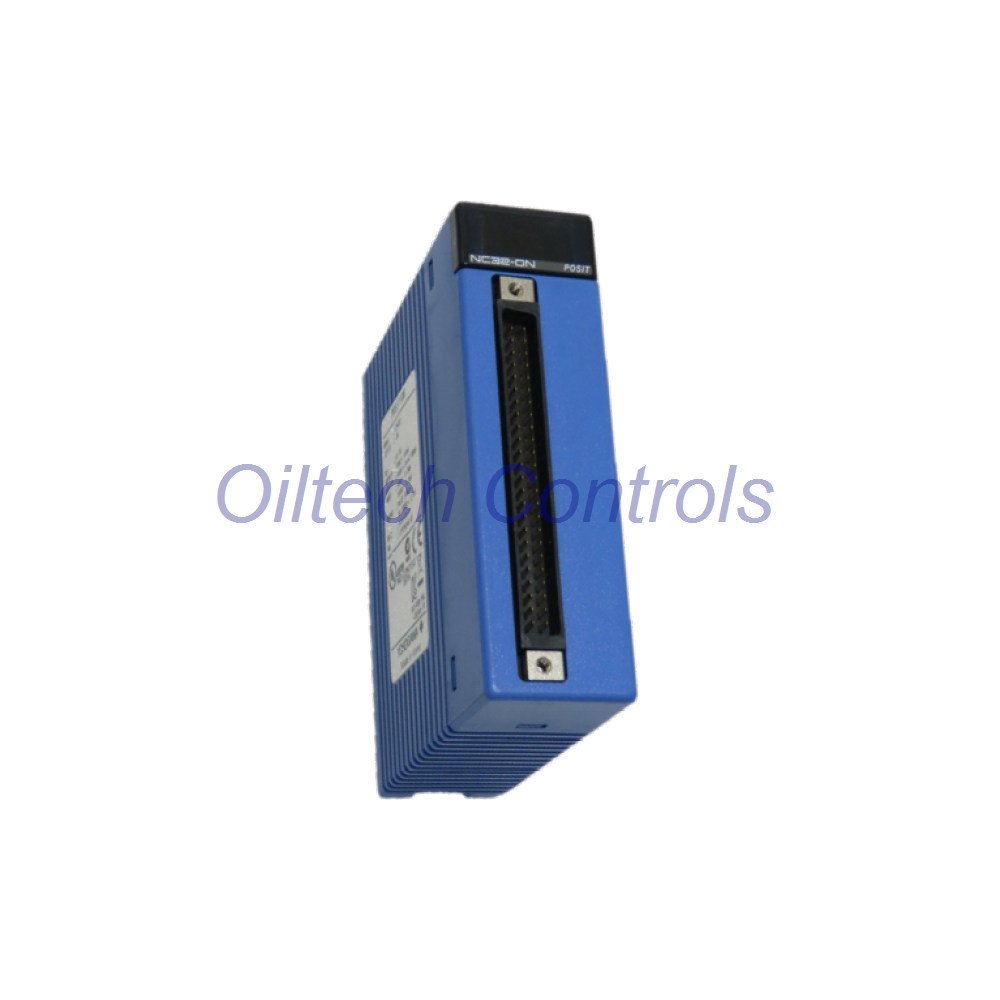

F3NC32-0N Yokogawa Positioning Module (Pulse Output) – Product Overview
The F3NC32-0N is a 2-axis positioning module from Yokogawa. It uses open-loop control with position reference pulse output. Also, the module drives servomotors up to 5 Mpps and stepping motors up to 1 Mpps. Each axis selects its own pulse type: CW/CCW, travel/direction, or phase A/B. Moreover, this module fits FA-M3 series systems. Therefore, it suits high-speed multi-axis motion tasks.
Engineers choose the F3NC32-0N for fast pulse output and flexible interpolation. In addition, it offers stable pattern operation. It supports 2-axis linear interpolation and 2-axis circular interpolation. Position control, speed control, and switchover between them are all available. Besides, the module keeps 2000 position data records per axis. Meanwhile, it stores up to 2000 action pattern records.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Yokogawa |
| Model | F3NC32-0N |
| Series | FA-M3 Positioning Module (Pulse Output) |
| Module Type | 2-axis positioning module |
| No. of Axes | 2 |
| Control Method | Open-loop control with position reference pulse output |
| Output Pulse Type | RS-422A differential line driver; 5 Mpps (servo), 1 Mpps (stepping); CW/CCW, travel/direction, phase A/B selectable per axis |
| Counter Channels | 2 |
| Counter Input Pulse Type | Incremental encoder (phase A/B), absolute encoder; 5 Mpps after 4x multiplication |
| Resolution | Position reference range −2,147,483,648 to 2,147,483,647 pulses; speed reference 1 to 5,000,000 pps |
| External Contact Input | 6 inputs per axis (origin, forward limit, reverse limit, driver alarm, external trigger, general-purpose); emergency stop |
| External Contact Output | 3 outputs per axis (1 deviation pulse clear, 2 general-purpose); 1 SEN signal per axis |
| Units of Measurement | mm, degrees, pulses |
| Control Modes | Position control, speed control, position ↔ speed switchover |
| Interpolation Modes | 2-axis linear interpolation; 2-axis circular interpolation |
| Operation Modes | Pattern operation and direct operation |
| Pattern Operation | PTP, CP normal, CP pass-by, CP pass-through; 2000 action pattern records max (500 actions x 4 patterns); 2000 position data records per axis |
| ACC/DCC Curve | Automatic trapezoidal; automatic S-shape |
| ACC/DCC Time | 0 to 32,767 ms; independent acceleration and deceleration settings |
| Other Positioning Features | Target position change during movement; specified speed change during movement |
| Origin Search | Two automatic types; manual search with any external contact input combination |
| Manual Operation | Jog operation; manual pulse generator mode |
| Other Functions | Electronic gear, teaching, current position setup, M code output, override, software limit switch, counter/zone coincidence detection |
| Data Backup | Flash ROM, 100,000 times rewritable |
| Temperature Range | Standard FA-M3 cabinet ambient range; install in a ventilated control panel |
| Environmental Resistance | Designed for factory floor use inside a protected enclosure |
| Anti-interference | RS-422A differential line driver output rejects common-mode noise on long cables |
| Certification | Yokogawa FA-M3 series conformity; ask us for the current certificate set before order |
Installation Guide
- First, mount the module in a Yokogawa FA-M3 base unit slot.
- Then keep pulse output cables short and shielded. Use twisted pairs for RS-422A lines.
- Next, wire origin, limit, and alarm inputs to the correct axis connector pins.
- Also, set pulse type per axis before you start motion. Match the servo or stepper driver input.
- Moreover, confirm emergency stop wiring and SEN signal wiring before power-on.
- Finally, check the software limit switch values after you set the current position.
Setup and Maintenance Convenience
Setup is fast. You set units in mm, degrees, or pulses. Electronic gear scales commands to machine travel. Similarly, teaching mode records actual positions. Jog and manual pulse generator modes help during commissioning. In addition, the flash ROM keeps data without a battery. It is rewritable 100,000 times. Therefore, change target position or speed during movement to cut cycle time.
Compatibility Notes
- First, it fits Yokogawa FA-M3 series base units.
- Also, it works with servomotors that accept 5 Mpps pulse trains.
- Moreover, it works with stepping motors up to 1 Mpps.
- Besides, it accepts incremental encoders (phase A/B) and absolute encoders.
- Thus, use RS-422A compliant differential line drivers on the driver side.
- Finally, ask us to check your driver and encoder pairing before you buy.
Typical Applications
- For example, 2-axis XY tables and gantries.
- Also, pick-and-place units with linear and circular paths.
- Moreover, packaging machines with pattern operation.
- Besides, semiconductor and electronic assembly stages.
- Finally, retrofit of legacy FA-M3 lines with obsolete modules.
Diagnostics and Troubleshooting
The module reports driver alarm input per axis. Also, deviation pulse clear output helps you reset position error. Counter coincidence and zone coincidence detection flag target arrival. Meanwhile, limit switch inputs stop motion safely. Use the M code output to handshake with PLC logic. As a result, these signals shorten fault finding on the line.
Why Buy From Oiltech Controls?
- First, over 15 years of hands-on industrial automation spare parts supply.
- Also, global shipment support to plants worldwide.
- Moreover, tested industrial surplus and refurbished options available.
- In addition, 12-month warranty on every module we ship.
- Besides, technical verification before shipment on each unit.
- Finally, support for obsolete control systems that others cannot source.
Email us at info@oiltechcontrols.com or chat on WhatsApp at +86 158 8020 0923. Then send your driver and encoder details for a fast compatibility check.
Shipping and Packaging
- First, couriers: FedEx, UPS, DHL.
- Also, each module ships in anti-static packing with shock protection.
- Moreover, package list: 1 x F3NC32-0N module, anti-static bag, protective carton, packing slip.
- Finally, warranty: 12 months from delivery.
FAQ
Q: How many axes does the F3NC32-0N control?
A: It controls 2 axes with independent pulse output settings.
Q: What is the maximum output pulse rate?
A: 5 Mpps for servomotors and 1 Mpps for stepping motors.
Q: Does it support circular interpolation?
A: Yes. It supports 2-axis linear and 2-axis circular interpolation.
Q: Is the module tested before shipment?
A: Yes. We verify each unit before it leaves our warehouse.
Q: What warranty do you offer?
A: A 12-month warranty covers every module we sell.
Q: Which couriers do you use?
A: We ship by FedEx, UPS, and DHL.
