Product Overview

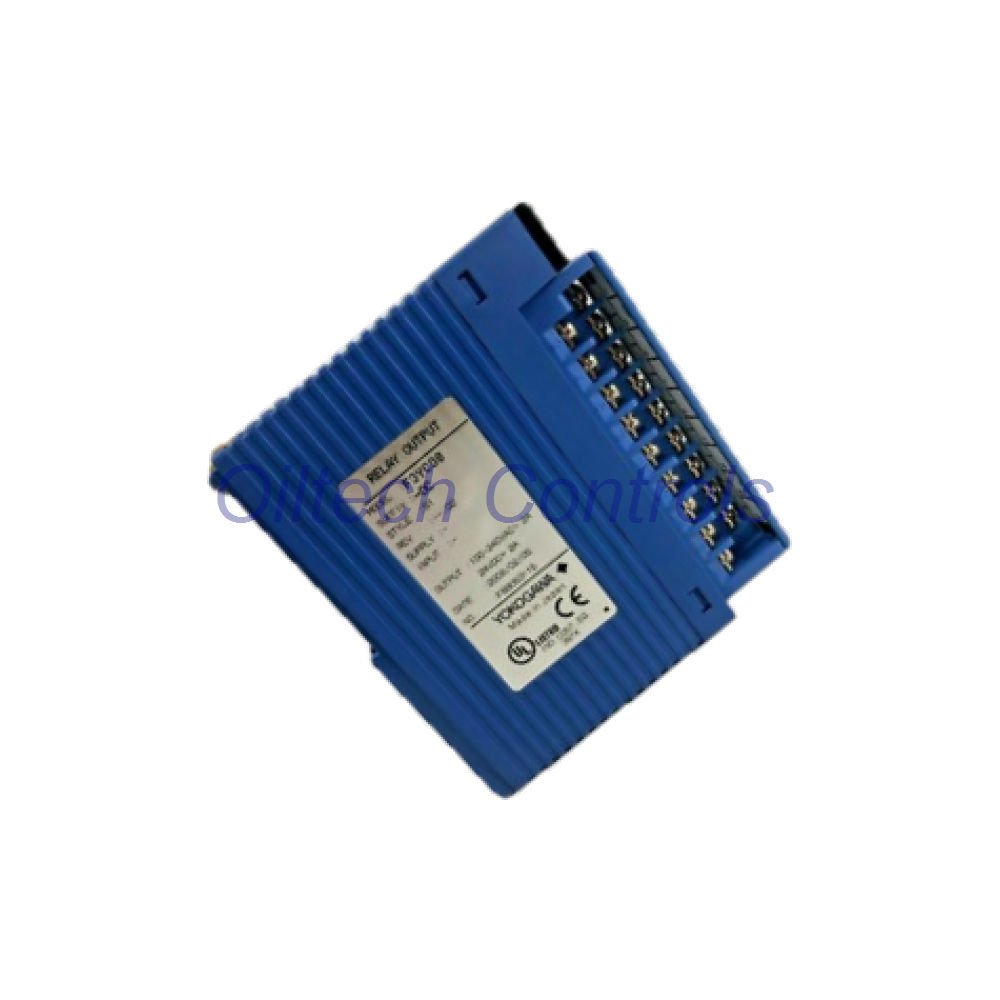

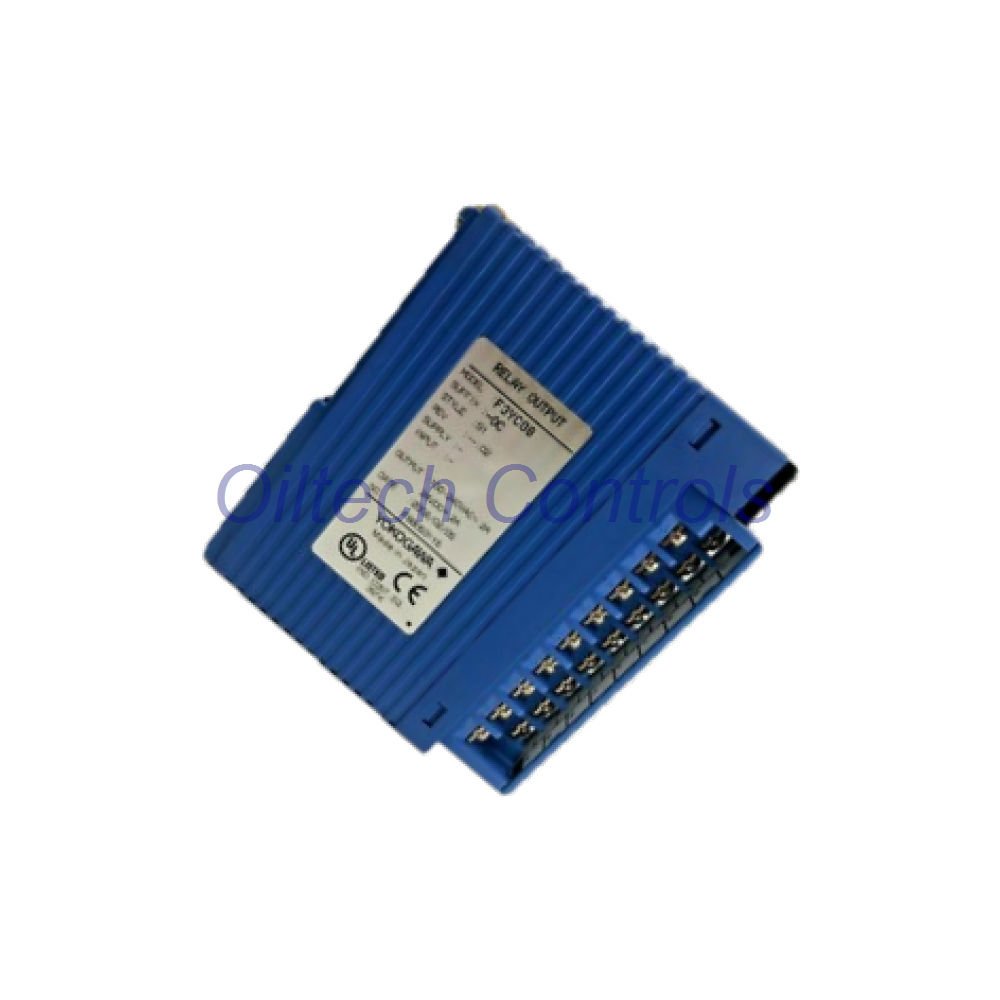

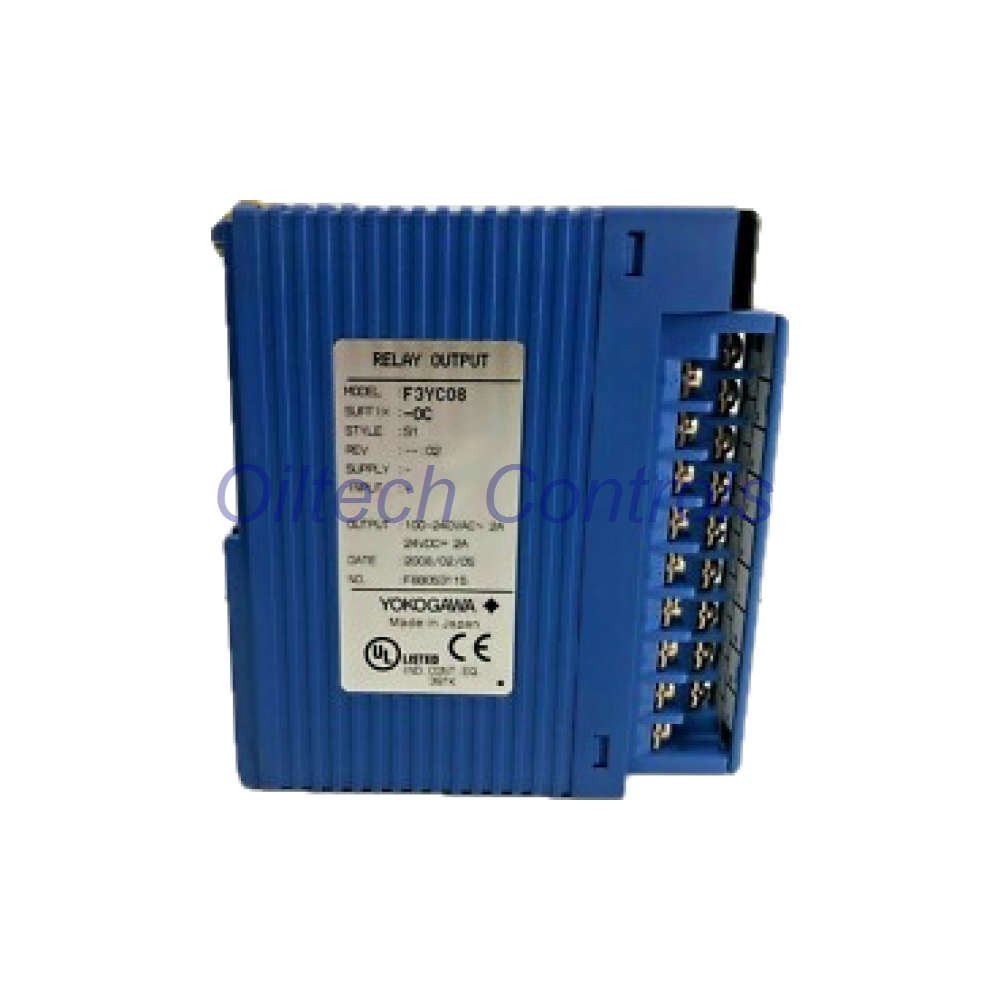

F3YC08-0C is an 8-point relay output module for industrial control systems. Each point works independently. The module uses mechanical isolation. It switches DC 5-24 V and AC 100-240 V loads. Max load current is 2 A per point. Response time is 10 ms max for both OFF→ON and ON→OFF. The F3YC series suits legacy and new control racks that need hard contact outputs. You get tested hardware, clear labeling, and 12-month warranty from Oiltech Controls.
Technical Specifications
| Brand | Oiltech Controls (supplied module) |
| Model | F3YC08-0C |
| Series | F3YC |
| Module type | Relay output module |
| Output type | Relay contact |
| Number of outputs | 8 points |
| Points per common | All points independent |
| Isolation method | Mechanical isolation |
| Rated load voltage | DC 5-24 V / AC 100-240 V |
| Max load current | 2 A per point |
| Response time OFF→ON | 10 ms max |
| Response time ON→OFF | 10 ms max |
| Life mechanical | 20,000,000 operations or more |
| Life electrical | 100,000 operations or more |
| ON voltage | Not specified |
| Off-time leakage current | Not specified |
| Surge protector | None |
| CPU error output HOLD/RESET | Not required |
| Current consumption | 205 mA at 5 V DC |
| External power supply | Not required |
| External connection | 18-point terminal block, M3.5 screw |
| Weight | 180 g |
| Temperature range | Operating 0 to 55°C / Storage -20 to 75°C |
| Humidity range | 10 to 90% RH, non-condensing (operating and storage) |
| Environment tolerance | No corrosive gas, no flammable gas, no heavy dust |
| Interference resistance | Mechanical relay isolation blocks ground noise between field and logic |
| Resolution | 1 bit per point (ON/OFF) |
| Linearity / frequency response | Not applicable to contact outputs |
| Measurement range | Not applicable; contact rating range as above |
Key Notes for Relay Output Use
- The relays are not hermetically sealed. Dust and corrosive gas shorten relay life.
- Silicone gas risk: SiO2 deposits can cause bad contact. Risk is high below 24 V DC and 500 mA.
- In such environments, choose transistor output modules or other semiconductor outputs.
- Keep the cabinet free of silicone-based materials near the relays.
Installation Guide
- Mount the module in a clean cabinet. Keep 0 to 55°C air around it.
- Wire field loads to the 18-point M3.5 screw terminal block. Tighten screws firmly.
- Keep AC and DC load cables apart. Route signal cables away from power lines.
- Add external fuses or breakers for each load. The module has no surge protector.
- Check load current. Stay at or below 2 A per point.
Commissioning and Maintenance
- Power the rack. Measure 5 V DC logic supply. Current draw is about 205 mA.
- Force each point ON and OFF. Confirm 10 ms max response at the load.
- Check contact resistance after long idle time. Replace relays that show bad contact.
- Log operation counts. Plan replacement near 100,000 electrical operations.
- Clean dust from the cabinet on a fixed schedule.
Compatibility
- Fits racks that accept the F3YC series 8-point relay output module.
- Drives solenoids, lamps, small contactors, and signal relays within rating.
- Works with DC 5-24 V and AC 100-240 V field circuits.
- No external power supply needed. Logic power comes from the rack.
Certification and Quality
- Each unit is powered and function tested before shipment.
- Technical verification is done by our engineers.
- Test report and label photos are available on request.
Packing List
- 1 x F3YC08-0C relay output module
- 1 x anti-static bag and foam packing
- 1 x test label and warranty card
Warranty and Shipping
- 12-month warranty covers function defects.
- Ship via FedEx, UPS, or DHL. Tracking number follows dispatch.
- Orders ship after technical verification.
Typical Applications
- PLC relay output expansion in machine cells
- Valve and solenoid drive in process lines
- Lamp and alarm switching in panels
- Retrofit of legacy control racks
- Small contactor control with independent points
Diagnostics
- Point stays OFF: check logic command and terminal screw torque.
- Point stays ON: check welded contacts and load inrush current.
- Bad contact: check for silicone gas, dust, or low-load oxidation.
- Short relay life: check load current, surge, and operation count.
Why Buy From Oiltech Controls
- 15+ years in industrial automation spare parts
- Global shipment support with FedEx, UPS, and DHL
- Tested surplus and refurbished options
- 12-month warranty on every module
- Technical verification before dispatch
- Support for obsolete control systems
FAQ
- Q: Are the 8 points isolated from each other? A: Yes. All points are independent.
- Q: What loads can each point switch? A: DC 5-24 V or AC 100-240 V, up to 2 A.
- Q: Does it need external power? A: No. It draws 205 mA from the 5 V DC rack supply.
- Q: Is a surge protector built in? A: No. Add external protection for inductive loads.
- Q: What is the warranty? A: 12 months.
