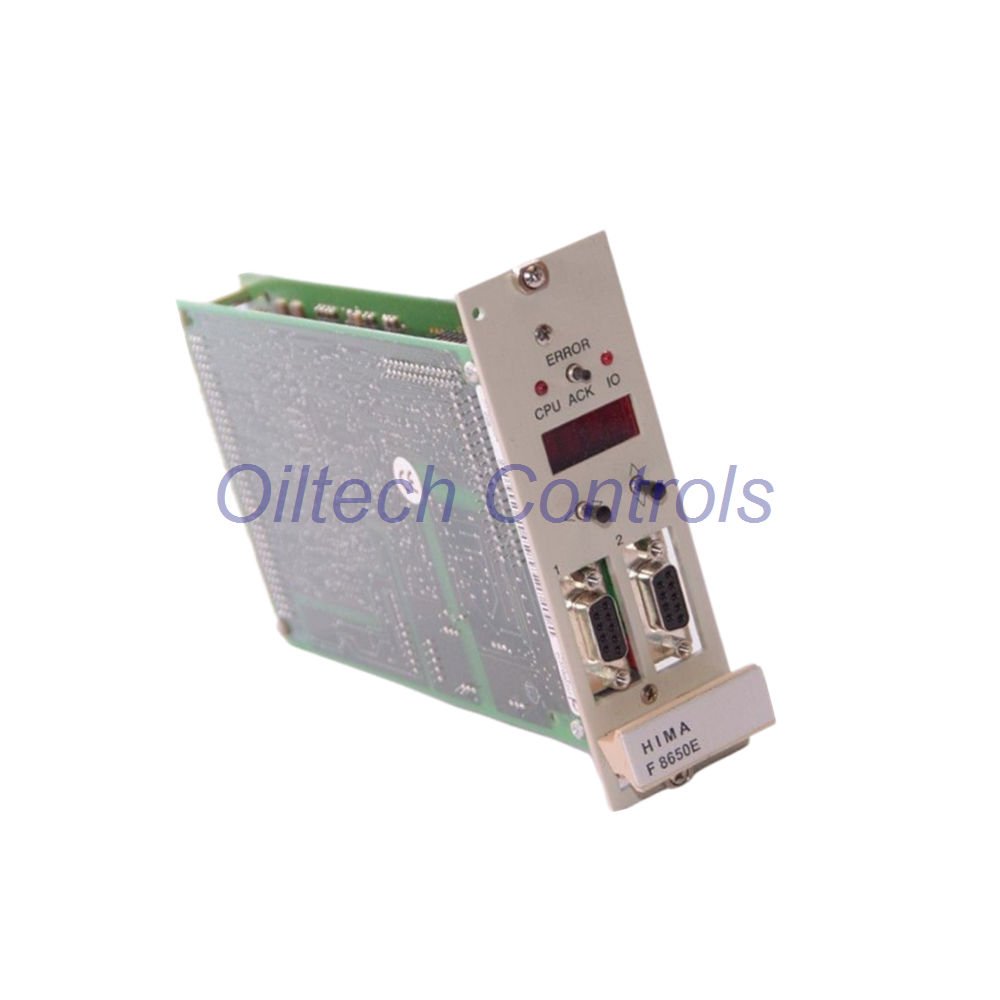

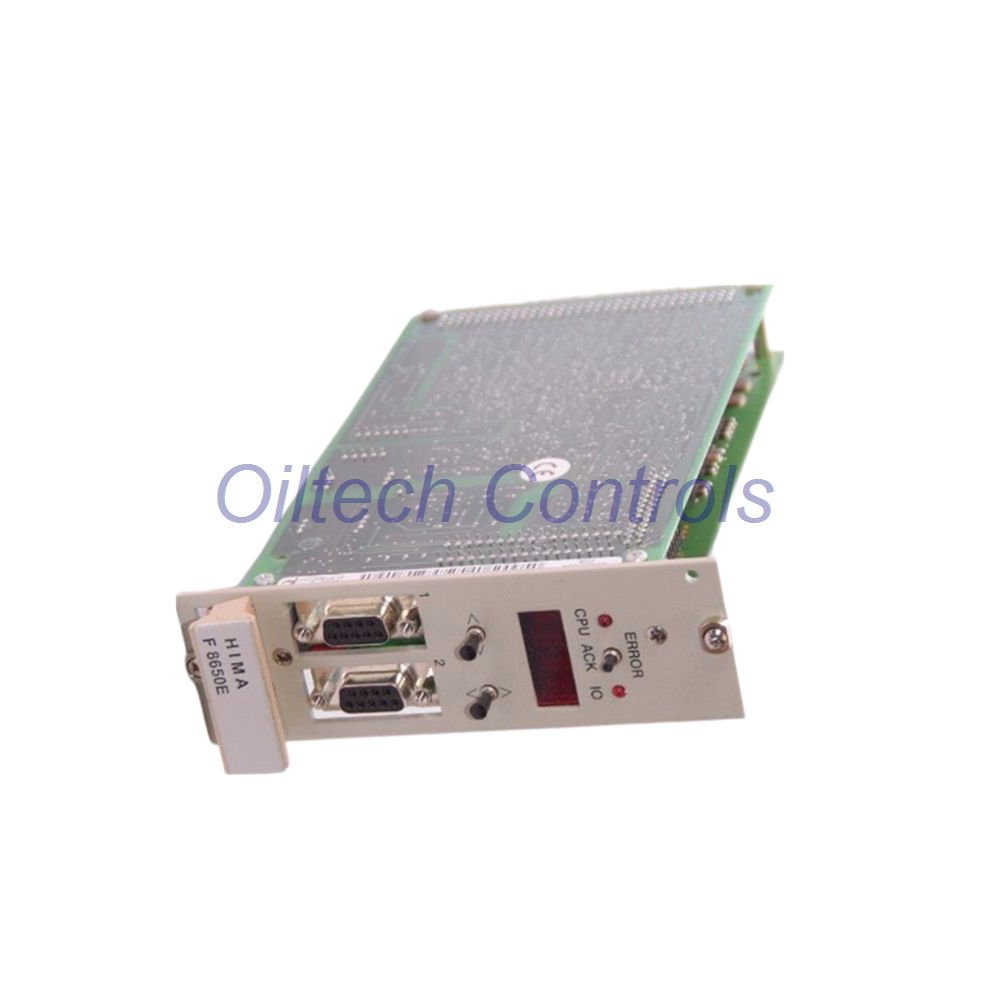

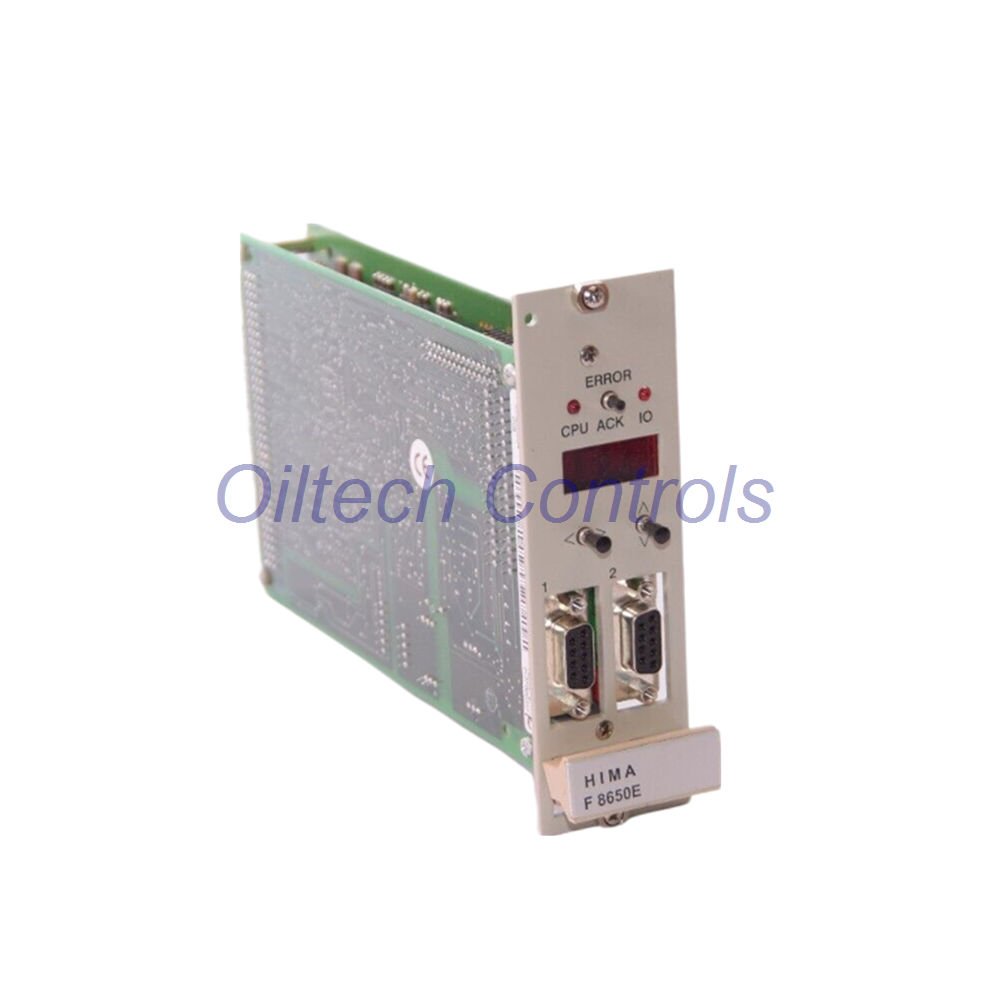

Industrial Safety CPU Module Overview
F8650E is a central safety CPU module used in industrial protection systems.
It integrates two synchronized microprocessors to ensure reliable control.
The module supports safety monitoring, system diagnostics, and fault shutdown.
Designed for continuous operation in demanding automation environments.
Core Processing Architecture
- Central processor module for industrial safety systems.
- Dual microprocessor design increases reliability.
- Two clock-synchronized processors operate simultaneously.
- Microprocessor model: Intel 386EX.
- 32-bit architecture improves processing capability.
- Clock frequency: 25 MHz.
- Stable computing for safety logic execution.
Memory Configuration
- Operating system stored in Flash-EPROM.
- Operating system memory capacity: 1 MB.
- User program memory: 1 MB Flash-EPROM.
- Data storage memory: 1 MB SRAM.
- Memory utilization depends on system firmware.
- High-speed access ensures fast control response.
System Communication Interfaces
- Two serial communication interfaces available.
- Communication type: RS-485.
- Electrical isolation protects system electronics.
- Supports industrial data exchange.
- Reliable communication for distributed safety systems.
Diagnostic and Monitoring Features
- Integrated four-digit matrix diagnostic display.
- Display shows system status and fault codes.
- Selectable diagnostic information.
- Quick troubleshooting for maintenance engineers.
- Helps reduce system downtime.
Safety Protection Functions
- Built-in safety watchdog protection.
- Automatic shutdown on system fault.
- Safety output voltage: 24 V.
- Maximum load current: 500 mA.
- Short-circuit protected safety output.
- Designed for critical protection applications.
Electrical and Operating Requirements
- Main supply voltage: 24 VDC.
- Operating current consumption: 500 mA.
- Logic power supply: 5 V.
- Logic current requirement: 2 A.
- Stable operation under industrial power conditions.
Mechanical Construction
- Two European standard printed circuit boards.
- Dedicated PCB for diagnostic display.
- Compact rack-mount design.
- Space requirement: 8 SU.
- Designed for control cabinet installation.
Additional Engineering Advantages
- High reliability safety processing platform.
- Industrial grade electronic components.
- Optimized system watchdog monitoring.
- Fast response for safety shutdown.
- Long service life in continuous operations.
- Stable performance in automation safety systems.
Typical Application Areas
- Emergency shutdown systems.
- Industrial safety control systems.
- Oil and gas production facilities.
- Power generation safety systems.
- Chemical plant protection systems.
Shipping Methods
- FedEx international priority delivery.
- UPS worldwide express shipping.
- DHL fast global logistics.
- Secure industrial packaging included.
Warranty Policy
- 12-month warranty after delivery.
- Covers manufacturing defects.
- Technical assistance available during warranty.
- Professional support for installation questions.
Frequently Asked Questions
- What is the main function of the F8650E CPU module?
- The module processes safety logic and supervises system operation.
- Why does this module use two microprocessors?
- Dual processors increase reliability and allow safety verification.
- What should engineers check before installation?
- Confirm rack compatibility, power supply capacity, and communication wiring.
- How does the watchdog improve system safety?
- It monitors system health and shuts down outputs when faults occur.
- How to choose the correct safety CPU module?
- Check processor speed, memory size, and interface compatibility.
