Product Overview

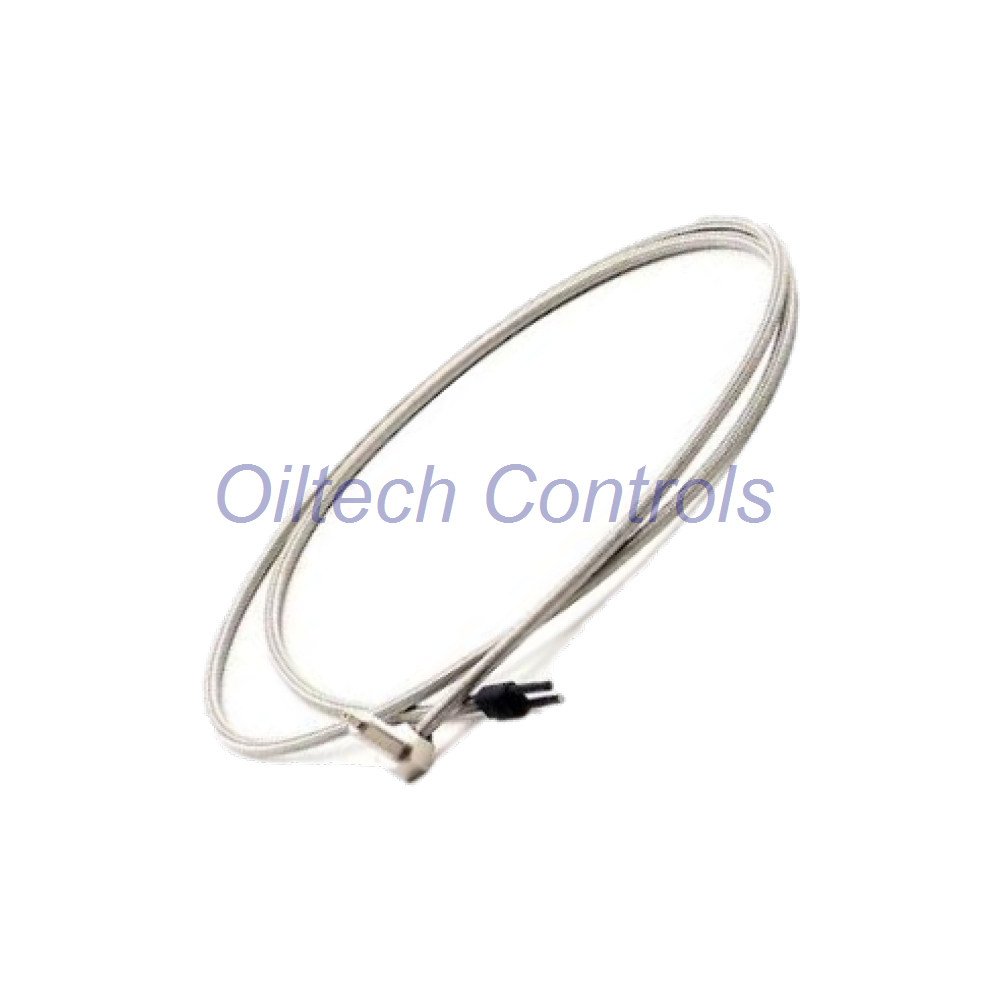

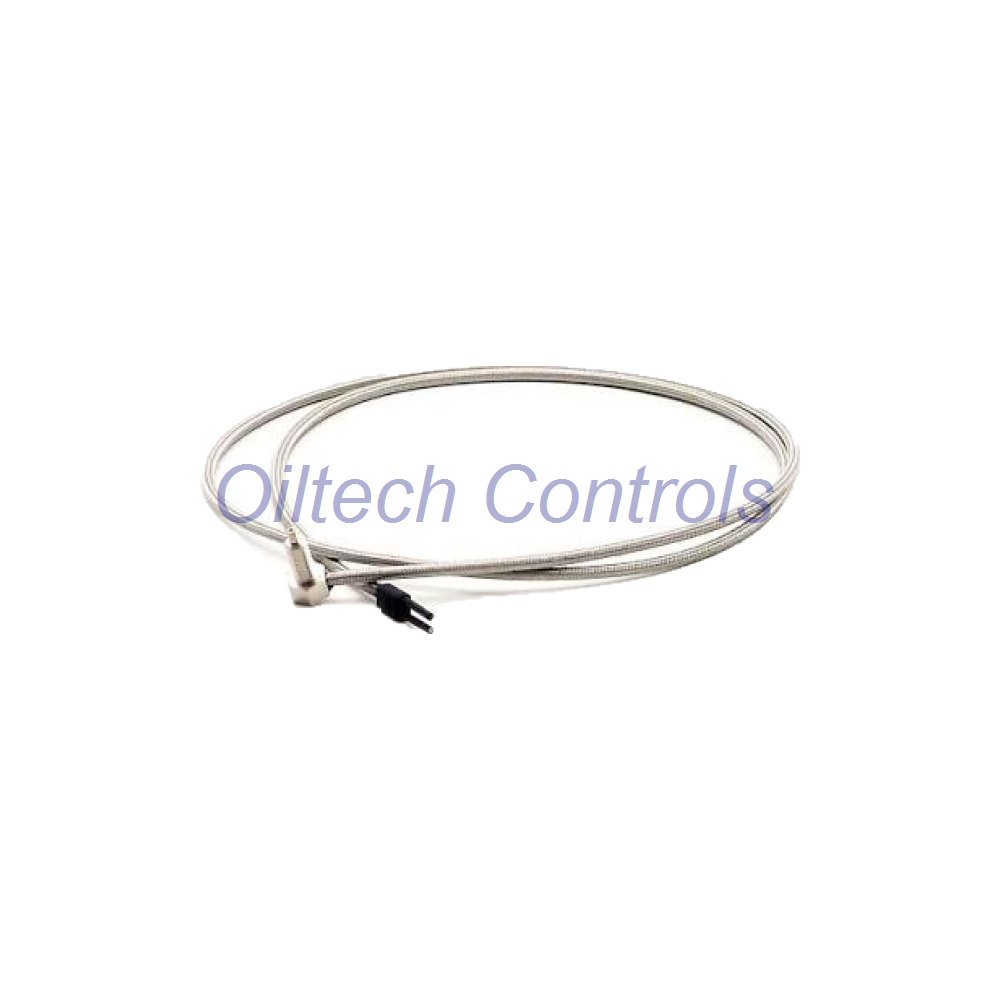

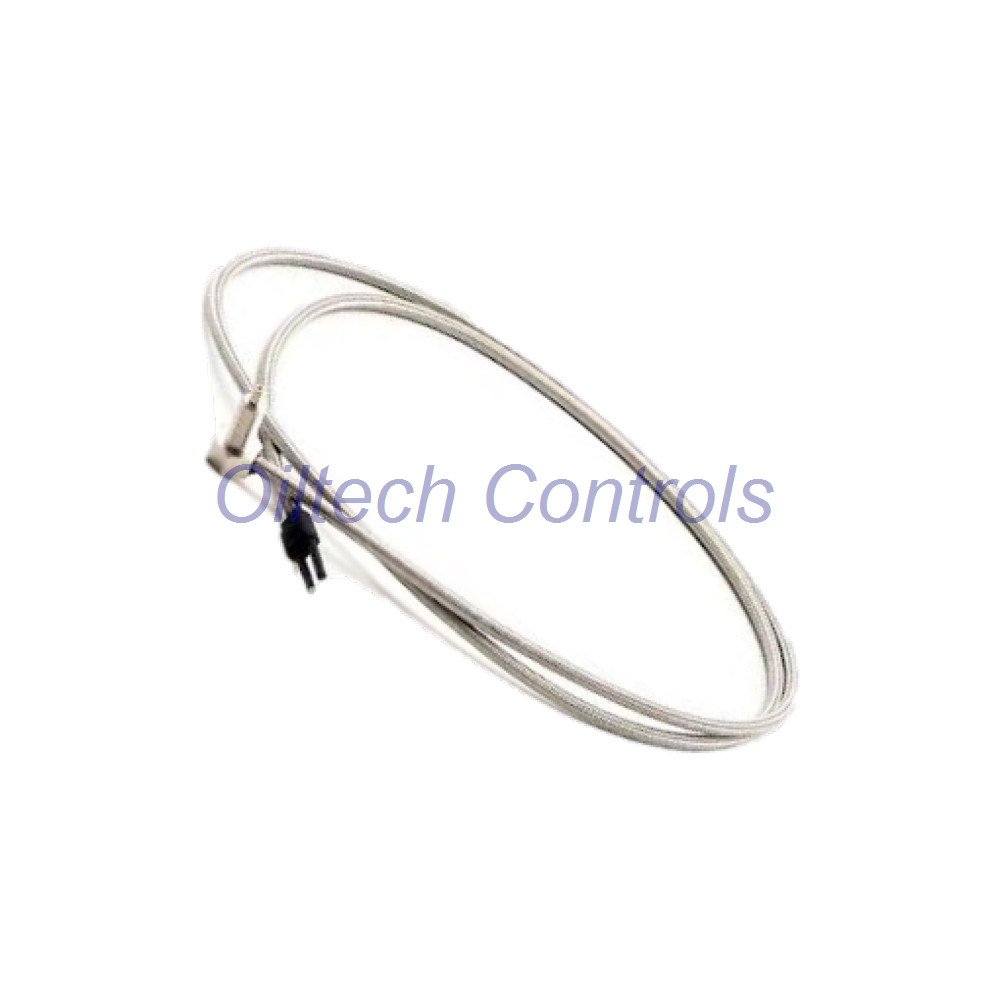

The Keyence FU-35TG is a coaxial reflective fibre unit built for precise, small-spot detection in tight spaces. Its M6 threaded body and stainless steel construction handle harsh industrial environments. The 1 m fibre length cannot be cut, ensuring stable optical performance. This unit detects gold wire as thin as 0.005 mm, making it ideal for micro‑assembly and semiconductor tasks.
Technical Specifications
| Brand | Keyence |
| Model | FU-35TG |
| Series | Reflective Fibre Unit |
| Module Type | Coaxial Fibre Optic Sensor |
| Size | M6 |
| Detection Arrangement | Coaxial |
| Fibre Unit Length | 1 m (39.37 in) – cannot be cut |
| Shape | Threaded |
| Minimum Bend Radius | R10 mm (0.394 in), stainless |
| Minimum Detectable Object | Gold wire Ø 0.005 mm (0.0002 in) |
| Temperature Range | -40 to +50 °C (-40 to 122 °F) |
| Environmental Resistance | Ambient temperature only (no humidity rating) |
| Weight | Approx. 32 g |
Installation Guide
- Mount the M6 threaded body into a standard bracket or tapped hole.
- Keep bend radius ≥ R10 mm to avoid fibre damage.
- Do not cut the 1 m fibre. Cutting changes optical properties.
- Align the coaxial tip with the target for best signal.
- Use stainless housing for washdown or corrosive areas.
Debugging and Maintenance
- Check fibre tip for dust or oil. Clean with lint‑free swab and alcohol.
- Verify amplifier gain settings after installation.
- Inspect bend radius regularly. Sharp bends cause signal loss.
- No user‑serviceable parts inside. Replace if damaged.
Compatibility Notes
Works with Keyence fibre amplifiers (e.g., FS‑N, FS‑V series). The coaxial arrangement suits reflective detection of shiny or micro targets. Not compatible with through‑beam fibre units. Stainless over‑tube protects against mechanical stress.
Certification Information
CE marked. RoHS compliant. Manufactured under Keyence quality standards. Contact us for specific certificates.
Packing List
- 1x Keyence FU-35TG fibre unit
- 1x protective cap
- 1x datasheet (digital)
Warranty and Shipping
12‑month warranty against manufacturing defects. Ships via FedEx, UPS, or DHL. Tracking provided. Orders ship within 1‑2 business days after technical verification.
Typical Applications
- Semiconductor wire bonding
- Micro‑component presence detection
- Small hole verification
- Gold wire breakage monitoring
- Precision assembly lines
Diagnostic Capability
Detects 0.005 mm gold wire with high repeatability. Coaxial optics reduce false triggers from side reflections. Stable at temperatures from -40 to +50 °C. Stainless housing resists EMI in most industrial settings.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support via FedEx, UPS, DHL
- Tested industrial surplus / refurbished options available
- 12‑month warranty on every unit
- Technical verification before shipment – we test each fibre
- Support for obsolete control systems – hard‑to‑find parts
FAQ
Q: Can I cut the fibre to length?
No. The 1 m length cannot be cut. Cutting ruins optical performance.
Q: What is the smallest detectable object?
0.005 mm gold wire (0.0002 in).
Q: Does it work with any Keyence amplifier?
Yes, with standard Keyence fibre amplifiers (FS‑N, FS‑V, etc.).
Q: What is the warranty?
12 months from date of shipment.
