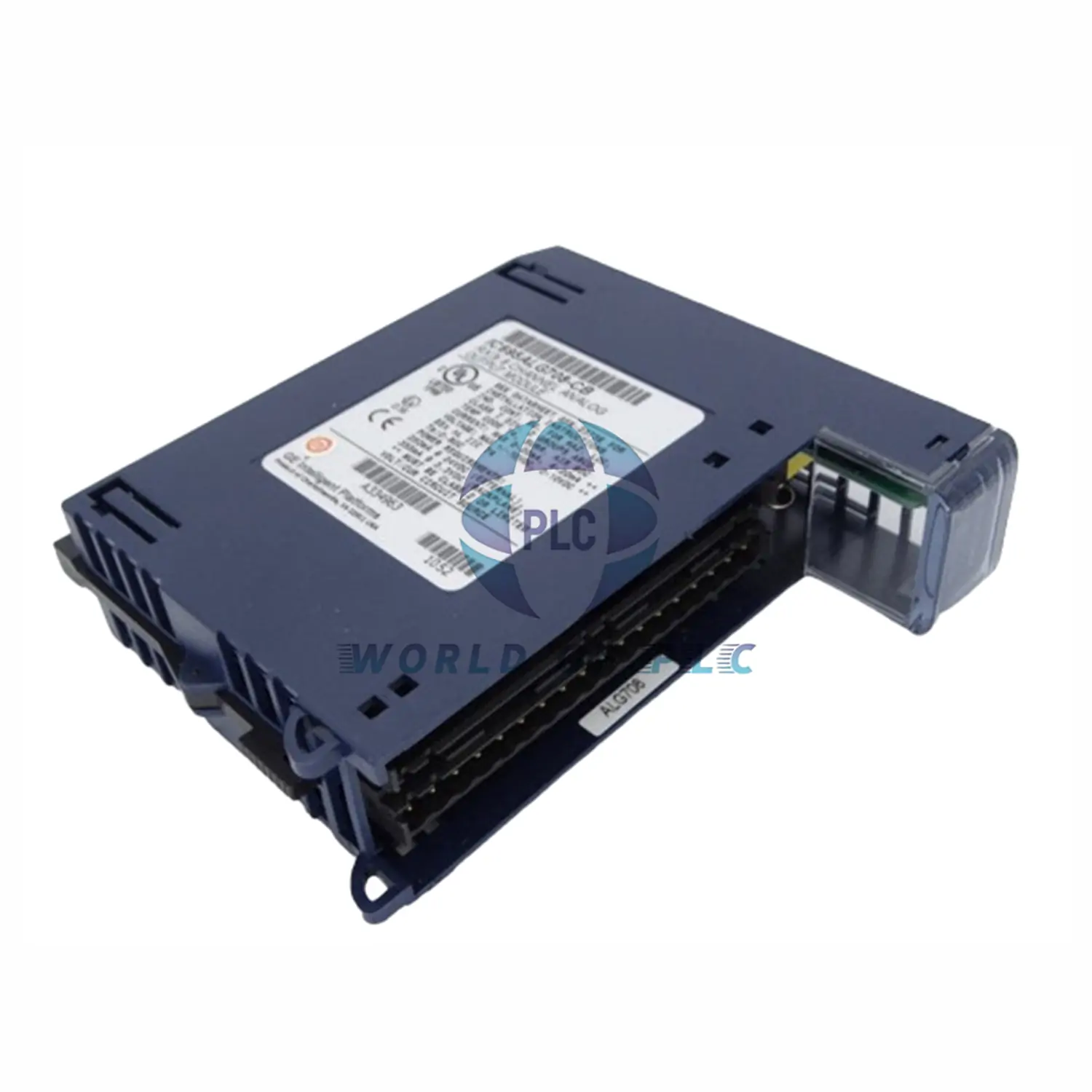

IC695ALG728: Emerson PACSystem RX3i 8-Channel HART Analog Output Module
Smart Industrial Output Control
Formerly GE Intelligent Platforms, now Emerson Automation. This 8-channel analog output module supports HART 5.0 protocol for smart device communication. Delivers precise voltage (±10V/0-10V) and current (0-20mA/4-20mA) signals. Perfect for process control systems needing remote diagnostics.
Technical Specifications
| Brand | Emerson (ex-GE Fanuc) |
| Model | IC695ALG728 (Full suffix: IC695ALG728-HA) |
| Output Signals | ±10VDC, 0-10VDC, 0-20mA, 4-20mA |
| Resolution | 15.9 bits (0-20mA), 15.6 bits (4-20mA), 14.9 bits (voltage) |
| Accuracy | ±0.15% @25°C, ±0.30% @60°C |
| HART Support | Version 5.0 with 2 modems (4 channels each) |
| Update Speed | 8ms (standard), 16ms (with HART) |
| Response Time | 2ms (voltage), 23-70ms (current w/HART) |
| Power | 24VDC external (19.2-30V), 250mA max |
| Temp Range | 0°C to 60°C |
Easy Installation
- Fits any RX3i rack slot
- Connect to 24VDC power (19.2-30V range)
- Use terminal blocks: IC694TBB032 or IC694TBS132
- No jumpers needed – software configurable
Works With
- All PACSystems RX3i CPUs
- Logic Developer Machine Edition 5.0+
- HART-compatible devices (valves, transmitters)
Package Contents
- IC695ALG728 module
- Mounting hardware
- User manual
Shipping & Support
Shipped worldwide via FedEx, UPS, DHL in 1-3 days. 12-month warranty included.
FAQs
Q: Can I use HART on all 8 channels?
A: Yes! Two built-in modems support four channels each.
Q: Minimum update speed for current outputs?
A: 8ms without HART, 16ms with HART enabled.
Q: Works with old GE systems?
A: Yes, compatible with all RX3i systems since 2015.
